IP30 Environmental Monitoring Sensor IOT LoRa Electric Fire Monitor ISO/IEC 9001
| Place of Origin | Hubei ,China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1, ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Electrical fire monitor(LoRa) |
| Minimum Order Quantity | Negotiable |
| Price | EXW US$ 20-80/set |
| Packaging Details | 20pcs/carton |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 2000 set/week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Frequency Band | CN470 | Wireless Modulation Mode | LoRa Modulation |
|---|---|---|---|
| Battery Life | 5 Years | IP Protection Grade | IP30 |
| Three-phase Voltage | 100~500V | Input Power | AC220V 50Hz |
| High Light | IP30 Environmental Monitoring Sensor,ISO/IEC 9001 Environmental Monitoring Sensor,LoRa Electric Fire Monitor |
||
Product Description

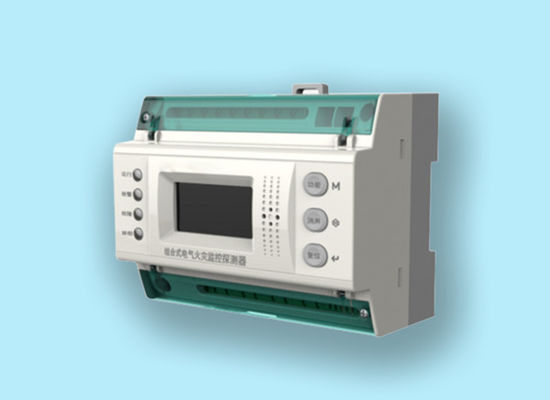

TIMEWAVE Smart IOT Electrical fire monitor(LoRa)
Product Overview
The combined electrical fire monitoring detector is based on the electrical fire monitoring system. In combination with the Internet of Things, real-time data monitored will be uploaded to the cloud platform in a timely and effective manner through new generation information technologies such as big data and cloud computing. The platform monitors, counts, analyzes and shares information on the collected data. This combined electrical fire monitoring detector mainly monitors residual current, over-current, temperature, voltage, arc, etc.
Main parameters of the product
|
Monitoring equipment
|
Heartbeat cycle | The default is once every 10 minutes. |
| Temperature test range | 0~150℃ | |
| Residual current | 0~1000mA | |
| three-phase voltage | 100~500V | |
| three-phase current | 0~100A,3000:1 open close type transformer | |
| Detection channel | Two circuit residual current detection, three circuit temperature detection | |
|
Communication mode
|
Frequency band | CN470 |
| Uplink communication mode | LoRa modulation | |
| Downlink communication mode | Multi wire system | |
|
Communication protocol
|
LoRaWAN | |
|
Input port
|
Two residual currents/temperatures, three temperatures, one three-phase voltage channel and one three-phase current channel; 220V terminal blocks; 485 communication port. | |
| Output port | Switch output port | |
| Empty transport distance | 485 communication < 500m | |
| Physical environment | Working voltage | 220V |
| Power consumption | < 3W | |
|
Others
|
Adjustment accuracy (temperature and current) | 1℃,1mA |
| Alarm loudness | Not less than 70dB at 1m | |
| Working temperature | (-10~60)℃ | |
| Operating humidity | (10~93)%RH | |
| Installation method | Standard guide rail type, screw fixed installation | |
| IP protection grade | IP30 |
