Wall Mounted Smart Plug Socket Mobile NFC Configuration LoRaWAN

Place of Origin China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type TW2397-CZ
Minimum Order Quantity Negotiable
Price EXW price US$ 50-200/ set
Packaging Details Customizable packaging
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 1500 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Smart Socket Installation Wall-mounted
Input Voltage 100~250VAC,50~60Hz Rated Load 10A/2500W;16A/4000W
Size 86×90×42mm Warranty 1.5 Years Guarantee
High Light

NFC Configuration Smart Plug Socket

,

LoRaWAN Smart Plug Socket

Leave a Message
Product Description

LoRaWAN Wall-mounted Smart Socket Modern Plug Mobile NFC configuration Long communication distance



  • Product Overview

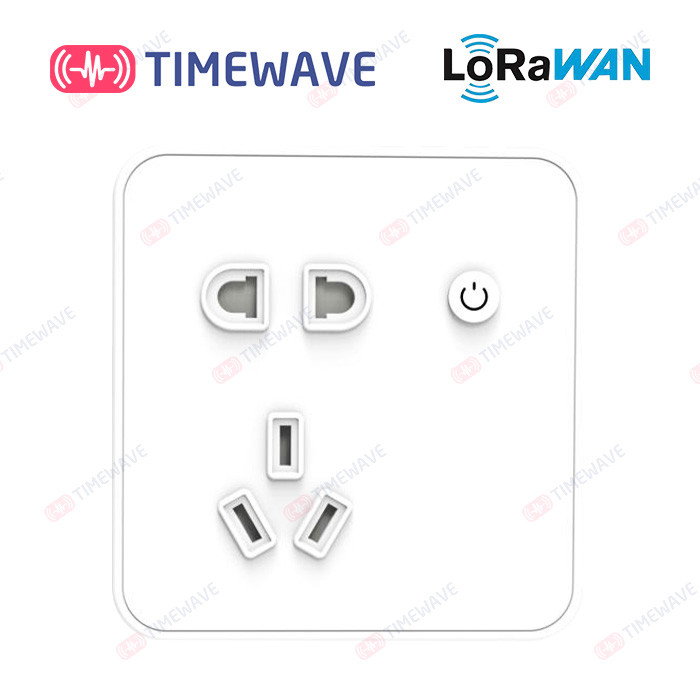

TW2397-CZ is a simple and nice-looking 86 wall-mounted smart socket panel. The product integrates power on/off control and elec statistics functions. Realize intelligent management of elec appliances and scientific use of electricity. TW2397-CZ has rich power on/off control modes.
In addition to local key control, it supports wireless LoRaWAN networking communication to realize remote control. It can be combined with
the LoRaWAN gateway and the "TimeWave Cloud" energy supervision platform to realize scene control by linking with other intelligent devices. Suitable for installation into wall.It can be widely used in smart home office, campus and other application scenarios.

  • Functions and features
1. Flexible control mode: Support local key, delayed task, scene linkage, remote control and other on/off control modes.
2. Multicast function: Support grouping management of sockets and batch control of power on/off of sockets.
3. Power statistics: Collect the power consumption of equipment and monitor the energy consumption of equipment.
4. Overload protection: Real-time monitoring of electrical parameters. Be able to make early warning and decision for abnormal conditions.
5. Long communication distance: The communication distance can reach 15 kilometers in an empty environment.
6. Easy to use: support cellphone NFC fast configuration.
7. Good compatibility: Compatible with standard LoRaWAN gateway and third-party net server platform. Support for ad hoc networks.
8. Management integration: It can quickly connect with the LoRaWAN gateway and the "TimeWave Cloud" energy supervision platform.
    No additional configuration is required.

  • Specifications & technical parameters
Elec parameters Socket specification

National standard 5-hole 10A/3-hole 16A (optional),

with safety door

Input voltage 100~250VAC,50~60Hz
Rated load 10A/2500W;16A/4000W
Software function Power on/off control Support remote control/scene linkage/delayed task/local control, etc
Multicast function Support 4 multicast groups
Elec parameter collection

Voltage (V), current (mA), power (W), power factor (%),

power consumption (kWh)

Protection mechanism Overcurrent protection/alarm
Intelligent locking Support locking local switch button
Automatic recovery Support to keep the last working state after restart
Wireless parameters Communication protocol Standard LoRaWAN protocol
Operating frequency CN470,RU864,IN865EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels
Transmit frequency 19dBm
Receiving sensitivity -137dBm@300bps
Net access/working mode OTAA/ABPClassC

Interface &

Configuration



Switch button One
Indicator One. Green
Configuration method NFC (Mobile App)
Working temperature -20℃ ~60℃
Working humidity 10%~90% (no condensation)
Protection grade IP20
Color

White (customizable)

Material PC+ABS
Installation method Wall-mounted






  • TRANSPORTATION AND STORAGE

Ammeters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and shall be transported and stored according to GB / T 25480-2010 Basic Environmental Conditions for Instrument Transportation and Storage and Test Methods as stipulated in 2010. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.
