IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication

  • IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication
Place of Origin Hubei ,China
Brand Name TimeWave
Certification ISO/IEC 20000-1, ISO/IEC 27001,I SO/IEC 9001
Model Number Single lamp controller(LoRa)
Minimum Order Quantity Negotiable
Price EXW US$ 20-80/set
Packaging Details 20pcs/carton
Delivery Time 3-5 weeks after receive the payment
Payment Terms T/T, L/C
Supply Ability 2000 set/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Temperature 0～50℃ Wireless Modulation Mode LoRa Modulation
Battery Life 5 Years IP Protection Grade IP64
Working Voltage 3.6V Input Power AC220V 50Hz
High Light

LoRa Smart Door Magnet

,

LoRaWAN Smart Door Magnet

,

IOT LoRa Door Magnet
Leave a Message
Product Description

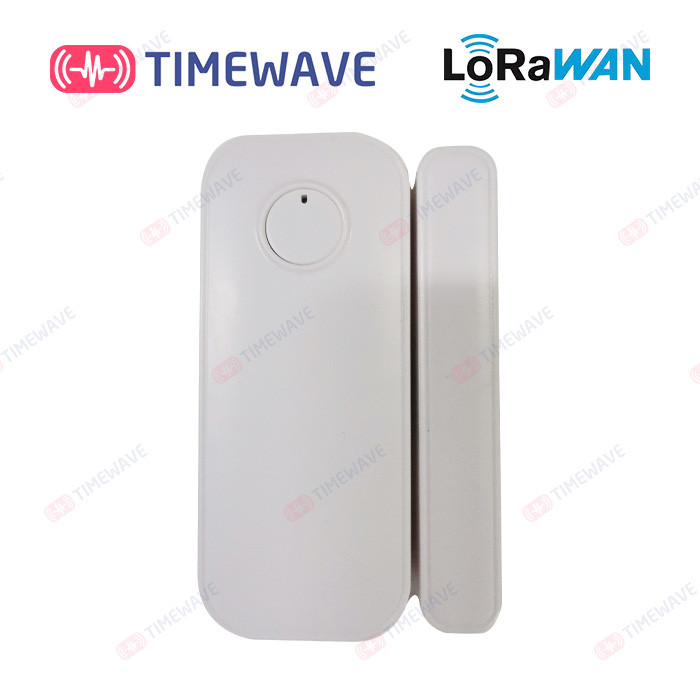

TIMEWAVE Smart IOT Door magnet(LoRa)

IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication 0

Product Overview
LoRa wireless door magnet is a wireless door magnet that adopts LoRa communication technology and supports LoRaWAN wireless communication standard. It can realize remote door opening alarm, door closing prompt, door and window forgetting to close reminder and other functions. Compared with WiFi and Bluetooth door magnets on the market, this door magnet has significant advantages in communication distance, standby time (power consumption) and networking capacity.
IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication 1
Product features
1. Comply with LoRaWAN wireless communication standard, and the transmission distance can reach 1-2 km. Ultra low power consumption, sustainable use for 1 year.
2. It supports remote deployment and removal, and is easy to manage.
3. Replaceable battery design, simple maintenance.
4. The double-sided adhesive tape is applied to the doors and windows for convenient installation.
Main parameters of the product

Basic
specifications
 Operating frequency band 470MHz/433MHz
Channel bandwidth 125kHz
Transmitting power 17dBm
Transmission distance 5km(Depending on time and distance)
Receiving sensitivity -132 dBm @(SF=11,125KHz)
Communication standards LoRaWAN
Encryption mode AES128
Power Supply 2 No. 7 AAA batteries (replaceable)
Working hours 1 year
Indicator light The flashing green indicator indicates that the normal operation information is reported. The flashing yellow indicator indicates that the alarm information is reported.
Heartbeat interval 12h (the default value is configurable)
Alarm interval Emergency alarm (remind that doors and windows are not closed): 30s. General alarm (undervoltage, etc.): 2 h. The above are default values, which can be configured and adjusted.
Multi function button One click deployment and disarm.
Size 95*54*20mm(包含磁柱)
Other specifications Working temperature -10℃~50℃
Operating humidity <95%



IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication 2IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication 3IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication 4IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication 5
