Wireless Environmental Monitoring Sensor High Sensitivity IOT Remote Lamp Controller
| Place of Origin | Hubei ,China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1, ISO/IEC 27001,I SO/IEC 9001 |
| Model Number | Single lamp controller(LoRa) |
| Minimum Order Quantity | Negotiable |
| Price | EXW US$ 20-80/set |
| Packaging Details | 20pcs/carton |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 2000 set/week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 0～50℃ | Wireless Modulation Mode | LoRa Modulation |
|---|---|---|---|
| Battery Life | 5 Years | IP Protection Grade | IP64 |
| Working Voltage | 3.6V | Input Power | AC220V 50Hz |
| High Light | Environmental Monitoring Sensor Wireless,High Sensitivity Environmental Monitoring Sensor,IOT Remote Lamp Controller |
||
Product Description

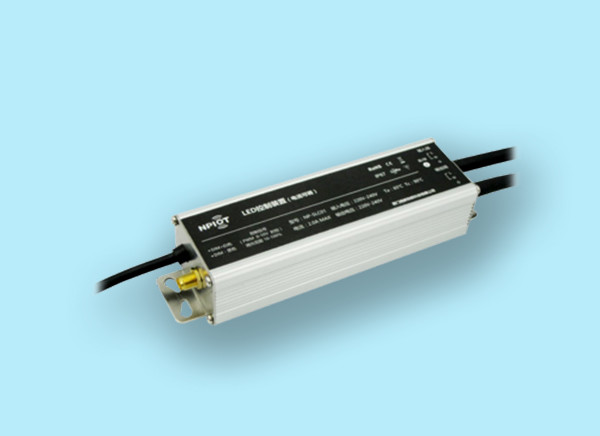

- TIMEWAVE Smart IOT Single lamp controller(LoRa)
- Product Overview
The LoRa single lamp controller is designed for road and area lighting. LoRaWAN wireless communication technology is adopted to realize the interconnection of control equipment and monitoring center. Users can easily realize unified management of street lamp public lighting through mobile phones or computers. Achieve the "trinity" effect of remote lighting monitoring, intelligent management and control, energy conservation and consumption reduction.
Product features
1. Status monitoring and alarm;
2. Time control strategy;
3. Remote management;
4. High sensitivity;
5. Wireless transmission;
6. Stable performance: no field wiring is required. The communication links and failure points are reduced. Improved stability and reliability.
Main parameters of the product
| Communication | Communication mode | LoRaWAN |
| Communication frequency band | 470MHz-510MHz | |
| Transmitting power | ≥1.5km | |
|
Electric
|
Input power | AC220V 50Hz |
| Output power | AC220V50Hz/ DC.12~75V. Rated output current is 10A | |
| Static power consumption | <0.8W | |
| Power consumption | <1.5W | |
|
Characteristic
|
Electric parameter acquisition | Voltage, current, power factor and other parameters |
| Dimming mode | PWM parameter 2kHz1-99% 1% resolution ② 0-10V | |
| Normal operating temperature | -40℃~+85℃ | |
| Storage and transportation temperature | -40℃~+80℃ | |
| Other | Overall dimensions | 122mm*39.2mm*28.1mm |
