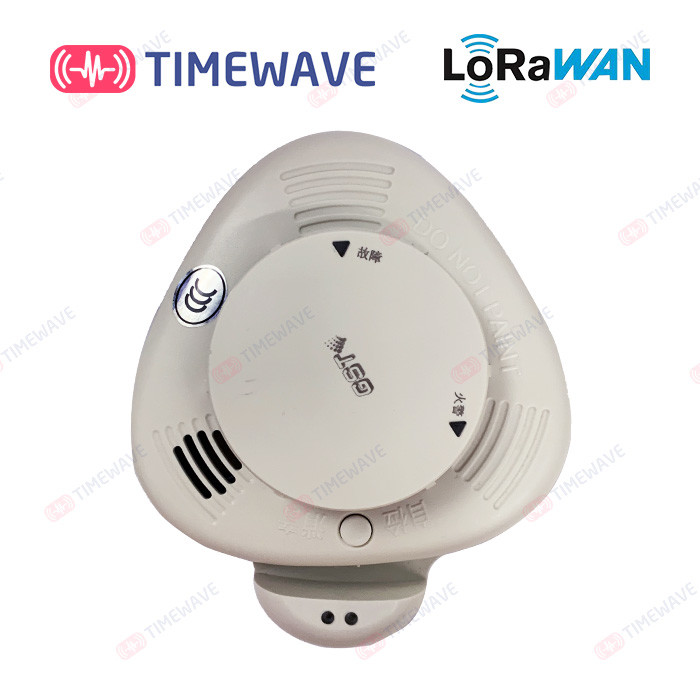

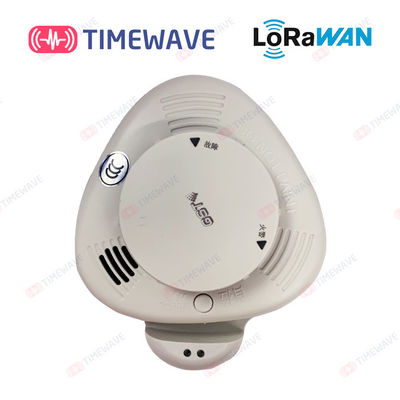

Pedestal Wireless Smoke Detector High Sensitivity LoRa Smoke Detection Alarm

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Minimum Order Quantity Negotiable
Packaging Details Customizable packaging
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Smoke Detector Battery Life 5 Years
Net Weight 300g Package Carton
Installation Ceiling Dimension 110mm In Diameter×70mm High
Highlight

OEM Wireless Smoke Detector

,

High Sensitivity Wireless Smoke Detector

,

Pedestal Smoke Detection Alarm

Leave a Message
Product Description

Pedestal Wireless Smoke Detector High Sensitivity LoRa Smoke Detection Alarm 0

LoRa Pedestal Wireless Smoke Detector High Sensitivity 5 Years Lithium Battery Smoke Detection Alarm



Product Overview

The base type wireless smoke detector is composed of intelligent wireless base and various independent photoelectric smoke fire detection alarms. The alarm information that the smoke sensor can send includes fire, fault, undervoltage, self-inspection and other information. They are universal, extensible and readable with the communication protocol adopted by the upper layer.



Main parameters







    Sensor





Heartbeat cycle

The default is 12h (the smoke detector self-inspection information is sent according to the heartbeat message type. It is used to test the connectivity between the base and the smoke detector.There is no priority and reporting interval)
Monitoring area 60~100㎡
Installation method Ceiling







   Wireless

Frequency CN470
Modulation mode LoRa modulation
Communication protocol LoRaWAN

Open Distance

Typical application environment, covering a radius of 2km (there is a wall between the smoke detector and the gateway)

  Operating

environment



Operating voltage

Flashing light indicates alarm

Operating temperature

-10~+50℃

Operating humidity

≤95%RH(non condensation)

Net weight

300g

Battery life

5 years

Outline specification

110 mm diameter, 70 mm high (including base)
