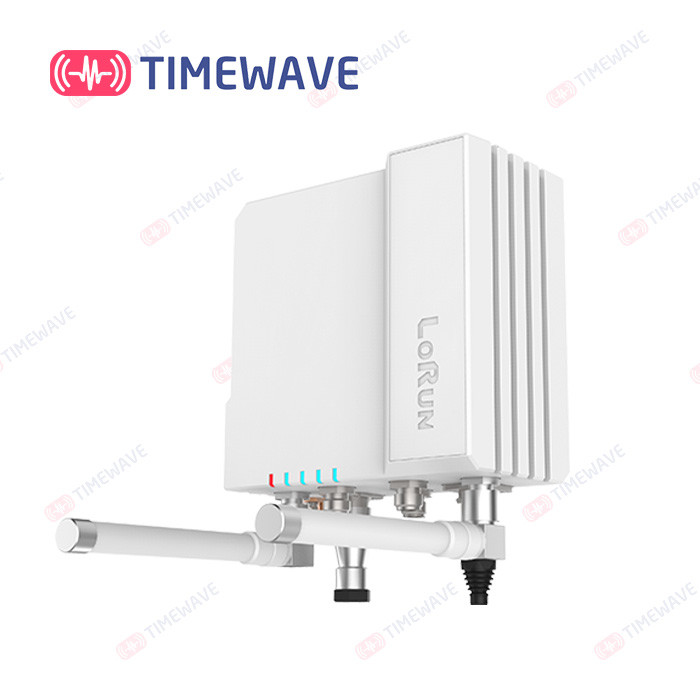

IoT Advanced Metering Infrastructure Intelligent Gateway IP30 ADC12 Aluminum

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type G500
Minimum Order Quantity Negotiable
Price EXW price US$ 100-200/ set
Packaging Details Customizable packaging
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 1000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Grade IP30 Weight 2.2kg
Color Platinum Material ADC12 Aluminum
High Light

Intelligent Advanced Metering Infrastructure

,

IP30 Advanced Metering Infrastructure

Leave a Message
Product Description

Brief Introduction

IoT Intelligent gateway G500 is a series of low power, low cost, long distance, wireless transmission IoT gateway based on LoRaWAN protocol, specially used for: high communication requirements, strong anti-jamming ability, high sensitivity, low power consumption, many access nodes and scattered characteristics of terminal equipment, and suitable for outdoor thunderstorm weather and other characteristics. It can be widely used in urban management, urban construction and transportation, command community park, modern agriculture, industry, mining and other fields.



Features

  • Up to 15km communication distance
  • Receiving sensitivity up to - 140dBm
  • Multi-gateway network alternate
  • WiFi-based configuration management
  • IP66 waterproof rating
  • Versatile Backhaul Options:4G/Ethernet



Interface Introduction

IoT Advanced Metering Infrastructure Intelligent Gateway IP30 ADC12 Aluminum 0



Specifications & parameters

Physical characteristics
Protection grade IP66
Structure size(H.W.D) 178mm*178mm*100mm
Weight 2.2kg
Color Platinum
Material ADC12 aluminum
Installation type Holding pole type, Attaching wall type
Working temperature -40~85℃
Working humidity 0-90% RH
Heat dissipation mode Natural heat dissipation (no fan)



Electrical characteristics
Processor ARM Cortex A8/1GHz
Memory 512MB
Flash 4GB



External interface
Ethernet RJ45 YT Push buckle type
GPS antenna interface N-type waterproof joint
RF Antenna Interface N-type waterproof joint
WIFI antenna interface N-type waterproof joint
4G antenna interface N-type waterproof joint
Sim card slot Sim card push
USB Micro usb
COM Micro usb



GPS
Positioning time service Built-in GPS module
Location mode GPS, Beidou
