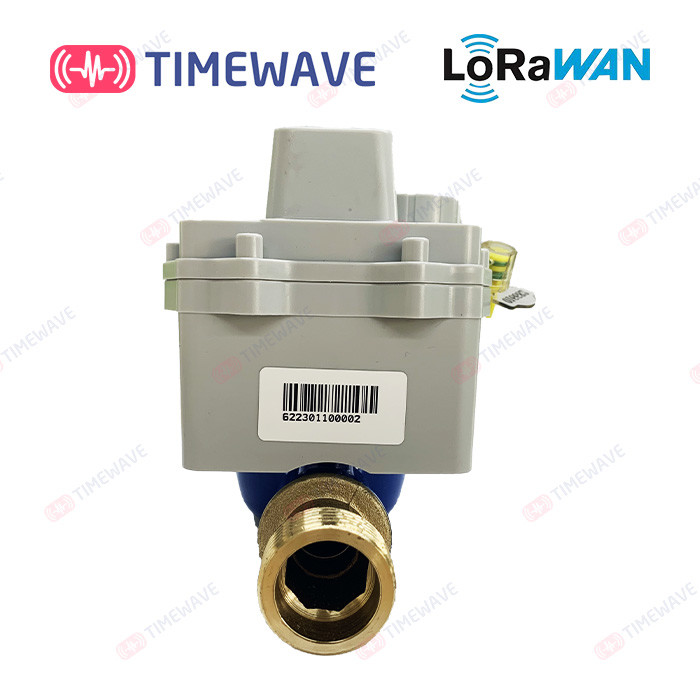

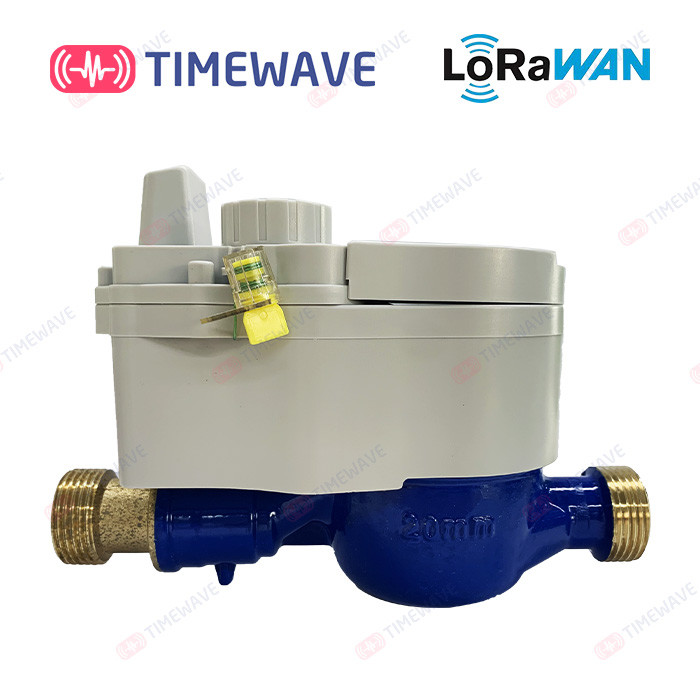

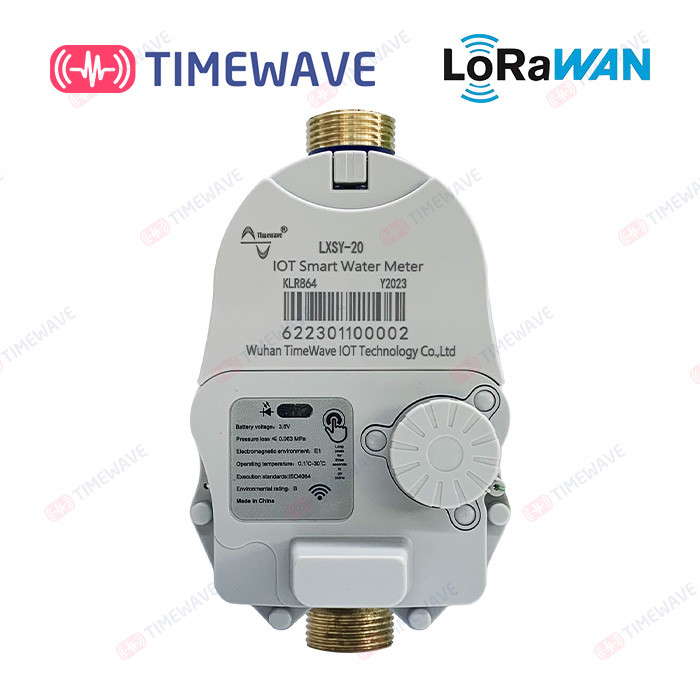

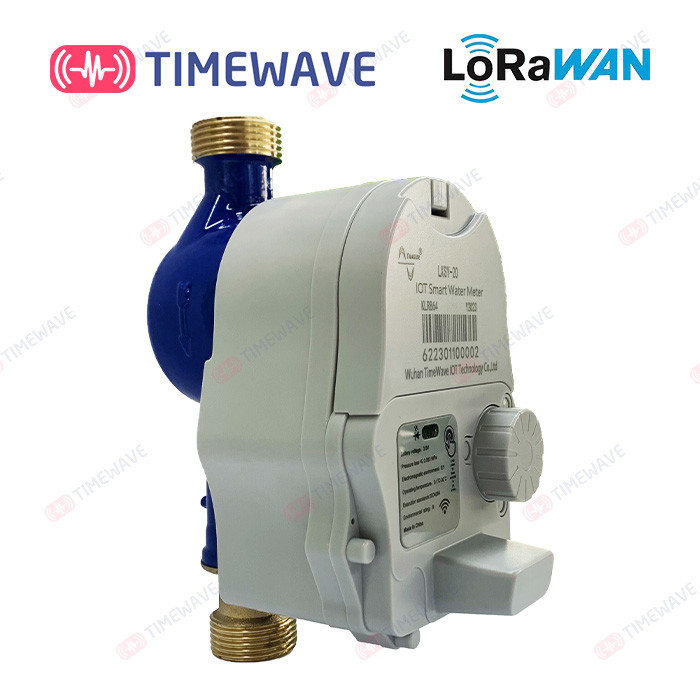

LoRaWAN Remote Water Meter Horizontal Wireless Remote Monitoring Water Meter
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type LXSY-TW |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 60-150/ set |
| Packaging Details | Customizable packaging |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LoRaWAN Water Meter | Installation | Horizontal Installation |
|---|---|---|---|
| Nominal Diameter(mm) | 15,20,25 | Display | LCD Screen |
| Temperature | Hot Or Cold | Warranty | 1.5 Years |
| Highlight | LoRaWAN Remote Water Meter,Horizontal Remote Water Meter,Wireless Remote Monitoring Water Meter |
||
Product Description
LoRaWAN Smart Water Meter Wireless Communication with Remote Monitoring and Consumption Analysis
- Product Overview
1. LoRaWAN IoT water meter is composed of water meter base meter, electric ball valve (valve control), magnetoresistive sensor,
MCU,wireless communication module, control circuit and other components. Mechanical and electrical separation structure design.
High capacity lithium sub battery pack is used for power supply. It provides long-term stable energy guarantee for data acquisition,
valve control and wireless data transmission.
2. This water meter is of dry structure. The dry water meter is isolated from the measured water due to its counting mechanism.
Therefore, it is not affected by the suspended impurities in the water to ensure the normal operation of the counting mechanism
and the clear reading. At the same time, it will not, like the wet water meter, affect the reading of the water meter due to the fog
or condensation under the glass caused by the temperature difference between inside and outside the meter.
- Functions and features
1. Accurate measurement: Non-contact full-electronic detection logic is adopted. The metering accuracy is 10 liters.
2. It has the functions of touching the key to wake it up and long press key to go online and transmit data remotely.
3. It has infrared communication interface. Relevant parameters can be read and set.
4. It has alarm functions: Abnormal state battery voltage and valve, continuous small and large flow, metering module failure,etc.
5. Timed collection and upload function:Collect data timed. Auto upload data at the set time point (once a day by default).
Meanwhile, it can receive and execute instructions from the platform.
- Specifications & technical parameters
| Flow characteristics | Comply with GB/T 778.1~3-2007 standard. Accuracy Class: Class 2 | ||
| Nominal caliber (mm) | 15 | 20 | 25 |
| Overload flow Q4(m3 /h) | 3.1 | 5.0 | 7.8 |
| Commonly used flow Q3(m3 /h) | 2.5 | 4.0 | 6.3 |
| Maximum allowable error | high area (Q2≤Q≤Q4) is ± 2%, the low area (Q1≤Q<Q2) is ± 5% | ||
| R=Q3/Q1 | 100 (Dry Type) | Quiescent current | <10uA | |
| Range ratio | Q2/Q1=1.6 Q4/Q3=1.25 |
|
Data collection and generating currents <50mA, and peak current <100mA |
|
| Pressure loss level | △ p≤0.063MPa | |||
| Maximum allowable water pressure | ≤1.2MPa | Operating environment | 0~ +45℃ (cold water),0~95%RH 0~ +90℃ (hot water),0~95%RH | |
| Temperature grade | Cold:T30 Hot:T90 | |||
| Communication mode |
LoRaWAN:CN470,RU864,IN865, EU868,US/AU915,KR920,AS923_ 1/2/3/4,Custom Channels |
Oprating voltage |
2.7 ～ 3.6 V |

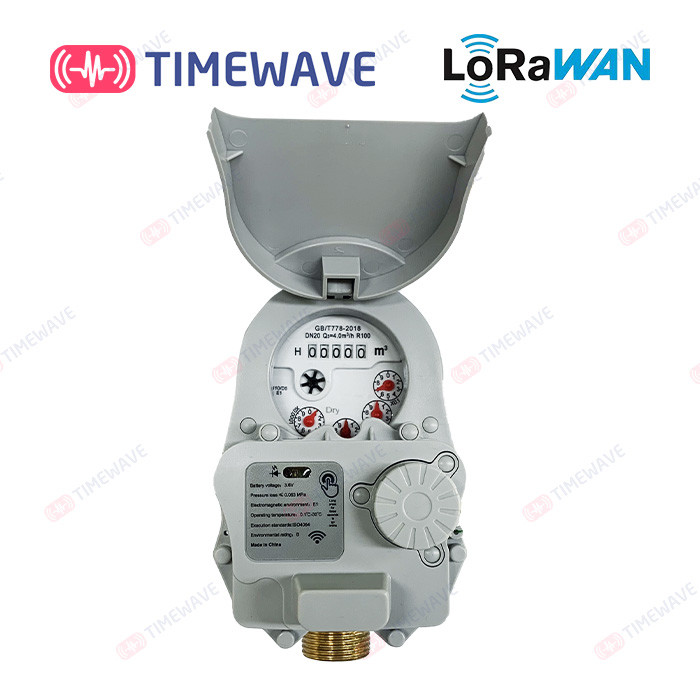

- Display description
Under normal conditions, the water meter will automatically go online once a day (settable). Upload the water meter data
to the system platform through wireless communication. At the same time, receive and execute the relevant instructions
of the system platform (parameter setting, valve control, etc.).
In order to prevent malicious people from triggering the water meter online for many times (loss of battery power). We have specifically set the time interval (5 minutes) between keys triggering the launch, that is, the time interval between two consecutive launches must be greater than 5 minutes. At the same time, it stipulates that the number of times that a key is pressed to trigger the launch cannot be greater than 8 times per day (the launch command of infrared communication setting is not affected by this number of times). When the water meter is closed, press the trigger button for 3 seconds for the first time every month. The water meter valve will be opened, and 3m ³ water can be used for overdraft. When the overdraft is 3m ³ is used up, the water meter will automatically close the valve.
- Overall dimension (unit: mm)
| Model |
Nominal diameter |
L(mm) |
B(mm) |
H(mm) |
Junction pipe |
Nut |
| LXSY-15 |
15 |
165 |
90 |
106 |
R1/2 |
G3/4 |
| LXSY-20 |
20 |
195 |
90 |
108 |
R3/4 |
G1 |
| LXSY-25 |
25 |
225 |
96 |
130 |
R1 |
G11/4 |
- Precautions
1. Water meters should be checked frequently to prevent water meter leakage accidents;
2. In winter, it is necessary to prevent the water meter from freezing and bursting. Installing insulation measures to the water meter when necessary;
3. When the home is not occupied for a long time, should close the valve in front of the table to prevent water leakage accidents;
4. Water meter is a measuring product and shall not be destroyed. Destroying water meter is an illegal action.
