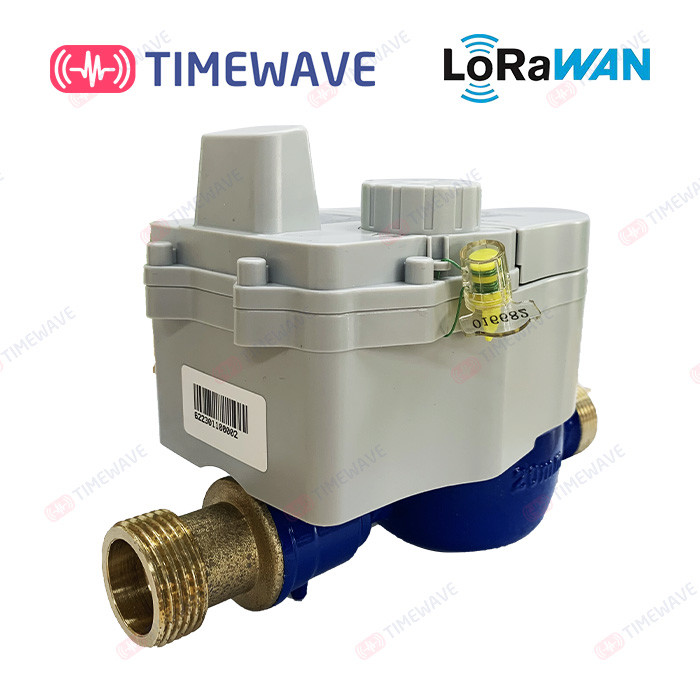

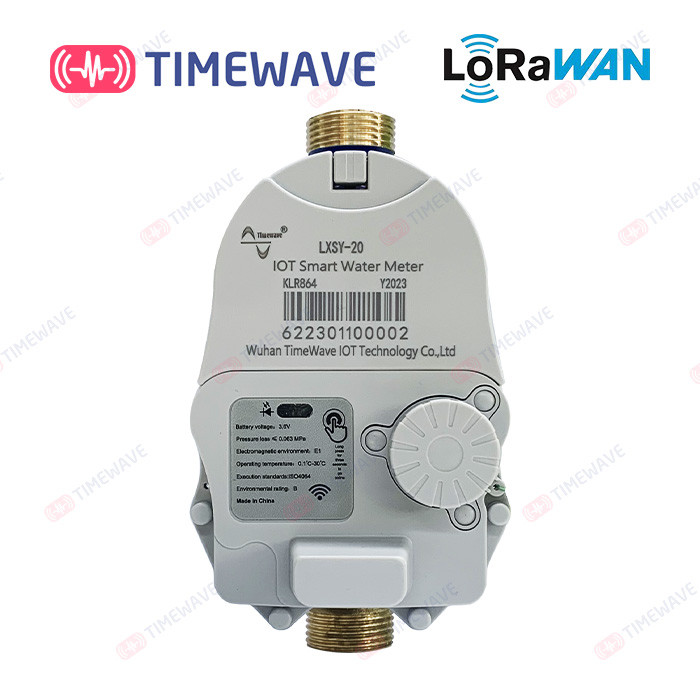

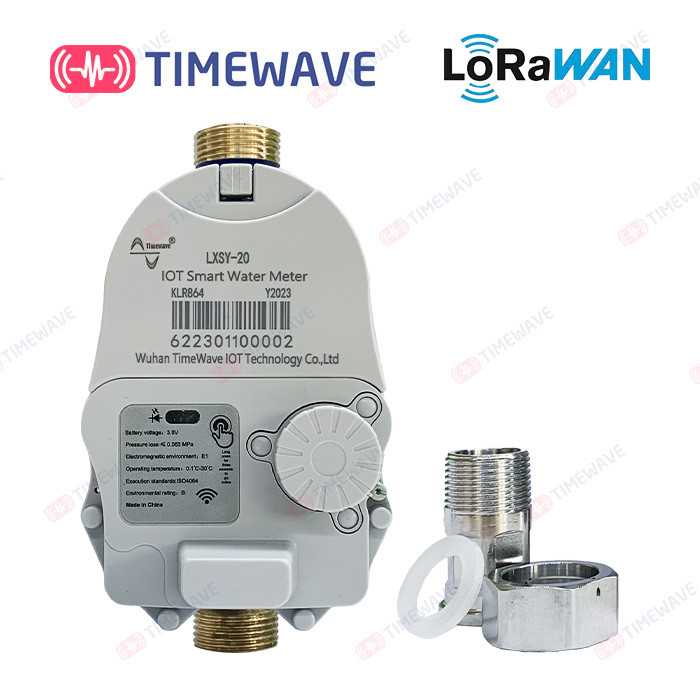

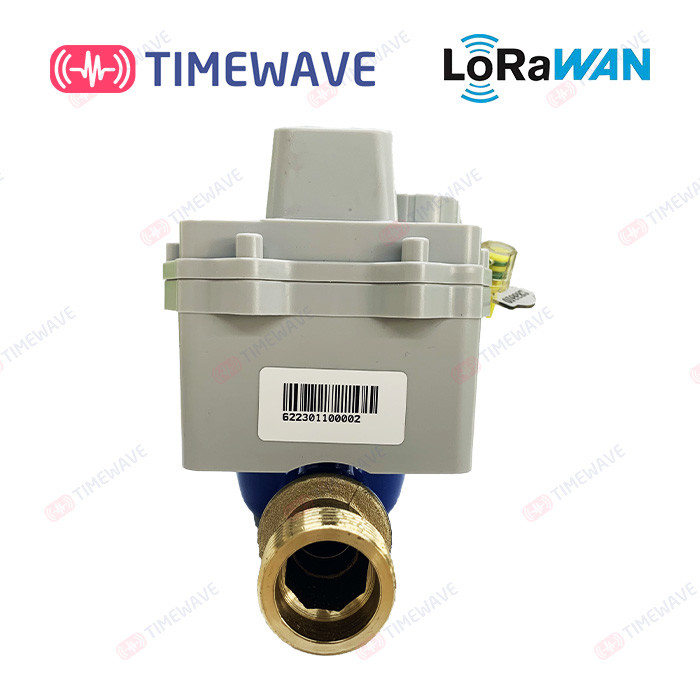

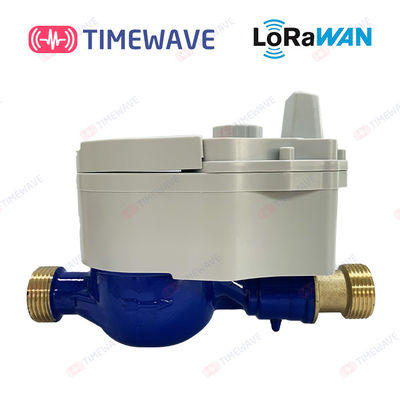

LoRaWAN Intelligent Water Management System Wireless Water Consumption Meter

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type LXSY-TW
Minimum Order Quantity Negotiable
Price EXW price US$ 80-500/ set
Packaging Details Customizable packaging
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 2000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Water Meter Display LCD Screen
Nominal Diameter(mm) 15,20,25 Installation Horizontal
Temperature Cold/Hot Application Civil And Industrial
High Light

LoRaWAN Intelligent Water Management System

,

LoRa Intelligent Water Management System

,

LoRaWAN Water Consumption Meter

Leave a Message
Product Description

LoRaWAN Intelligent Water Meter for Effective Water Consumption Management Wireless Communication

  • Product Overview

LoRaWAN IoT water meter is composed of water meter base meter, electric ball valve (valve control), magnetoresistive sensor,
MCU, wireless communication module, control circuit and other components. Mechanical and electrical separation structure design.
High capacity lithium sub battery pack is used for power supply. It provides long-term stable energy guarantee for data acquisition,
valve control and wireless data transmission. LoRaWAN wireless communication module is adopted. Through the spread spectrum communication technology, the user water data is actively uploaded (once a day by default) to the LoRa WAN gateway. The gateway
will upload to the system data service center through LTE 4G network or Ethernet. The system has the advantages of long communication distance, large capacity, fast and convenient installation, long service life, etc.


  • Functions and features

1. Split structure: The electronic unit is independent from the base table.

2. Accurate measurement: non-contact full-electronic detection logic is adopted. The metering accuracy is 10 liters.
3. It has the functions of touching the key to wake it up and long press key to go online and transmit data remotely.
4. It has infrared communication interface. Relevant parameters can be read and set.
5. It has alarm functions: Abnormal state battery voltage and valve, continuous small and large flow, metering module failure,etc.
6. Timed collection and upload function:Collect data timed. Auto upload data at the set time point (once a day by default). Meanwhile,
it can receive and execute instructions from the platform.
7. Auto switching of reporting mode: When the on-site signal is abnormal, it will auto switch to monthly mode. While it's recovered,
it will auto resume the daily mode.
8. LP design: 3.6V lithium sub-battery pack (ER26500+HPC1520) is adopted. Sleep current is less than 10uA.

  • Specifications & technical parameters
Flow characteristics Comply with GB/T 778.1~3-2007 standard. Accuracy Class: Class 2
Nominal caliber (mm) 15 20 25
Overload flow Q4(m3 /h) 3.1 5.0 7.8
Commonly used flow Q3(m3 /h) 2.5 4.0 6.3
Maximum allowable error high area (Q2≤Q≤Q4) is ± 2%, the low area (Q1≤Q<Q2) is ± 5%



R=Q3/Q1 100 (Dry Type)   Quiescent current <10uA
Range ratio Q2/Q1=1.6 Q4/Q3=1.25 Communication current

Data collection and generating currents <50mA,
and peak current <100mA
Pressure loss level △ p≤0.063MPa
Maximum allowable water pressure ≤1.2MPa Operating environment 0~ +45℃ (cold water),0~95%RH 0~ +90℃ (hot water),0~95%RH
Temperature grade Cold:T30 Hot:T90
Communication mode

LoRaWAN:CN470,RU864,IN865,

EU868,US/AU915,KR920,AS923_

1/2/3/4,Custom Channels

Oprating voltage 2.7 ~ 3.6 V



  • Display description

LoRaWAN Intelligent Water Management System Wireless Water Consumption Meter 0

In order to prevent malicious people from triggering the water meter online for many times (loss of battery power). We have specifically
set the time interval (5 minutes) between keys triggering the launch, that is, the time interval between two consecutive launches must
be greater than 5 minutes. At the same time, it stipulates that the number of times that a key is pressed to trigger the launch cannot
be greater than 8 times per day (the launch command of infrared communication setting is not affected by this number of times).


  • Overall dimension (unit: mm)

LoRaWAN Intelligent Water Management System Wireless Water Consumption Meter 1

Model Nominal diameter

L(mm)

B(mm)

H(mm)

 Junction pipe

Nut

LXSY-15

15

165

90

106

R1/2

G3/4

LXSY-20

20

195

90

108

R3/4

G1

LXSY-25

25

225

96

130

R1

G11/4



  • Precautions
◆ Water meters should be checked frequently to prevent water meter leakage accidents;
◆ In winter, it is necessary to prevent the water meter from freezing and bursting. Installing insulation measures to the water meter
   when necessary;
◆ When the home is not occupied for a long time, should close the valve in front of the table to prevent water leakage accidents;
◆ Water meter is a measuring product and shall not be destroyed. Destroying water meter is an illegal action.
