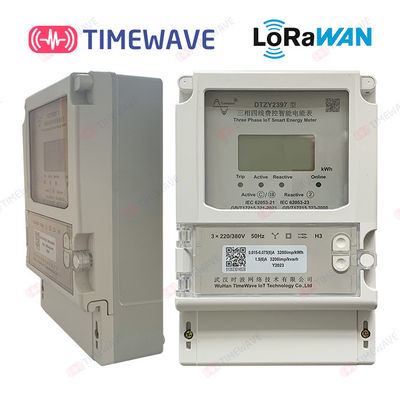

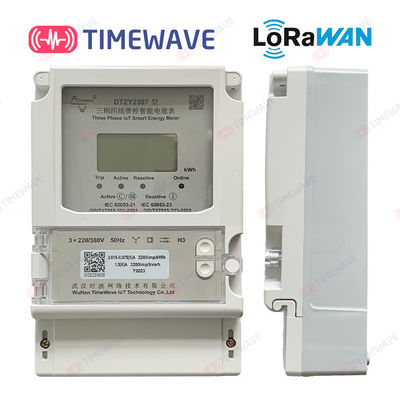

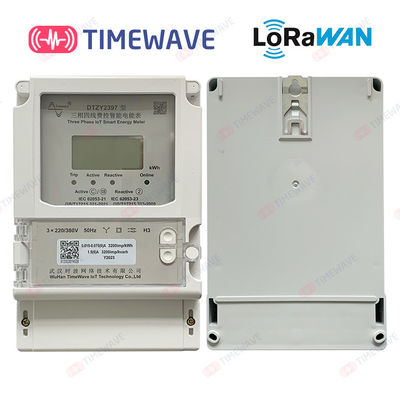

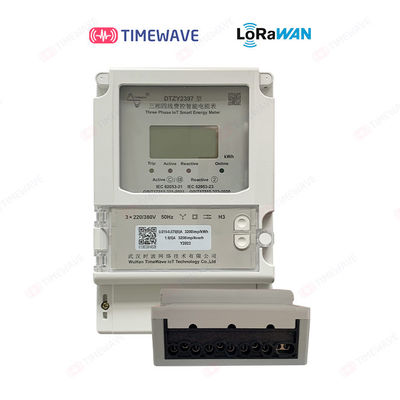

LoRaWAN Wireless Energy Meter 3 Phase Smart Energy Meter 220v Kwh Meter Home Energy Monitoring Devices
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type DTZY2397 |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 60-150/ set |
| Packaging Details | Each piece is packed in cartons, with 10 sets in each box, and the gross weight of each box is about 12kg. |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Three-phase Energy Meter | Display | LCD Screen |
|---|---|---|---|
| Operate Life | ＞10 Years | Installation Method | Direct Connected |
| Warranty | 1.5 Years Guarantee | Application | Civil/Industrial |
| Product | Single/Three Phases Smart Energy Meter | Customization | OEM/ODM |
| Standards | IEC62053-21, DL/T645-2007 | Rated Voltage Un | 220V/3*220v/380v |
| Power Grid Frequency | 50Hz | Operating Voltage | 80% Un ～ 115% Un |
| Rated Current Limit Ib | 5A | Maximum Current Imax | 80A/100A |
| Starting Current | 0.4% Ib | Connectivity Protocol | NB-iot/LoraWan |
| High Light | LoRaWAN Wireless Energy Meter,3 Phase Wireless Energy Meter,LoRaWAN 3 Phase Smart Energy Meter |
||
Product Description
LoRaWAN Three-phase Wireless Energy Meter for Advanced Energy Real-time Monitoring and Remote Control
- Product Overview
The DTZY2397 intelligent electricity meter has the functions of electric energy measurement, power parameter measurement, time-sharing measurement, real-time freezing, on-off control, LoRaWAN communication,etc.It is suitable for three-phase power consumption occasions.
- Functions and features
1. Metering positive active, negative active and ABC split phase active electric energy function. It can measure, store and display the ABC voltage, current, total and three-phase active power, total and three phase power factor, frequency and other operating parameters and status of the current watt hour meter. It has overload protection function.
2. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
3. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours(settable).
- Specifications & technical parameters
| Qualification | Three-phase direct meter | Three-phase CT meter |
| Standards | IEC62053-21, DL/T645-2007 | |
| Rated voltage | 3×220/380V | 3×220/380V |
| Operating voltage range | 80%-115% | 80%-115% |
| Rated flow limit Ib | 5A | 1.5A |
| Maximum current: Imax | 100A | 6A |
| Starting current | 0.4% Ib | 0.2% Ib |
| Power consumption | Non communication state≤1.5W , In communication state≤3W | |
| Power grid frequency | 50Hz | 50Hz |
| Frequency range | ±2% | ±2% |
| Active measurement accuracy | Class 1/B | Class 0.5, S/C |
| Reactive measurement accuracy | Class 2 | Class 2 |
| Active pulse constant | 400(imp/kWh) | 3200(imp/kWh) |
| Reactive pulse constant | 400(imp/kWh) | 3200(imp/kWh) |
| Clock precision | ±0.5S/d(23℃) | ±0.5S/d(23℃) |
| Normal operating temperature range | -40° C ～ +70° C | -40° C ～ +70° C |
| Extreme operating temperature range | -40° C ～ +70° C | -40° C ～ +70° C |
| Transportation and storage temperature range | -40° C ～ +70° C | -40° C ～ +70° C |
| Power dissipation | <1.5W ,10VA | <1.5W ,10VA |
| The time that the blackout clock preserves | >24h | >24h |
| The RS485 Interface |
The Default is 2400bps. 1200bps,2400bps,4800bps and 9600bps were available |
|
| LoRaWAN frequency |
CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels |
|

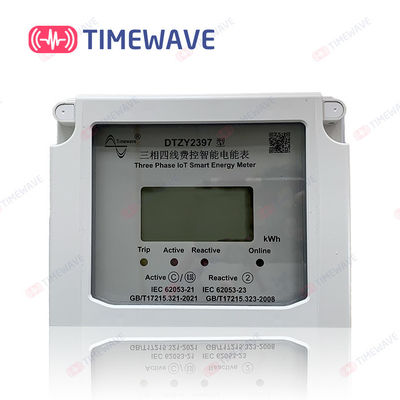

- Electricity meter display
- Display items
| No. | LCD figure | explain |
|
1 |
PREMON POS NEG ∑ T1 T2 T3 T4 |
Current and last month, forward and reverse, cumulative total electricity consumption and each rate |
| 2 |
A B C |
ABC three-phase state, electric energy, instantaneous amount indication |
| 3 |
DEMAND |
Maximum monthly demand |
| 4 |
REMAIN |
Overdraw and residual status indication |
| 5 | |
Network status indicator (none) |
| 6 |
8888:8.8:8.8 cos Φ kvarh kW kWh V A |
Data display and the corresponding unit symbol |
| 7 | |
Represents periods sets 1 and 2 |
| 8 | |
Indicates current rate status (peak valley) |
| 9 | |
Insufficient voltage indicator of Battery or supercapacitor |
| 10 | |
Three-phase voltage or current out- of-phase indicator |
-
Display DescriptionThe meter is fully displayed after power on, and then displays the total active energy kWh and total power kW in turn.
Full display Total active power Total power
LCD full screen display 0.08kWh 0.0396kW
