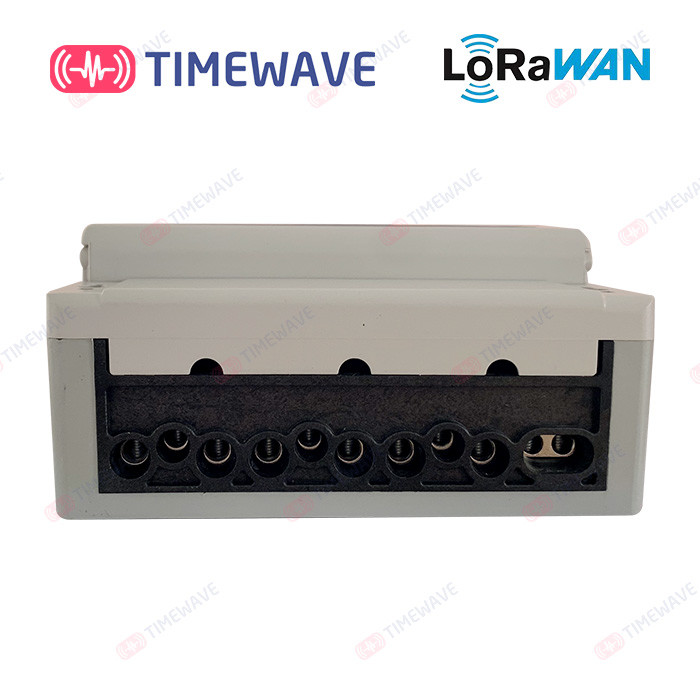

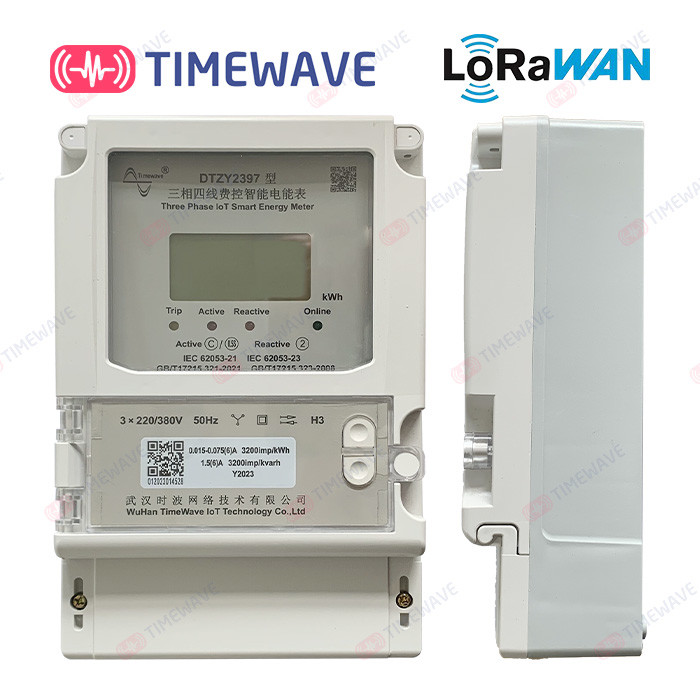

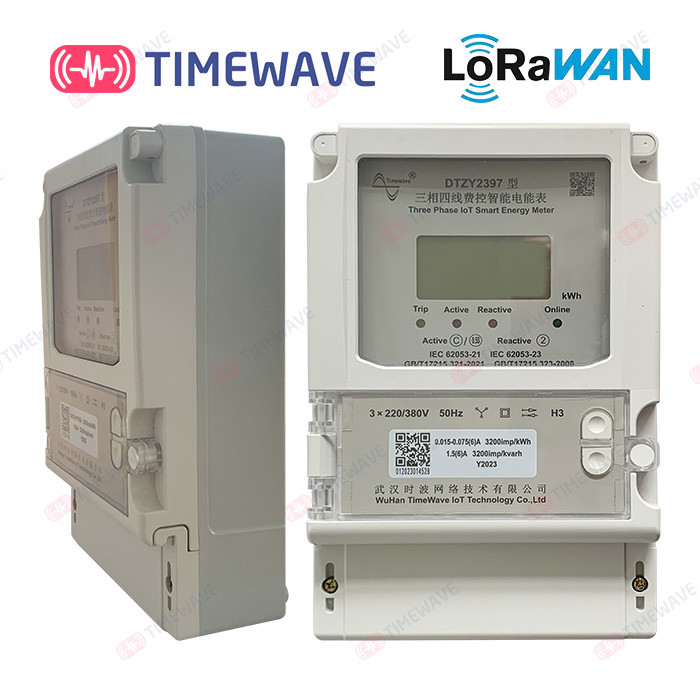

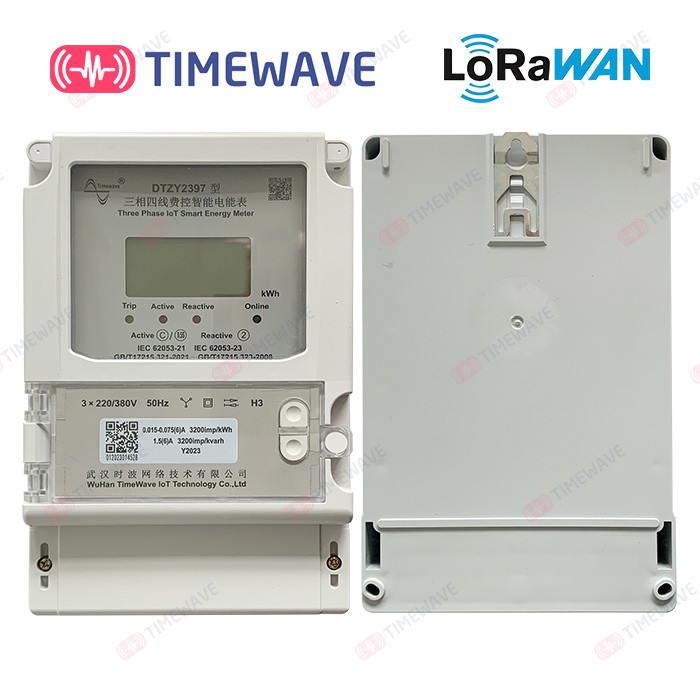

Smart Three Phase Digital Energy Meter Wireless LoRaWAN Direct Connected

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type DTZY2397
Minimum Order Quantity Negotiable
Price EXW price US$ 60-150/ set
Packaging Details Each piece is packed in cartons, with 10 sets in each box, and the gross weight of each box is about 12kg.
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 2000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Three-phase Smart Energy Meter Display LCD Screen
Operate Life >10 Years Installation Method Direct Connected
Warranty 1.5 Years Guarantee Application Civil/Industrial
Product Single/Three Phases Smart Energy Meter Customization OEM/ODM
Standards IEC62053-21, DL/T645-2007 Rated Voltage Un 220V/3*220v/380v
Power Grid Frequency 50Hz Operating Voltage 80% Un ~ 115% Un
Rated Current Limit Ib 5A Maximum Current Imax 80A/100A
Starting Current 0.4% Ib Connectivity Protocol NB-iot/LoraWan
High Light

LoRaWAN Three Phase Digital Energy Meter

,

Wireless Three Phase Digital Energy Meter

,

LoRaWAN Three Phase Smart Meter

Leave a Message
Product Description

LoRaWAN Three-phase Wireless Energy Meter for Reliable and Cost-effective Electricity Management​



  • Product Overview

The DTZY2397 intelligent electricity meter has the functions of electric energy measurement, power parameter measurement, time-sharing measurement, real-time freezing, on-off control, LoRaWAN communication,etc.It is suitable for three-phase power consumption occasions.

  • Functions and features
1. Metering positive active, negative active and ABC split phase active electric energy function. It can measure, store and display the ABC voltage, current, total and three-phase active power, total and three phase power factor, frequency and other operating parameters and status of the current watt hour meter. It has overload protection function.
2. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
3. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours(settable).

  • Specifications & technical parameters
Qualification Three-phase direct meter Three-phase CT meter
Standards IEC62053-21, DL/T645-2007
Rated voltage 3×220/380V 3×220/380V
Operating voltage range 80%-115% 80%-115%
Rated flow limit Ib 5A 1.5A
Maximum current: Imax 100A 6A
Starting current 0.4% Ib 0.2% Ib
Power consumption Non communication state≤1.5W , In communication state≤3W
Power grid frequency 50Hz 50Hz
Frequency range ±2% ±2%
Active measurement accuracy Class 1/B Class 0.5, S/C
Reactive measurement accuracy Class 2 Class 2
Active pulse constant 400(imp/kWh) 3200(imp/kWh)
Reactive pulse constant 400(imp/kWh) 3200(imp/kWh)
Clock precision ±0.5S/d(23℃) ±0.5S/d(23℃)
Normal operating temperature range -40° C ~ +70° C -40° C ~ +70° C
Extreme operating temperature range -40° C ~ +70° C -40° C ~ +70° C
Transportation and storage temperature range -40° C ~ +70° C -40° C ~ +70° C
Power dissipation <1.5W ,10VA <1.5W ,10VA
The time that the blackout clock preserves >24h >24h
The RS485 Interface

The Default is 2400bps.

1200bps,2400bps,4800bps and 9600bps were available

LoRaWAN frequency

CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,

Custom Channels

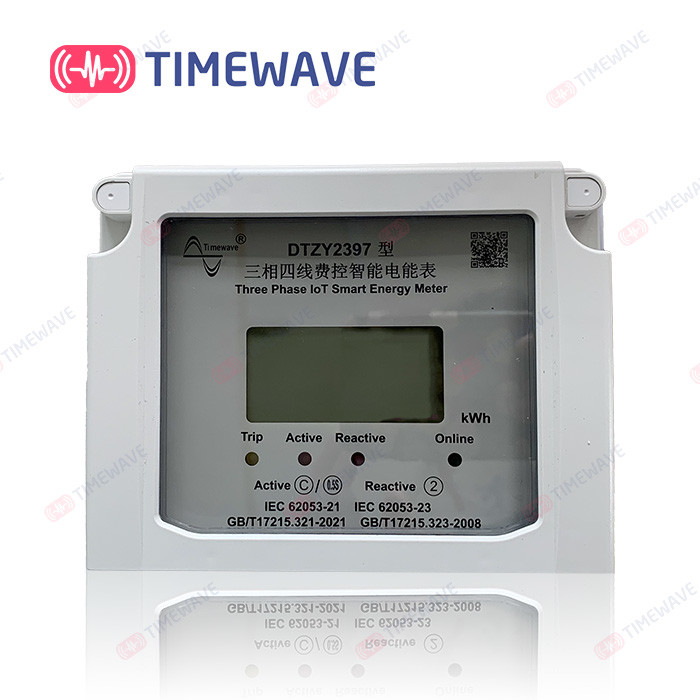

  • Electricity meter display

Smart Three Phase Digital Energy Meter Wireless LoRaWAN Direct Connected 0



  • Display items
No. LCD figure explain

1

PREMON POS NEG ∑ T1 T2 T3 T4

Current and last month, forward and reverse, cumulative total electricity consumption and each rate
2

A B C

ABC three-phase state, electric energy, instantaneous amount indication
3

      DEMAND

Maximum monthly demand
4

       REMAIN

Overdraw and residual status indication
5 Smart Three Phase Digital Energy Meter Wireless LoRaWAN Direct Connected 1 Network status indicator (none)
6

8888:8.8:8.8 cos Φ kvarh kW kWh V A

Data display and the corresponding unit symbol
7 Smart Three Phase Digital Energy Meter Wireless LoRaWAN Direct Connected 2 Represents periods sets 1 and 2
8 Smart Three Phase Digital Energy Meter Wireless LoRaWAN Direct Connected 3 Indicates current rate status (peak valley)
9 Smart Three Phase Digital Energy Meter Wireless LoRaWAN Direct Connected 4 Insufficient voltage indicator of Battery or supercapacitor
10 Smart Three Phase Digital Energy Meter Wireless LoRaWAN Direct Connected 5 Three-phase voltage or current out- of-phase indicator





  • Transportation and Storage

Ammeters must be transported and stored under original packaging conditions. Products shall not be severely impacted

during transportation and unpacking, and are transported and stored in accordance with GB / T15464-1995 General Technical

Conditions for Instrument Packaging. The products should be stored in the warehouse and placed on the platform frame.

The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.
