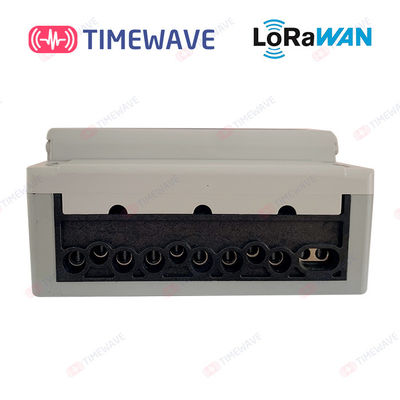

IoT 3 Phase Electricity Meter LoRaWAN With Real Time Data Analysis And Visualization
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type DTZY2397 |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 60-150/ set |
| Packaging Details | Each piece is packed in cartons, with 10 sets in each box, and the gross weight of each box is about 12kg. |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Three-phase Smart Electricity Meter | Qualification | Three-phase Direct Table,Three-phase CT Table |
|---|---|---|---|
| Rated Voltage Un | 3×220/380V | Power Consumption | Non Communication State≤1.5W , In Communication State≤3W |
| The RS485 Interface | The Default Is 2400bps. 1200bps,2400bps,4800bps And 9600bps Were Available | LoraWan Frequency | CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,Custom Channels |
| High Light | IoT 3 Phase Electricity Meter,LoRaWAN 3 Phase Electricity Meter |
||
Product Description
LoRaWAN Three-phase Smart IoT Electricity Meter with Real-time Data Analysis and Visualization
- Product Overview
DTZY2397 three-phase four wire charge control intelligent electric energy meter is a new generation of intelligent high-tech remote electric energy metering product. It is based on MCU+measurement chip technology. Large scale digital signal processing chip is adopted. It is designed and manufactured according to the relevant international (IEC) standards of electric energy meters and China's electric power standards. With LoRaWAN wireless communication modules, communication distance and networking problems are solved. It has the characteristics of high precision, low power consumption and good stability. An important part of the modernization of distribution management can be realized without complex cabling. It can be widely used in the measurement of three-phase AC power in cities, rural areas or factories and enterprises.
The intelligent electricity meter has the functions of electric energy measurement, power parameter measurement, time-sharing measurement, real-time freezing, on-off control, LoRaWAN communication,etc.It is suitable for three-phase power consumption occasions.
- Functions and features
1. Metering positive active, negative active and ABC split phase active electric energy function. It can measure, store and display the ABC voltage, current, total and three-phase active power, total and three phase power factor, frequency and other operating parameters and status of the current watt hour meter. It has overload protection function.
2. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
3. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours(settable).
- Specifications & technical parameters
| Qualification | Three-phase direct meter | Three-phase CT meter |
| Standards | IEC62053-21, DL/T645-2007 | |
| Rated voltage | 3×220/380V | 3×220/380V |
| Operating voltage range | 80%-115% | 80%-115% |
| Rated flow limit Ib | 5A | 1.5A |
| Maximum current: Imax | 100A | 6A |
| Starting current | 0.4% Ib | 0.2% Ib |
| Power consumption | Non communication state≤1.5W , In communication state≤3W | |
| Power grid frequency | 50Hz | 50Hz |
| Frequency range | ±2% | ±2% |
| Active measurement accuracy | Class 1/B | Class 0.5, S/C |
| Reactive measurement accuracy | Class 2 | Class 2 |
| Active pulse constant | 400(imp/kWh) | 3200(imp/kWh) |
| Reactive pulse constant | 400(imp/kWh) | 3200(imp/kWh) |
| Clock precision | ±0.5S/d(23℃) | ±0.5S/d(23℃) |
| Normal operating temperature range | -40° C ～ +70° C | -40° C ～ +70° C |
| Extreme operating temperature range | -40° C ～ +70° C | -40° C ～ +70° C |
| Transportation and storage temperature range | -40° C ～ +70° C | -40° C ～ +70° C |
| Power dissipation | <1.5W ,10VA | <1.5W ,10VA |
| The time that the blackout clock preserves | >24h | >24h |
| The RS485 Interface |
The Default is 2400bps. 1200bps,2400bps,4800bps and 9600bps were available |
|
| LoRaWAN frequency |
CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels |
|
- Electricity meter display
- Display items
| No. | LCD figure | explain |
|
1 |
PREMON POS NEG ∑ T1 T2 T3 T4 | Current and last month, forward and reverse, cumulative total electricity consumption and each rate |
| 2 | A B C | ABC three-phase state, electric energy, instantaneous amount indication |
| 3 | DEMAND | Maximum monthly demand |
| 4 | REMAIN | Overdraw and residual status indication |
| 5 | |
Network status indicator (none) |
| 6 | 8888:8.8:8.8 cos Φ kvarh kW kWh V A | Data display and the corresponding unit symbol |
| 7 | |
Represents periods sets 1 and 2 |
| 8 | |
Indicates current rate status (peak valley) |
| 9 | |
Insufficient voltage indicator of Battery or supercapacitor |
| 10 | |
Three-phase voltage or current out- of-phase indicator |
- TRANSPORTATION AND STORAGE
Ammeters must be transported and stored under original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and are transported and stored in accordance with GB / T15464-1995 General Technical Conditions for Instrument Packaging. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.
