Product Details
Customization OEM/ODM Connectivity Protocol LoraWan
Nominal Caliber (mm) 15/20/25 Overload Flow Q4(m3 /h)) 3.1/5.0/7.8
Commonly Used Flow Q3(m3 /h)) 2.5/4.0/6.3 Maximum Allowable Water Pressure ≤1.2MPa
Temperature Grade T30/T90 Name Smart Iwater Meter
Highlight

T90 LoRaWAN Water Meter

,

T30 LoRaWAN Water Meter

Leave a Message
Product Description
TIMEWAVE mart Water Metering Solution with Real-time Alerts and Billing

The LXSY-TW type (LoRaWAN)
The IOT smart energy meter

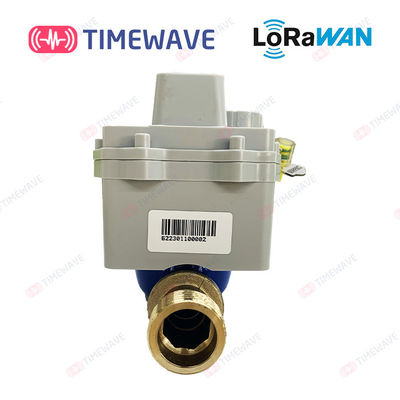

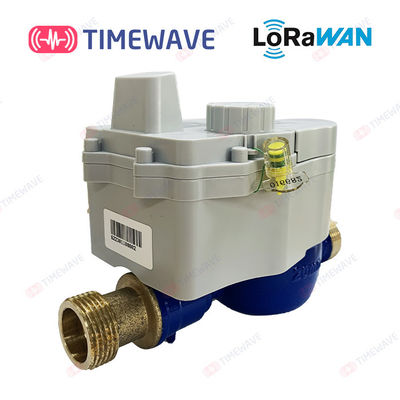

T30 / T90 Smart LoRaWAN Water Metering Solution With Real Time Alerts And Billing 0

Electricity meter operating instruction
1. OVERVIEW
The smart water meter of the Internet of Things is composed of dry water meter base meter, electric ball valve, magnetic resistance sensor, MCU, lithium sub-battery pack, LoRaWAN wireless communication module, control circuit and other components. It adopts the electromechanical separation structure design. It has the advantages of long communication distance, large capacity, fast and convenient installation, and long service life.
T30 / T90 Smart LoRaWAN Water Metering Solution With Real Time Alerts And Billing 1
2. PRODUCT CHARACTERISTICS
l Split structure: the electronic units are relatively independent of the base table.
l Accurate measurement: using non-contact electronic detection logic and measurement accuracy of 10 liters to ensure the mechanical and electrical consistency.
l It has the function of touch button wake-up and long press on the button to immediately go online remote data transmission.
l It has an infrared communication interface, which can read and set relevant parameters.
l It has various alarm functions: abnormal state, measurement fault, abnormal battery voltage, abnormal valve, etc.
l LoRaWAN timing uploading function: automatically upload data at set time points (once a day by default), and also receive and execute valid instructions from the platform.
l Micro-power consumption design: Adopt 3.6V lithium sub-battery pack (ER26500 + HPC1520), with dormant current <10uA.
l Clock calibration function: Automatic calibration function and remote calibration function of platform after the water meter is connected to the network
3. TECHNICAL INDICATORS
Nominal caliber (mm) 15 20 25
Overload flow Q4(m3/h) 3.1 5.0 7.8
Commonly used flow Q3(m3/h) 2.5 4.0 6.3
R=Q3/Q1 100 (Dry Type)
Range ratio Q2/Q1=1.6 Q4/Q3=1.25
Pressure loss level Δp ≦0.063M P a
Maximum allowable water pressure ≦1.2MPa
temperature grade T30/T90
Flow characteristics Comply with GB / T 778.1~3-2007 standard, accuracy level: level 2
Maximum allowable error The high area (Q2 Q Q4) is ± 2%, and the low area (Q1 Q <Q2) is ± 5%
Water meter type Electronic remote transmission water meter with electronic device
design criteria CJT224-2012 Electronic Remote Water ter
Communication mode LoRaWAN:CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,Custom Channels
quiescent current <10uA
Communication current Data collection and generating currents <50mA and peak current <100mA
work environment
0~ + 45℃ (cold water)
0~ + 90℃ (hot water)
0~95%RH
working voltage 2.7~3.6 V
operative norm GB/T 778-2018

4. LIVE OPERATION PROFILE
T30 / T90 Smart LoRaWAN Water Metering Solution With Real Time Alerts And Billing 2
Under the normal state, the water meter will be automatically put online once a day (settable). Through wireless communication, the water meter data will be uploaded to the system platform, and the relevant instructions of the system platform (parameter setting and valve control, etc.) will be received and executed at the same time.
There are touch buttons on the water meter housing. In the dormant state of the water meter, touch the button area with your finger, the red status light on the water meter will flash a little (infrared interface area), the water meter is artificially awakened and in the infrared communication state. If you continue to touch the button (3 seconds), the red indicator of the water meter will flash two times in a row, at this time the water meter will immediately go online (connect to the platform), upload the current data to the system platform and receive the instructions of the platform. The water meter in the process of uploading data, the red indicator will also flash many times in a row. After the meter data is uploaded, it will immediately enter the sleep state (low-power mode).
In order to prevent human malicious multiple triggers to go online (loss of battery power), we specifically set the interval time of button trigger line (5 minutes). That is, the interval time between two consecutive trigger line must be more than 5 minutes. At the same time, it is stipulated that the number of daily button trigger on the line should less than 8 times (the infrared communication setting instruction is not affected by the number).
When the valve is closed, long press and hold the trigger button for the first time every month for 3 seconds, and the water meter valve will open. The water meter valve will be opened to overdraft using 3m³ water. When the overdrawn 3m³ water quantity is used up, the water meter closes the valve automatically.
5. INSTALLATION SIZE
T30 / T90 Smart LoRaWAN Water Metering Solution With Real Time Alerts And Billing 3
T30 / T90 Smart LoRaWAN Water Metering Solution With Real Time Alerts And Billing 4
Model Nominal caliber (mm)
L
(mm )
B
(mm )
H
(mm )
Take over control Nut
LX SY -15 15 165 100 140 R1/2 G3/4
LX SY -20 20 195 100 140 R3/4 G1
LX SY -25 25 225 100 140 R1 G11/4
6. PRECAUTIONS
l Water meters should be checked frequently to prevent water meter leakage accidents.
l In winter, it is necessary to prevent the water meter from freezing and bursting. Installing insulation measures to the water meter when necessary.
l When the home is not occupied for a long time, should close the valve in front of the table to prevent water leakage accidents.
l Water meter is a measuring product and shall not be destroyed. Destroying water meter is an illegal action.
7. TRANSPORTATION AND STORAGE
Water meters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and are transported and stored in accordance with GB / T15464-1995 General Technical Conditions for Instrument Packaging. The products shall be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.
8. WARRANTY PERIOD AND AFTER-SALES SERVICE
If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.

T30 / T90 Smart LoRaWAN Water Metering Solution With Real Time Alerts And Billing 5T30 / T90 Smart LoRaWAN Water Metering Solution With Real Time Alerts And Billing 6
