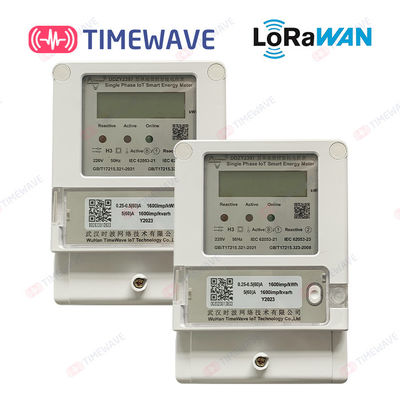

Industrial Prepaid Energy Meter Direct Connected 1 Phase Lora Based Energy Meter

1. Metering of positive and negative active electric energy. The electric energy shall be accumulated and stored separately for tip,

peak, flat, valley and other periods and the total electric energy. It can store and display various electric quantities in the last 12 months.

2. It can measure, store and display the current voltage, current, power, power factor, frequency and other operating parameters and

status of the electric energy meter. It has overload protection function.

3. There are two sets of rates (tip, peak, flat and valley) and time periods that can be programmed at will, and another set of rates

and time periods can be used at the set time point. At least 2 time zones can be set for each set of rate periods throughout the year.

At least 14 time periods can be set within 24 hours; The minimum interval between periods is 15 minutes. The time period can be

set across zero points..

4. It has the functions of event recording such as zero clearing, programming, timing, power failure, switching on and switching off.

5. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to

cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
