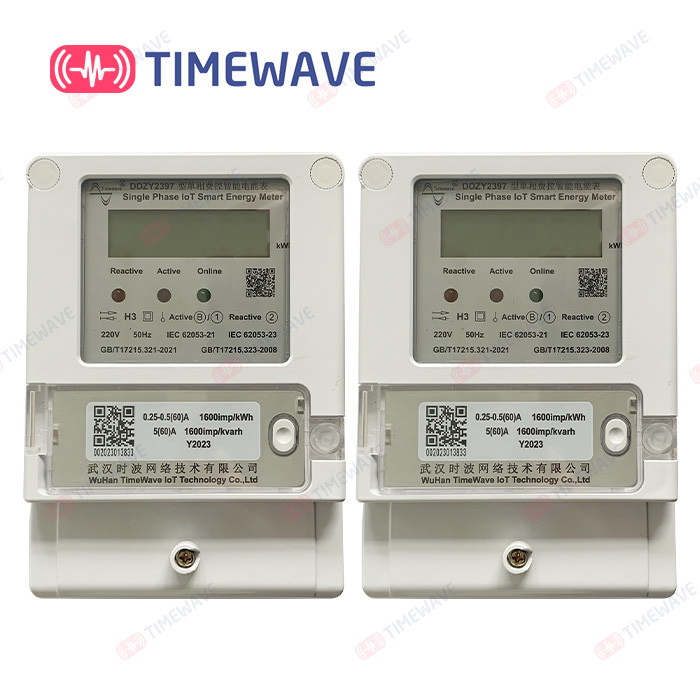

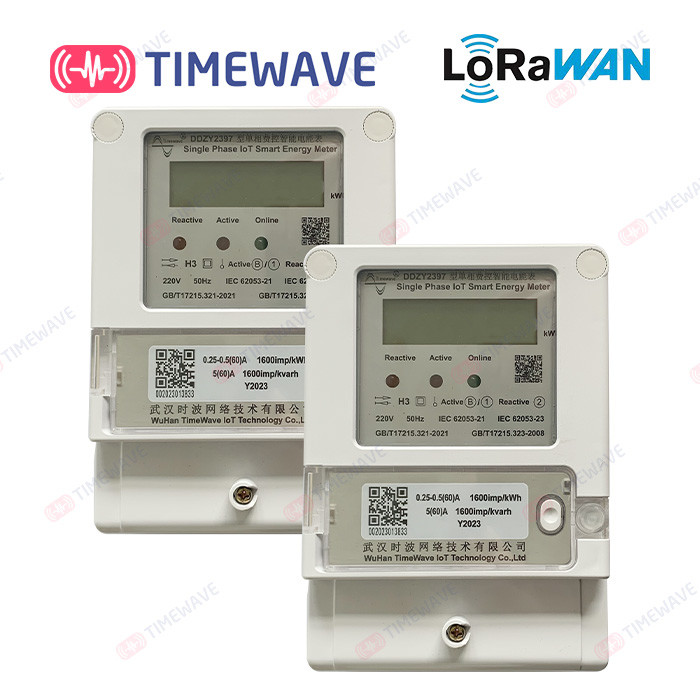

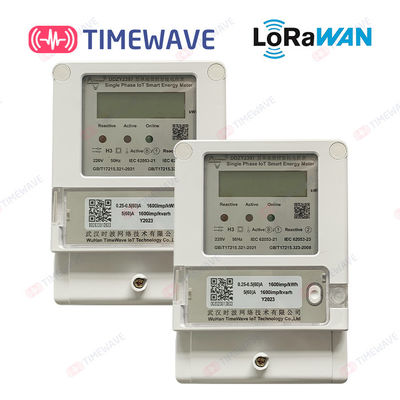

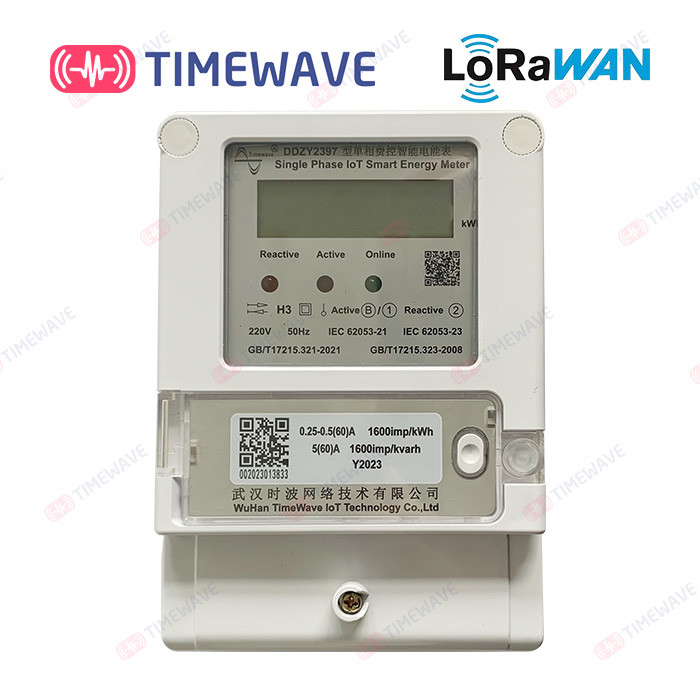

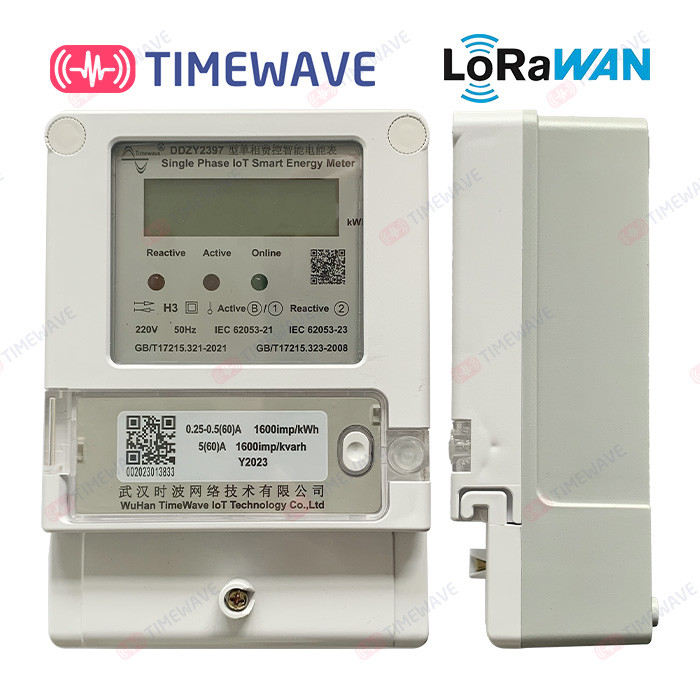

Civil Prepaid Smart Energy Meter LoRaWAN Single Phase Electric Meter

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type DDZY2397
Minimum Order Quantity Negotiable
Price EXW price US$ 60-150/ set
Packaging Details Each piece is packed in cartons, with 20 sets in each box
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 2000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Smart Energy Meter Weight 0.8 Kg
Installation Direct Connected Display LCD Screen
Warranty 1.5 Years Guarantee Application Civil, Industrial
High Light

Single Phase Prepaid Smart Energy Meter


Civil Prepaid Smart Energy Meter


LoRaWAN Single Phase Electric Meter

Leave a Message
Product Description

LoRaWAN Single Phase Smart Energy Meter for Real-time Monitoring and Control of Electricity Consumption


  • Product Overview
DDZY2397 single-phase charge control intelligent electric energy meter is a fully digital intelligent electric energy meter developed
by our company. Adopt SOC high integration chip. In addition to the active electric energy metering function, it also has a variety
of functions such as online power display, intelligent power theft prevention, overload control, remote centralized meter reading, etc.
The data is transmitted to the corresponding platform through LoRaWAN/CAT1/Bluetooth wireless network. It has the characteristics
of high precision, low power consumption and good stability, and can be widely used in the measurement of single-phase AC power
in urban, rural or factory enterprises.
  • Highlights:
1. Metering of positive and negative active electric energy. The electric energy shall be accumulated and stored separately for tip, peak, flat, valley and other periods and the total electric energy. It can store and display various electric quantities in the last 12 months.
2. It can measure, store and display the current voltage, current, power, power factor, frequency and other operating parameters and status of the electric energy meter. It has overload protection function.
3. There are two sets of rates (tip, peak, flat and valley) and time periods that can be programmed at will, and another set of rates and time periods can be used at the set time point. At least 2 time zones can be set for each set of rate periods throughout the year.
At least 14 time periods can be set within 24 hours; The minimum interval between periods is 15 minutes. The time period can be set across zero points..
4. It has the functions of event recording such as zero clearing, programming, timing, power failure, switching on and switching off.
5. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.

6. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours(settable).

  • Specifications & technical parameters
Standards IEC62053-21, IEC62052-11, DL/T645-2007 220
Current(A) 5(60)A/0.25~0.5(60)A
Pulse constant(imp/kWh) 3200
Active measurement accuracy Class B/1
Reactive measurement accuracy Class 2
Frequency 50Hz
Power consumption ≤1.5W
Specified range 0.9Un ~ 1.1Un
Expansion range 0.8Un ~ 1.15Un
Limit range 0.6Un ~ 1.2Un
Specified temperature range ≤±1s/d
Reference temperature(23℃) ≤±0.5s/d
Active power(Class 1) ≤0.004lb
Reactive power(Class 2) ≤0.005lb
Specified working range -25℃~+60℃
Operating limit range -40℃~+70℃
Storage and transportation -40℃~+70℃
Annual average relative humidity < 75%RH
Natural distribution within 30 days of a year 95%RH
Occurs occasionally in other days 85%RH
LoRaWAN frequency


Custom Channels


  • Display items
No. LCD figure Meaning
1. Civil Prepaid Smart Energy Meter LoRaWAN Single Phase Electric Meter 0

Character that can indicate that: Current,

previous month, the previous twelve months cumulative total electricity consumption and

electricity consumption at various rates.

2. Civil Prepaid Smart Energy Meter LoRaWAN Single Phase Electric Meter 1 Data display and the corresponding unit symbol
3. Civil Prepaid Smart Energy Meter LoRaWAN Single Phase Electric Meter 2 1) In communication
2) Reverse power indication
3) ① ② represents periods sets 1 and 2
4) Undervoltage indication of the battery or supercapacitor voltage
5) Allow the programming status indication
6) Three times of password verification error indication
4. T1 T2 T3 T4 Indicates current rate status (tip peak flat valley)



----ON is relay state on

                            ----OFF is relay state off




Ammeters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and shall be transported and stored according to GB / T 25480-2010 Basic Environmental Conditions for Instrument Transportation and Storage and Test Methods as stipulated in 2010. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.



If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.
