Civil LoRaWAN Smart Electric Meter Monitoring Meters Multifunctional Energy Meter MID Energy Meter For Home

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type DTZY2397
Minimum Order Quantity Negotiable
Price EXW price US$ 60-150/ set
Packaging Details Each piece is packed in cartons, with 10 sets in each box, and the gross weight of each box is about 12kg.
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 2000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Smart Energy Meter Installation Direct Connected
Rated Voltage Un 3×220/380V Display LCD Screen
Warranty 1.5 Years Guarantee Application Civil, Industrial
Product Single/Three Phases Smart Energy Meter Customization OEM/ODM
Standards IEC62053-21, DL/T645-2007 Rated Voltage Un 220V/3*220v/380v
Power Grid Frequency 50Hz Operating Voltage 80% Un ~ 115% Un
Rated Current Limit Ib 5A Maximum Current Imax 80A/100A
Starting Current 0.4% Ib Connectivity Protocol NB-iot/LoraWan
High Light

Civil Smart Electricity Meters


100A Smart Electricity Meters


LoRaWAN Multifunctional Energy Meter

Leave a Message
Product Description

LoRaWAN Three Phase Smart Energy Meter for Real-time Monitoring and Control of Electricity Consumption​


  • Product Overview

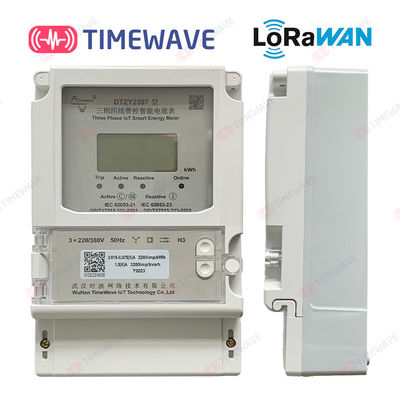

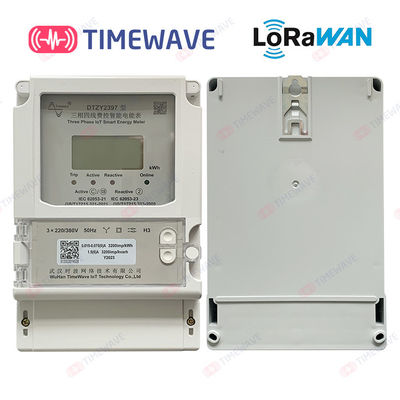

DTZY2397 three-phase four wire charge control intelligent electric energy meter is a new generation of intelligent high-tech remote electric energy metering product. It is based on MCU+measurement chip technology. Large scale digital signal processing chip is adopted. It is designed and manufactured according to the relevant international (IEC) standards of electric energy meters and China's electric power standards. With LoRaWAN/CAT1/Bluetooth wireless communication modules, communication distance and networking problems are solved. It has the characteristics of high precision, low power consumption and good stability. An important part of the modernization of distribution management can be realized without complex cabling. It can be widely used in the measurement of three-phase AC power in cities, rural areas or factories and enterprises.
  • Highlights:


1. Metering positive active, negative active and ABC split phase active electric energy function. It can measure, store and display the ABC  voltage, current, total and three-phase active power, total and three phase power factor, frequency and other operating parameters and status of the current watt hour meter. It has overload protection function.
2. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
3. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours (settable).


  • Specifications & technical parameters
Qualification Three-phase direct meter Three-phase CT meter
Standards IEC62053-21, DL/T645-2007
Rated voltage 3×220/380V 3×220/380V
Operating voltage range 80%-115% 80%-115%
Rated flow limit Ib 5A 1.5A
Maximum current: Imax 100A 6A
Starting current 0.4% Ib 0.2% Ib
Power consumption Non communication state≤1.5W , In communication state≤3W
Power grid frequency 50Hz 50Hz
Frequency range ±2% ±2%
Active measurement accuracy Class 1/B Class 0.5, S/C
Reactive measurement accuracy Class 2 Class 2
Active pulse constant 400(imp/kWh) 3200(imp/kWh)
Reactive pulse constant 400(imp/kWh) 3200(imp/kWh)
Clock precision ±0.5S/d(23℃) ±0.5S/d(23℃)
Normal operating temperature range -40° C ~ +70° C -40° C ~ +70° C
Extreme operating temperature range -40° C ~ +70° C -40° C ~ +70° C
Transportation and storage temperature range -40° C ~ +70° C -40° C ~ +70° C
Power dissipation <1.5W ,10VA <1.5W ,10VA
The time that the blackout clock preserves >24h >24h
The RS485 Interface

The Default is 2400bps.

1200bps,2400bps,4800bps and 9600bps were available

LoRaWAN frequency


Custom Channels




Ammeters must be transported and stored under original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and are transported and stored in accordance with GB / T15464-1995 General Technical Conditions for Instrument Packaging. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.



If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.
