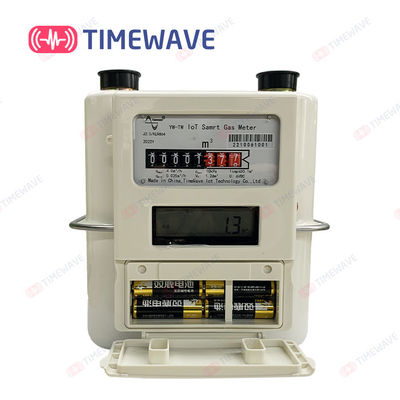

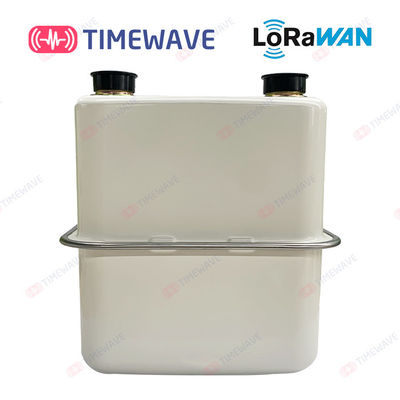

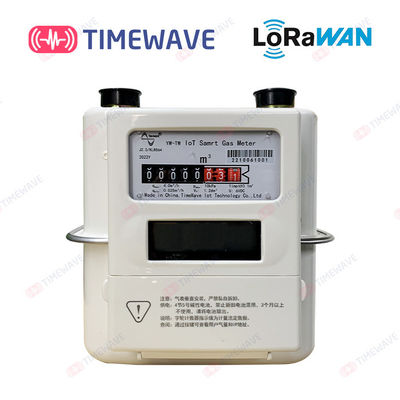

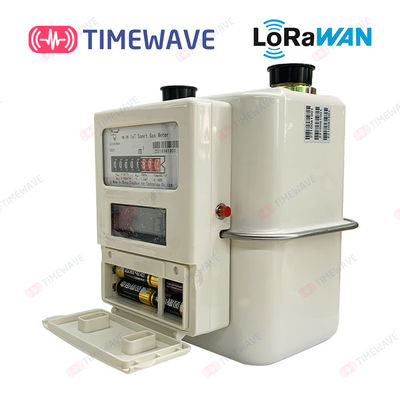

IoT Based LoRaWAN Gas Metering Solution Smart For Gas Consumption Management Energy Smart Gas Meters
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type YW-TW |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 80-550/ set |
| Packaging Details | Customizable packaging |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IoT Smart Gas Meter | Operating Pressures(kPa) | ≤30 |
|---|---|---|---|
| Accuracy Grade | 1.5 | Nominal Flow | 1.6-4 |
| Display | LCD Screen | Application | Civil |
| High Light | IoT Based LoRaWAN Gas Meter,Consumption LoRaWAN Gas Meter,IoT Based Gas Metering Solutions |
||
Product Description
IoT Based LoRaWAN Gas Metering Solution Smart For Gas Consumption Management Energy Smart Gas Meters
- Product Overview
1. Intelligent gas meter is a new generation of centralized reading gas meter terminal. It is applicable to the flow measurement of natural gas, liquefied petroleum gas, artificial gas and other gases. It integrates gas meter metering, remote reading and monitoring. The meter has the characteristics of high reliability, high accuracy and low power consumption.
2. Type YW-TW intelligent gas meter based on the IoT adopts LoRaWAN/CAT.1 wireless transmission technology. Automatically upload gas consumption data to the application platform to realize remote monitoring of gas meter usage status. It solves the problems of the traditional gas meter, such as the difficulty of over-reading the meter at home, the difficulty of paying the fee, and the inaccuracy of the supply and marketing difference.Explosion-proof sign ExibIIBT3 Gb. It is applicable to Zone 1 and Zone 2, containing IIA-IIB and T1-T3 explosive gas mixture.
- Functions and features
1. Adopt LoRaWAN wireless technology. Effectively increase the anti-interference ability of the communication system and improve the accuracy of the received data.
2. The gas meter adopts the form of system prepayment. The valve switch of the gas meter is realized by the command from the system platform.
3. Timing (once a day)(settable) and key wake-up to transfer data to the platform. It improves the response speed of meter reading and reduces battery energy consumption.
4. When the voltage is low or abnormal,the LCD screen will automatically display the fault information, beep the alarm, and close the valve.
5. It has a built-in antenna.The transmission signal is stable and reliable.
6. The platform can remotely check the user's gas consumption,battery usage,and remotely control the valve switch of the gas meter.
7. It has the function of pulse signal open circuit self-inspection,which can effectively ensure the accuracy of gas meter measurement.
- Specifications & technical parameters
Aluminum shell Steel shell
Specifications | G(J)1.6 | G(J)2.5 | G(J)4 |
Nominal flow(m3 /h) | 1.6 | 2.5 | 4 |
Maximum flow(m3 /h) | 2.5 | 4.0 | 6.0 |
Minimum flow(m3 /h) | 0.016 | 0.025 | 0.040 |
| Working Pressures(kPa) | ≤30 |
| Total Pressure Loss(Pa) | ≤250 |
| Accuracy Level | 1.5 Class |
| Basic Error Lines | qmin≤q< qt ±3.0% qt≤q≤qmax ±1.5% |
| The tightness of the machine | It can last for 3 minutes without leakage under 1.5 times of the maximum working pressure |
| Operating Ambient Temperature(℃) | -25℃～ +40℃ |
| Inlet and Outlet Connector Threads | M30×2 |
| Maximum Display Capacity of LCD(m3) | 999999 |
| Maximum reading of base meter(m3) | 99999.999 |
| Power supply mode | Four AA Alkaline dry batteries(AA LR6 1.5V) |
| LoRaWAN frequency band (MHz) | CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels |
| Barrier-free meter reading distance | >3000m |
| Compliant standards | GB/T 6968-2019,GB/T 3836-2021 |
*Specification and model description: G is aluminum shell meter, J is iron shell meter.
- Display Description
•Consumption: cumulative consumption of gas meter
• Valve off/valve on: indication of valve switch status of gas meter
• Lobat: when the battery voltage of the gas meter is insufficient, the LCD screen will prompt "Lobat" and close the valve.
After replacing the battery, press the button to open the valve.
• Fault code:
Err005:forced valve closing
Err006:strong magnetic interference Err008:valve fault
Err010:pulse signal input abnormality Err023:pre-closing valve
Err030:limited networking times in a single day
- Installation and usage considerations
1.The installation shall be carried out in accordance with GB/T 3836.15-2017 Explosive Atmospheres - Part 15: Design, Selection and Installation of Electrical Installations. The installation of meters shall be carried out by professionals of the gas company for initial installation and commissioning.
2. This product has undergone explosion-proof treatment and shall not be changed at will.
3. The product shall not be collided or severely impacted during transportation, and shall be protected from rain and sand.
4. This product should be stored in a ventilated and dry place.
5. It is prohibited to detect leakage in case of open fire. When piloting fire, the air in the gas meter must be exhausted to prevent accidents.
6. When installing the battery, note that the side with the spring is the negative pole of the battery. The battery shall be replaced under the condition of good ventilation and no gas leakage.
7. Electrostatic hazard, so must be wiped with wrung wet cloth.
