LoRaWAN Electric Water Meter For Water Usage Automatic Water Meter Reading System Water Meter For Home Use

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type LXSY-TW
Minimum Order Quantity Negotiable
Price EXW price US$ 50-100/ set
Packaging Details Customized packaging
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 2000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name LoRaWAN Smart Water Meter Display LCD Screen
Nominal Diameter(mm) 15-25 Operating Voltage 2.7 ~ 3.6 V
Application Civil, Industrial Warranty 1.5 Years Guarantee
High Light

Industrial Lora Smart Water Meter

,

LoRaWAN Lora Smart Water Meter

,

LoRaWAN Water Usage Meter

Leave a Message
Product Description

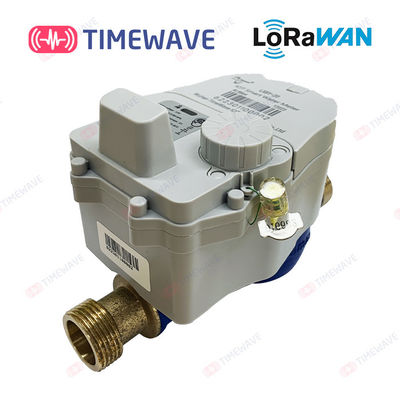

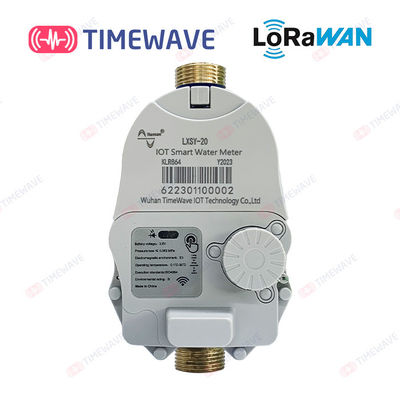

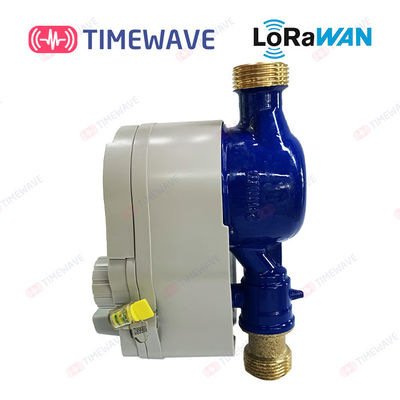

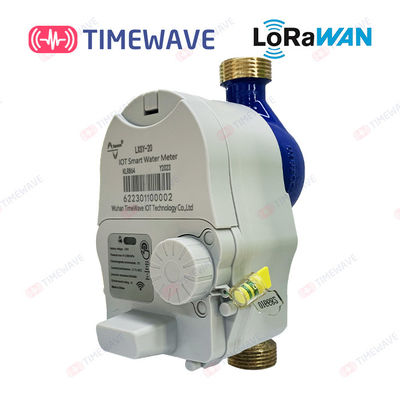

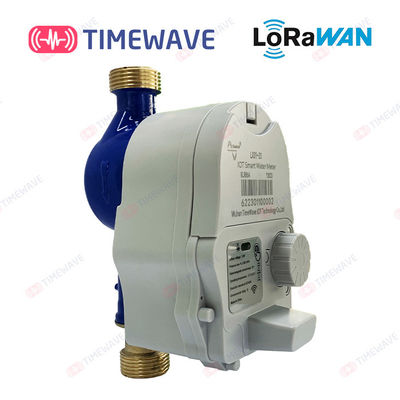

LoRaWAN Electric Water Meter For Water Usage Automatic Water Meter Reading System Water Meter For Home Use



LoRaWAN Electric Water Meter For Water Usage Automatic Water Meter Reading System Water Meter For Home Use 0LoRaWAN Electric Water Meter For Water Usage Automatic Water Meter Reading System Water Meter For Home Use 1

  • Product Overview

LoRaWAN IoT water meter is composed of water meter base meter, electric ball valve (valve control), magnetoresistive sensor,
MCU, wireless communication module, control circuit and other components. Mechanical and electrical separation structure design.
High capacity lithium sub battery pack is used for power supply. It provides long-term stable energy guarantee for data acquisition,
valve control and wireless data transmission. LoRaWAN wireless communication module is adopted. Through the spread spectrum communication technology, the user water data is actively uploaded (once a day by default) to the LoRa WAN gateway. The gateway
will upload to the system data service center through LTE 4G network or Ethernet. The system has the advantages of long communication distance, large capacity, fast and convenient installation, long service life, etc.

This water meter is of dry structure. The dry water meter is isolated from the measured water due to its counting mechanism. Therefore,
it is not affected by the suspended impurities in the water to ensure the normal operation of the counting mechanism and the clear reading.
At the same time, it will not, like the wet water meter, affect the reading of the water meter due to the fog or condensation under the glass
caused by the temperature difference between inside and outside the meter.

  • Functions and features

1. Split structure: The electronic unit is independent from the base table.

2. Accurate measurement: non-contact full-electronic detection logic is adopted. The metering accuracy is 10 liters.
3. It has the functions of touching the key to wake it up and long press key to go online and transmit data remotely.
4. It has infrared communication interface. Relevant parameters can be read and set.
5. It has alarm functions: Abnormal state battery voltage and valve, continuous small and large flow, metering module failure,etc.
6. Timed collection and upload function:Collect data timed. Auto upload data at the set time point (once a day by default).
    Meanwhile, it can receive and execute instructions from the platform.
7. Auto switching of reporting mode: When the on-site signal is abnormal, it will auto switch to monthly mode. While it's recovered,
    it will auto resume the daily mode.
8. LP design: 3.6V lithium sub-battery pack (ER26500+HPC1520) is adopted. Sleep current is less than 10uA.
9. Clock calibration function: Auto time calibration and platform remote time calibration after the water meter is online.



  • Specifications & technical parameters

Flow characteristics

     Comply with GB/T 778.1~3-2007 standard. Accuracy Class: Class 2

Nominal caliber (mm)

              15

                  20

                   25

Overload flow Q4(m3 /h)

              3.1

                  5.0

                   7.8

Commonly used flow Q3(m3 /h)

              2.5

                  4.0

                   6.3

Maximum allowable error

        high area (Q2≤Q≤Q4) is ± 2%, the low area (Q1≤Q<Q2) is ± 5%



R=Q3/Q1

100 (Dry Type)



Quiescent current

<10uA

Range ratio

Q2/Q1=1.6 Q4/Q3=1.25

Communication current


Data collection and generating currents <50mA,
and peak current <100mA

Pressure loss level

△ p≤0.063MPa

Maximum allowable water pressure

≤1.2MPa

Operating environment

0~ +45℃ (cold water),0~95%RH 0~ +90℃ (hot water),0~95%RH

Temperature grade

Cold:T30   Hot:T90

Communication mode

oRaWAN:CN470,RU864,IN865,
EU868,US/AU915,KR920,AS923_
1/2/3/4,Custom Channels

Oprating voltage

2.7 ~ 3.6 V



  • Display description

LoRaWAN Electric Water Meter For Water Usage Automatic Water Meter Reading System Water Meter For Home Use 2


  • Overall dimension (unit: mm)

LoRaWAN Electric Water Meter For Water Usage Automatic Water Meter Reading System Water Meter For Home Use 3


  • Precautions
1. Water meters should be checked frequently to prevent water meter leakage accidents;
2. In winter, it is necessary to prevent the water meter from freezing and bursting. Installing insulation measures to the
    water meter when necessary;
3. When the home is not occupied for a long time, should close the valve in front of the table to prevent water leakage accidents;
4. Water meter is a measuring product and shall not be destroyed. Destroying water meter is an illegal action.
