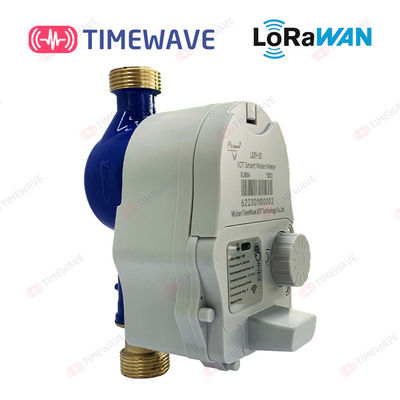

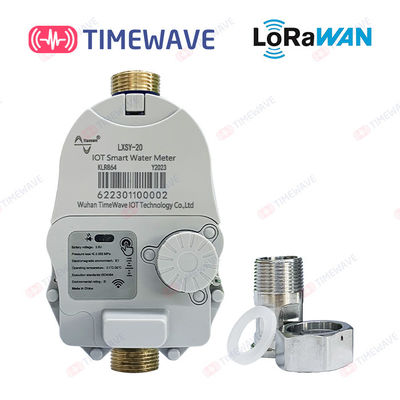

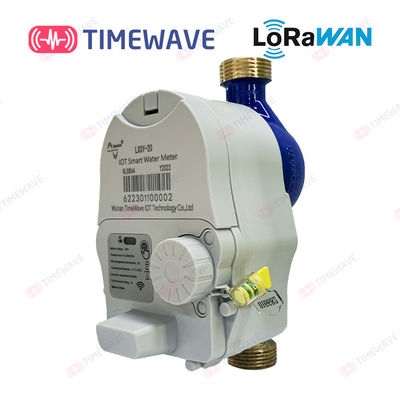

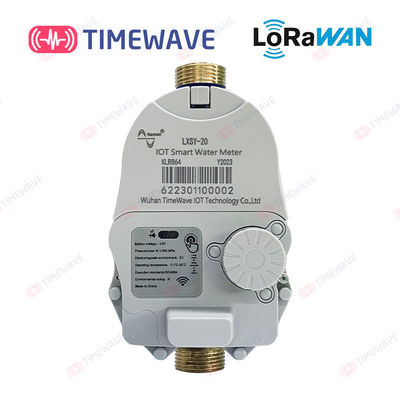

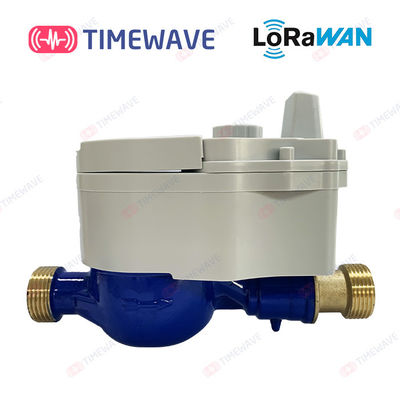

Civil Remote Wifi Flow Meter Water Wireless Lorawan Lora Smart Meter Apartment Home Smart Water Meter
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type LXSY-TW |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 50-100/ set |
| Packaging Details | Customized packaging |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LoRaWAN Water Meter | Color | Off-white |
|---|---|---|---|
| Medium Temperature | Cold/Hot Water | Application | Civil, Industrial |
| High Light | Civil Remote Water Meters Wireless,Lorawan Remote Water Meters Wireless |
||
Product Description
Civil Remote Wifi Flow Meter Water Wireless Lorawan Lora Smart Meter Apartment Home Smart Water Meter
- Product Overview
LoRaWAN IoT water meter is composed of water meter base meter, electric ball valve (valve control), magnetoresistive sensor, MCU,
wireless communication module, control circuit and other components. Mechanical and electrical separation structure design. High capacity lithium sub battery pack is used for power supply. It provides long-term stable energy guarantee for data acquisition, valve control and wireless data transmission. LoRaWAN wireless communication module is adopted. Through the spread spectrum communication technology, the user water data is actively uploaded (once a day by default) to the LoRa WAN gateway. The gateway will upload to the system data service center through LTE 4G network or Ethernet. The system has the advantages of long communication distance, large capacity, fast andconvenient installation, long service life, etc.
This water meter is of dry structure. The dry water meter is isolated from the measured water due to its counting mechanism. Therefore, it is not affected by the suspended impurities in the water to ensure the normal operation of the counting mechanism and the clear reading. At the same time, it will not, like the wet water meter, affect the reading of the water meter due to the fog or condensation under the glass caused by the temperature difference between inside and outside the meter.
- Functions and features
1. Split structure: The electronic unit is independent from the base table.
2. Accurate measurement: non-contact full-electronic detection logic is adopted. The metering accuracy is 10 liters.
3. It has the functions of touching the key to wake it up and long press key to go online and transmit data remotely.
4. It has infrared communication interface. Relevant parameters can be read and set.
5. It has alarm functions: Abnormal state battery voltage and valve, continuous small and large flow, metering module failure,etc.
6. Timed collection and upload function:Collect data timed. Auto upload data at the set time point (once a day by default). Meanwhile, it can receive and execute instructions from the platform.
7. Auto switching of reporting mode: When the on-site signal is abnormal, it will auto switch to monthly mode. While it's recovered, it will auto resume the daily mode.
8. LP design: 3.6V lithium sub-battery pack (ER26500+HPC1520) is adopted. Sleep current is less than 10uA.
9. Clock calibration function: Auto time calibration and platform remote time calibration after the water meter is online.
- Specifications & technical parameters
| Flow characteristics | Comply with GB/T 778.1~3-2007 standard. Accuracy Class: Class 2 | ||
| Nominal caliber (mm) | 15 | 20 | 25 |
| Overload flow Q4(m3 /h) | 3.1 | 5.0 | 7.8 |
| Commonly used flow Q3(m3 /h) | 2.5 | 4.0 | 6.3 |
| Maximum allowable error | high area (Q2≤Q≤Q4) is ± 2%, the low area (Q1≤Q<Q2) is ± 5% | ||
| R=Q3/Q1 | 100 (Dry Type) | Quiescent current | <10uA | |
| Range ratio | Q2/Q1=1.6 Q4/Q3=1.25 |
Communication current |
Data collection and generating currents <50mA, |
|
| Pressure loss level | △ p≤0.063MPa | |||
| Maximum allowable water pressure | ≤1.2MPa | Operating environment | 0~ +45℃ (cold water),0~95%RH 0~ +90℃ (hot water),0~95%RH | |
| Temperature grade | Cold:T30 Hot:T90 | |||
| Communication mode |
LoRaWAN:CN470,RU864,IN865, EU868,US/AU915,KR920,AS923_ 1/2/3/4,Custom Channels |
Oprating voltage |
2.7 ～ 3.6 V |
- Display description
Under normal conditions, the water meter will automatically go online once a day (settable). Upload the water meter
data to the system platform through wireless communication. At the same time, receive and execute the relevant
instructions of the system platform (parameter setting, valve control, etc.).
- Installation dimension
|
Model |
Nominal caliber (mm) |
L (mm ) |
B (mm ) | H (mm ) |
Take over control |
Nut |
|
LX SY -15 |
15 | 165 | 100 | 140 |
R1/2 |
G3/4 |
|
LX SY -20 |
20 | 195 | 100 | 140 |
R3/4 |
G1 |
|
LX SY -25 |
25 | 225 | 100 | 140 |
R1 |
G11/4 |
- Precautions
1. Water meters should be checked frequently to prevent water meter leakage accidents;
2. In winter, it is necessary to prevent the water meter from freezing and bursting. Installing insulation measures
to the water meter when necessary;
3. When the home is not occupied for a long time, should close the valve in front of the table to prevent water
leakage accidents;
4. Water meter is a measuring product and shall not be destroyed. Destroying water meter is an illegal action.
- Warranty and after-sales service
If the user complies with the transportation, storage and installation operation specifications, and the lead
seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or
replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity
meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary
technical documents and drawings. According to the requirements of users, provide necessary training for maintenance
personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
