LCD Digital Display LoRaWAN Energy Meter Wireless 220V 3 Phase Direct Connected
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type DTZY2397 |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 60-120/ set |
| Packaging Details | Each piece is packed in one carton, 10 sets per carton |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Three Phase Energy Meter | Rated Voltage (Un) | 220V |
|---|---|---|---|
| Structure | Direct Connected | After-sale Service | 1.5 Years Guarantee |
| Electric Equipment | Three Phase | Application | Energy Measurement And Charing |
| Product | Single/Three Phases Smart Energy Meter | Customization | OEM/ODM |
| Standards | IEC62053-21, DL/T645-2007 | Rated Voltage Un | 220V/3*220v/380v |
| Power Grid Frequency | 50Hz | Operating Voltage | 80% Un ～ 115% Un |
| Rated Current Limit Ib | 5A | Maximum Current Imax | 80A/100A |
| Starting Current | 0.4% Ib | Connectivity Protocol | NB-iot/LoraWan |
| High Light | 3 Phase LoRaWAN Energy Meter,Direct Connected LoRaWAN Energy Meter,ODM Digital Display Energy Meter |
||
Product Description

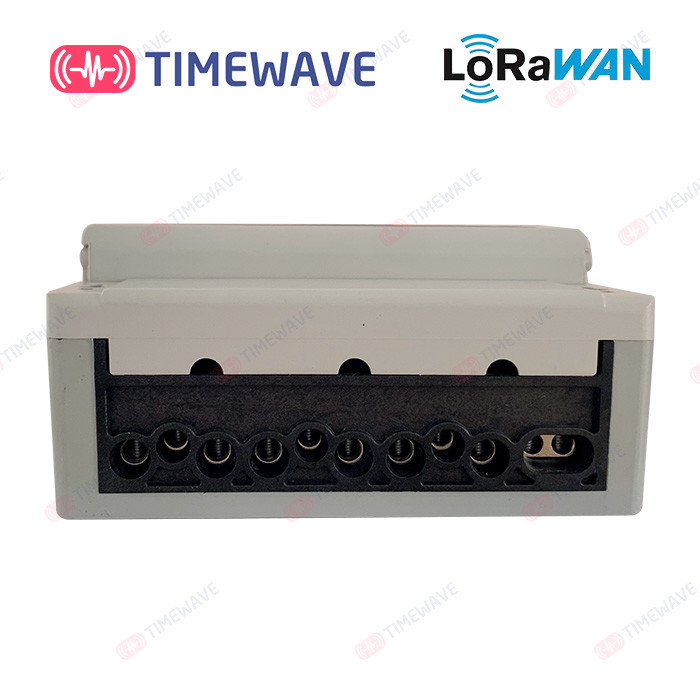

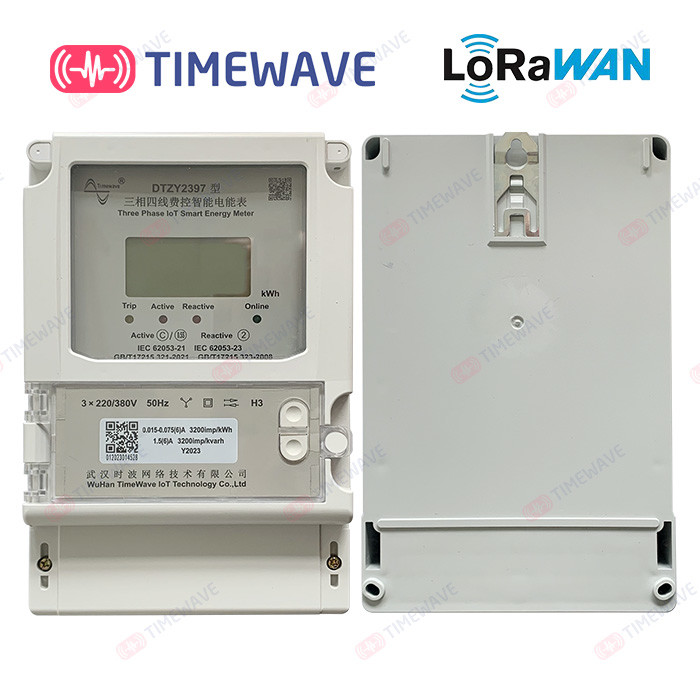

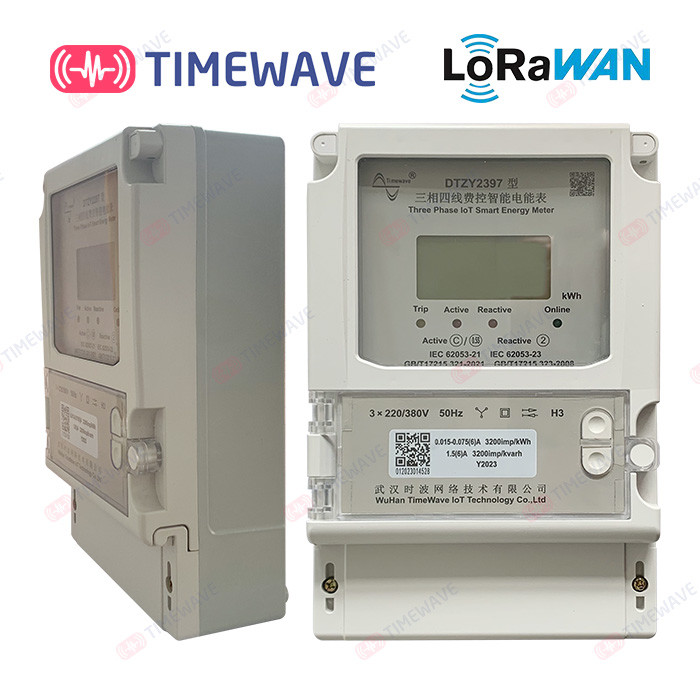

Lorawan Wireless Three Phase Smart Electric Energy Power Meter LCD Display IoT Insulation Corrosion Resistance
- Product Overview
DTZY2397 three-phase four wire charge control intelligent electric energy meter is a new generation of intelligent high-tech remote electric energy metering product. It is based on MCU+measurement chip technology. Large scale digital signal processing chip is adopted. It is designed and manufactured according to the relevant international (IEC) standards of electric energy meters and China's electric power standards. With LoRaWAN/CAT1/Bluetooth wireless communication modules, communication distance and networking problems are solved. It has the characteristics of high precision, low power consumption and good stability. An important part of the modernization of distribution management can be realized without complex cabling. It can be widely used in the measurement of three-phase AC power in cities, rural areas or factories and enterprises.
- Highlights:
1. Metering positive active, negative active and ABC split phase active electric energy function. It can measure, store and display the ABC voltage, current, total and three-phase active power, total and threephase power factor, frequency and other operating parameters and status of the current watt hour meter. It has overload protection function.
2. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
3. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours(settable).
4. Measurement and control unit (MCU) : Responsible for measuring electrical parameters (kWh, power, current, voltage, etc.).

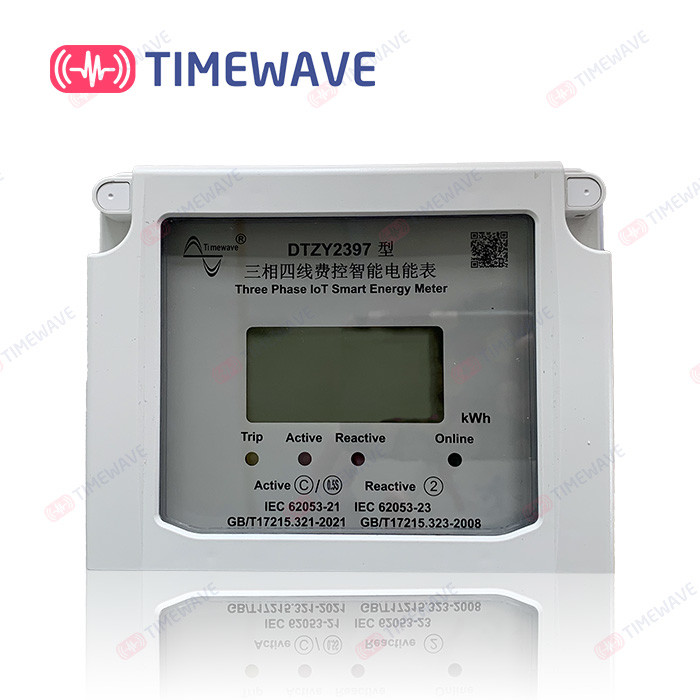

- Indicator display description:
• Trip indicator: yellow. Normally off closing state, normally on opening state.
• Active pulse indicator: red. It is off at ordinary times and flashes during metering.
• On-line indicator: green. If it is always on, it means that the module is online. Flashing indicates that the module is going online. Off means not online.
- Specifications & technical parameters
|
Qualification |
Three-phase direct meter |
Three-phase CT meter |
|
Standards |
IEC62053-21, DL/T645-2007 |
|
|
Rated voltage |
3×220/380V |
3×220/380V |
|
Operating voltage range |
80%-115% |
80%-115% |
|
Rated flow limit Ib |
5A |
1.5A |
|
Maximum current: Imax |
100A |
6A |
|
Starting current |
0.4% Ib |
0.2% Ib |
|
Power consumption |
Non communication state≤1.5W , In communication state≤3W |
|
|
Power grid frequency |
50Hz |
50Hz |
|
Frequency range |
±2% |
±2% |
|
Active measurement accuracy |
Class 1/B |
Class 0.5, S/C |
|
Reactive measurement accuracy |
Class 2 |
Class 2 |
|
Active pulse constant |
400(imp/kWh) |
3200(imp/kWh) |
|
Reactive pulse constant |
400(imp/kWh) |
3200(imp/kWh) |
|
Clock precision |
±0.5S/d(23℃) |
±0.5S/d(23℃) |
|
Normal operating temperature range |
-40° C ～ +70° C |
-40° C ～ +70° C |
|
Extreme operating temperature range |
-40° C ～ +70° C |
-40° C ～ +70° C |
|
Transportation and storage temperature range |
-40° C ～ +70° C |
-40° C ～ +70° C |
|
Power dissipation |
<1.5W ,10VA |
<1.5W ,10VA |
|
The time that the blackout clock preserves |
>24h |
>24h |
|
The RS485 Interface |
The Default is 2400bps. 1200bps,2400bps,4800bps and 9600bps were available |
|
|
LoRaWAN frequency |
CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels |
|
- Display items and meaning
|
No. |
LCD figure |
Meaning |
| 1. |
PREMON POS NEG ∑ T1 T2 T3 T4 |
Current and last month, forward and reverse, cumulative total electricity consumption and each rate |
| 2. | A B C | ABC three-phase state, electric energy, instantaneous amount indication |
| 3. | DEMAND | Maximum monthly demand |
| 4. | DEMAND | Overdraw and residual status indication |
| 5. |
|
Network status indicator (none) |
| 6. | 8888:8.8:8.8 cos Φ kvarh kW kWh V A | Data display and the corresponding unit symbol |
| 7. |
|
Represents periods sets 1 and 2 |
| 8. | |
Indicates current rate status (tip peak flat valley) |
| 9. |
|
Insufficient voltage indicator of Battery or supercapacitor |
- Warranty and after-sales service
If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
