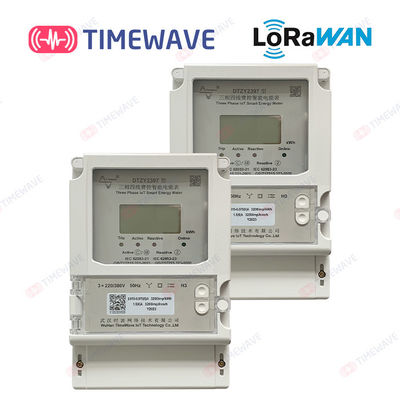

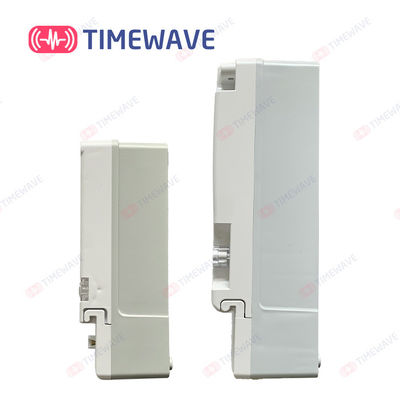

Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System

Place of Origin Hubei ,China
Brand Name TimeWave
Certification ISO/IEC 20000-1, ISO/IEC 27001,I SO/IEC 9001
Model Number DTZY2397
Minimum Order Quantity Negotiable
Price EXW US$ 50-100/set
Packaging Details 20pcs/carton
Delivery Time 3-5 weeks after receive the payment
Payment Terms T/T, L/C
Supply Ability 2000 set/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Single/Three Phases Smart Energy Meter Customization OEM/ODM
Phase Single/Three Standards IEC62053-21, DL/T645-2007
Power Grid Frequency 50Hz Rated Voltage Un 220V/3*220v/380v
Operating Voltage 80% Un ~ 115% Un Rated Current Limit Ib 5A
Maximum Current Imax 80A/100A Starting Current 0.4% Ib
Connectivity Protocol NB-iot/LoraWan
High Light

IoT Secure Three Phase Energy Meter

,

4G Secure Three Phase Energy Meter

,

OEM Wireless Energy Monitoring System

Leave a Message
Product Description
TIMEWAVE Wireless Energy Meter Smart IoT Power Monitoring electricity meter support 4G wifi with APP data checking

Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 0

Type DTZY2397 (LoRaWAN)
Three-phase IOT smart energy meter


Electricity meter operating instruction


1. OVERVIEW
The intelligent electricity meter has the functions of electric energy measurement, power parameter measurement, time-sharing measurement, real-time freezing, on-off control, LoRaWAN and RS485 communication,etc.It is suitable for three-phase power consumption occasions.
Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 1
Qualification Three-phase direct table Three-phase CT table
Standards IEC62053-21, IEC62052-11, DL/T645-2007
rated voltage Un 3×220/380V 3×220/380V
Operating voltage range 80%-115% 80%-115%
Rated flow limit Ib 5A 1.5A
Maximum current: Imax 100A 6A
starting current 0.4% Ib 0,2% Ib
Power grid frequency 50Hz 50Hz
frequency range ±2% ±2%
Active measurement accuracy Classl 1 / B Class 0.5, S / C
Reactive measurement accuracy Class 2 Class 2
Active pulse constant 400(imp/kWh) 3200(imp/kWh)
The reactive pulse constant 400(imp/kvarh) 3200(imp/kvarh)
clock precision ±0.5S/d (23℃) ±0.5S/d (23℃)
Normal operating temperature range -40°C~+70°C -40°C~+70°C
Extreme operating temperature range -40°C~+70°C -40°C~+70°C
Transportation and storage temperature range -40°C~+70°C -40°C~+70°C
power dissipation <1.5W ,10VA >1.5W ,10VA
The time that the blackout clock preserves >24h >24h
The RS485 Interface The Default is 2,400 b p s.1200bps, 2400bps, 4800bps, and 9600bps were available
LoRaWAN frequency 864-865MHz 864-865MHz




3.1. 3.1 Metering positive and negative active power, positive and negative direction active power, 1-4 quadrant reactive power, and ABC phase separation active power and reactive power functions. Electrical energy should be accumulated and stored separately for electric energy and total electrical energy at each time period such as tips, peaks, flats, and valleys. And it can also store and display the power of the previous 12 months.
3.2. 3.2 It can measure, store and display the operating parameters and states of ABC such as each phase voltage, current, total and three-phase active reactive power, three-phase active reactive power, total and three-phase power factor and frequency of the current electricity meter. And it has overload protection function.
3.3 There are two sets of rates (sharp, peak, flat, valley) and periods that can be programmed arbitrarily, and another set of rates and periods can be start to used at the set time point. Each set of rate time periods can be set with at least 2 time zones for a year. At least 14 time periods can be set within 24 hours. The minimum time period interval is 15 minutes. The time period can be set across zero points.
3.4 Record the maximum demand and occurrence time of forward active, reverse active, positive reactive and reverse active power in that month.
3.5It has freezing functions such as instantaneous freezing, regular freezing, daily freezing, agreed freezing and hour freezing.
3.6 It has the function of event recording such as zero clearing, programming, proofread, power down, pulling and closing the brake, etc.
3.7 Remote disconnection and power transmission function. Power off command is issued through communication interface such as RS485 to cut off the user's load loop; Or issue a power transmission instruction to turn on the user load loop.
3.8Active upload / bidirectional transparent transmission function. Actively upload the data to the corresponding platform through the LoRaWAN wireless network, with a default interval of 4 hours (settable).
3.9 After the meter is powered on and the LoRaWAN module is connected to the network, the meter is automatically calibrated.

Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 2
LCD full-screen display schematic diagram (as shown above)
No. LCD figure explain
1 PREMON POS NEG ∑ T1 T2 T3 T4 Current and last month, forward and reverse, cumulative total electricity consumption and each rate
2 A B C ABC three-phase state, electric energy, instantaneous amount indication
3 DEMAND Maximum monthly demand
4 REMAIN Overdraw and residual status indication
5 Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 3 Network status indicator (none)
6 8888:8.8:8.8 cos Φ kvarh kW kWh V A Data display and the corresponding unit symbol
7 Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 4 Represents periods sets 1 and 2
8 Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 5 Indicates current rate status (peak valley)
9 Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 6 Insufficient voltage indicator of Battery or supercapacitor
10 Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 7 Three-phase voltage or current out- of-phase indicator
l Overdraw indication: overdraft electricity when "surplus" seconds flash, overdraft power off power when "surplus"speeds flash.
l Out- of-phase indication: When ABC is out of phase, the corresponding character of ABC in the lower row flashes seconds.
l Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 7Wrong phase indication: this indicator seconds flashes when ABC three-phase voltage is wrong phase; this indicator speeds flashes when ABC three-phase current is wrong. This indicator does not appear when there are missing phases.

The electricity meter uses a bright, long-life LED as a pulse indicator light.
It has active power pulse indicator light: red, usually go out, flashing when measuring active power.
It has reactive power pulse indicator light: red, usually go out, flashing when measuring active power.
Trip indicator light: yellow. Often out indicates the relay closed state.Often bright indicates the relay off state.
LoRaWAN module status indicator: green. Often bright indicates that is online, flashing is going online.

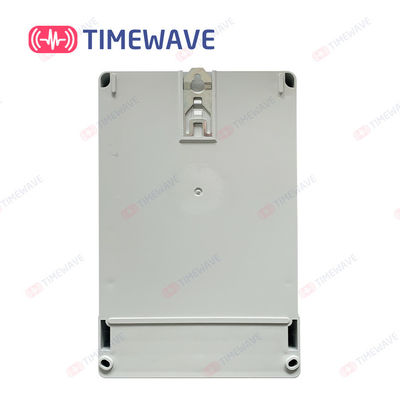

5. APPEARANCE DESCRIPTION AND INSTALLATION WIRING
Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 9
5.2.1 Weak current terminal wiring diagram
Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 10
NO: Tritrip trip
N: The trip is public
NC: Tritrip is often closed
T +: High multifunction T-: Low multifunction
A: The RS485 A line B: The RS485 B line P: Active pulse Q: reactive pulse
- -: Pulse Commons

5.2.2 Wiring diagram of the three-phase four-wire mutual inductance table
Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 11
5.2.3 Wiring diagram of three-phase four-wire straight-through meter table
Smart Secure Three Phase Energy Meter IoT 4G Wifi Wireless Energy Monitoring System 12
The electricity meter shall be installed indoors as far as possible. Special instrument box protection shall be used for outdoor installation. The installation bottom plate shall be fixed on the wall with strong fire resistance and not easy to vibration. There must be no corrosive gases in the surrounding air where the meter is installed. Avoid dust, salt spray, etc.
When using the electricity meter, the wiring must be conducted strictly according to the wiring diagram in the tail cover of the meter. It is recommended to use copper wire for the lead connected to the terminal seat. The screws of the fixed lead in the terminal seat should be tightened to avoid burning the electricity meter due to bad contact and heating.
6. TRANSPORTATION AND STORAGE
Ammeters must be transported and stored under original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and are transported and stored in accordance with GB / T15464-1995 General Technical Conditions for Instrument Packaging. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.

7. WARRANTY PERIOD AND AFTER-SALES SERVICE
If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.
