Wireless LoRaWAN Gas Meter IoT Smart Prepaid Electricity Meters For Tenants Home
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type YW-TW |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 80-550/ set |
| Packaging Details | Customizable packaging |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | LoRaWAN Smart Gas Meter | Theory | Electronic Meter |
|---|---|---|---|
| Installation | Direct Connected | Application | Civil, Industrial |
| High Light | Wireless LoRaWAN Gas Meter,Smart LoRaWAN Gas Meter,Tenants Prepaid Electricity Meters |
||
Product Description

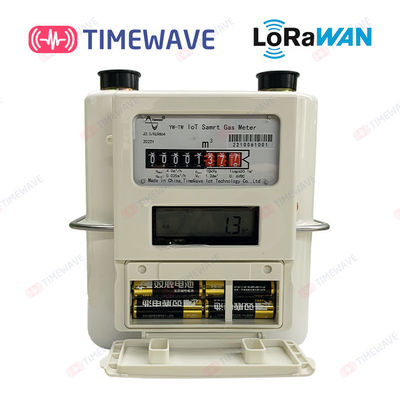

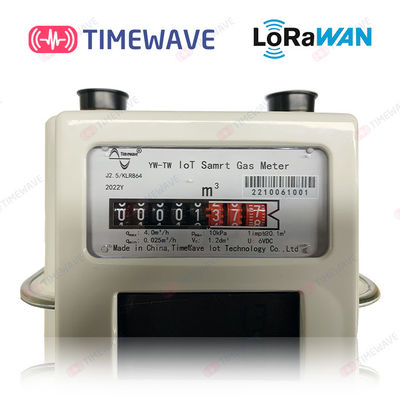

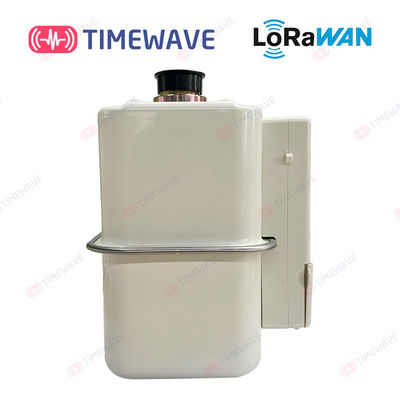

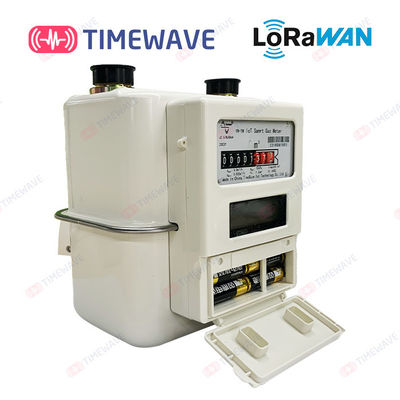

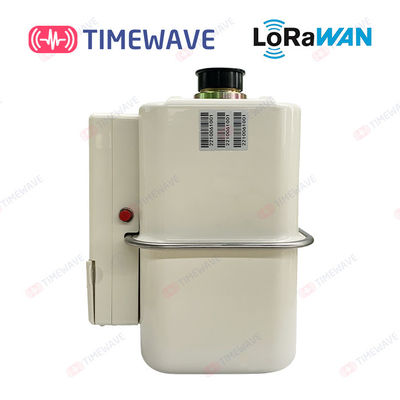

LoRaWAN Wireless IoT Smart Gas Meter LCD Screen Prepaid Electricity Meters for Tenants Home Use
- Product Overview
Intelligent gas meter is a new generation of centralized reading gas meter terminal. It is applicable to the flow measurement of natural gas, liquefied petroleum gas, artificial gas and other gases. It integrates gas meter metering, remote reading and monitoring. The meter has the characteristics of high reliability, high accuracy and low power consumption.
Type YW-TW intelligent gas meter based on the IoT adopts LoRaWAN/CAT.1 wireless transmission technology. Automatically upload gas consumption data to the application platform to realize remote monitoring of gas meter usage status. It solves the problems of the traditional gas meter, such as the difficulty of over-reading the meter at home, the difficulty of paying the fee,and the inaccuracy of the supply and marketing difference.Explosion-proof sign ExibIIBT3 Gb. It is applicable to Zone 1 and Zone 2, containing IIA-IIB and T1-T3 explosive gas mixture.
- Functions and features
1. Adopt LoRaWAN wireless technology. Effectively increase the anti-interference ability of the communication system and improve the accuracy of the received data.
2. The gas meter adopts the form of system prepayment. The valve switch of the gas meter is realized by the command from the system platform.
3. Timing (once a day)(settable) and key wake-up to transfer data to the platform. It improves the response speed of meter reading and reduces battery energy consumption.
4. When the voltage is low or abnormal,the LCD screen will automatically display the fault information, beep the alarm, and close the valve.
5. It has a built-in antenna.The transmission signal is stable and reliable.
6. The platform can remotely check the user's gas consumption,battery usage,and remotely control the valve switch of the gas meter.
7. It has the function of pulse signal open circuit self-inspection,which can effectively ensure the accuracy of gas meter measurement.
- Specifications & technical parameters
|
Specifications |
G(J)1.6 |
G(J)2.5 |
G(J)4 |
|
Nominal flow(m3 /h) |
1.6 |
2.5 |
4 |
|
Maximum flow(m3 /h) |
2.5 |
4.0 |
6.0 |
|
Minimum flow(m3 /h) |
0.016 |
0.025 |
0.040 |
| Working Pressures(kPa) | ≤30 |
| Total Pressure Loss(Pa) | ≤250 |
| Accuracy Level | 1.5 Class |
| Basic Error Lines | qmin≤q< qt ±3.0% qt≤q≤qmax ±1.5% |
| The tightness of the machine | It can last for 3 minutes without leakage under 1.5 times of the maximum working pressure |
| Operating Ambient Temperature(℃) | -25℃～ +40℃ |
| Inlet and Outlet Connector Threads | M30×2 |
| Maximum Display Capacity of LCD(m3) | 999999 |
| Maximum reading of base meter(m3) | 99999.999 |
| Power supply mode | Four AA Alkaline dry batteries(AA LR6 1.5V) |
| LoRaWAN frequency band (MHz) |
CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,
Custom Channels
|
| Barrier-free meter reading distance | >3000m |
| Compliant standards | GB/T 6968-2019,GB/T 3836-2021 |
- Display Description
For more details please contact us directly!
- Packaging, Transportation and Storage
1. The gas meter is packed in a carton after being packed with shockproof foam material, and should not be directly affected by rain and snow during transportation.
2. Upward according to the sign to prevent to be harmed by crushing, impact and other damage, and should be carefully and gently when handling, and barbaric loading and unloading are not allowed.
3. The storage environment of the gas meter should be dry, well ventilated, no corrosive gas, the ambient temperature is -25 °C ~ +60 °C, and the relative humidity is 45%RH~75% RH.
- Note
1. It is not allowed to replace components or structures that affect the explosion-proof performance at will, so as not to affect the explosion-proof performance.
2. Warning sign: Potential electrostatic charge is dangerous. During the normal use, maintenance and cleaning of gas meters, we should avoid the ignition hazard caused by electrostatic charges. Do not touch and wipe the equipment when it is used in explosive environment. If it is necessary to wipe and touch, it should be carried out in a well-ventilated, no gas leakage place. Wipe the shell with a wrung wet cloth. And it is strictly forbidden to wipe the shell with a dry cloth!
3. The battery must be replaced with the same type of battery under the condition of good ventilation and no gas leakage.
