Wireless LoRaWAN Energy Meter Smart IoT Three Phase Electric Meter
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type DTZY2397 |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 60-120/ set |
| Packaging Details | Each piece is packed in one carton, 10 sets per carton |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Three Phase Smart Meter | Material | Flame Retardant |
|---|---|---|---|
| Display | LCD Screen | Warranty | 1.5 Years Guarantee |
| Accuracy | 1 Or 2 Class | Power Meter Connection | Terminal |
| Product | Single/Three Phases Smart Energy Meter | Customization | OEM/ODM |
| Standards | IEC62053-21, DL/T645-2007 | Rated Voltage Un | 220V/3*220v/380v |
| Power Grid Frequency | 50Hz | Operating Voltage | 80% Un ～ 115% Un |
| Rated Current Limit Ib | 5A | Maximum Current Imax | 80A/100A |
| Starting Current | 0.4% Ib | Connectivity Protocol | NB-iot/LoraWan |
| Highlight | Wireless LoRaWAN Energy Meter,Smart LoRaWAN Energy Meter,IoT Three Phase Electric Meter |
||
Product Description

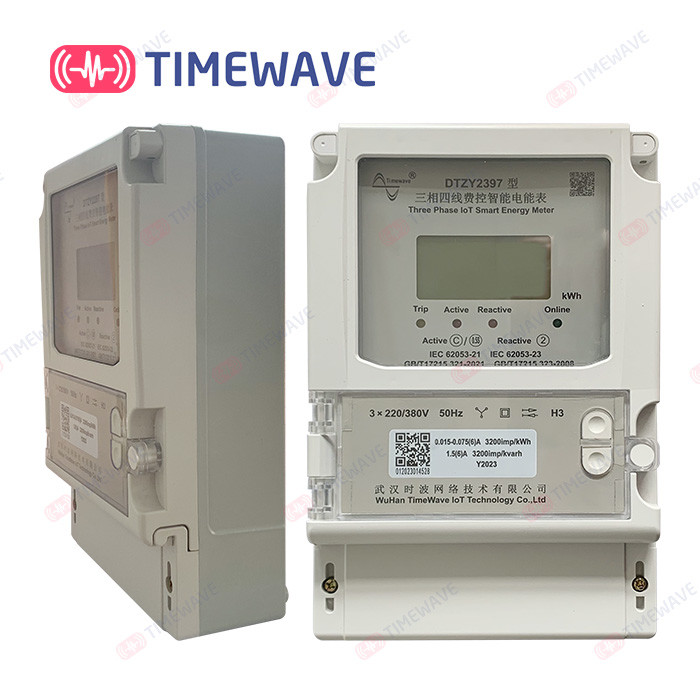

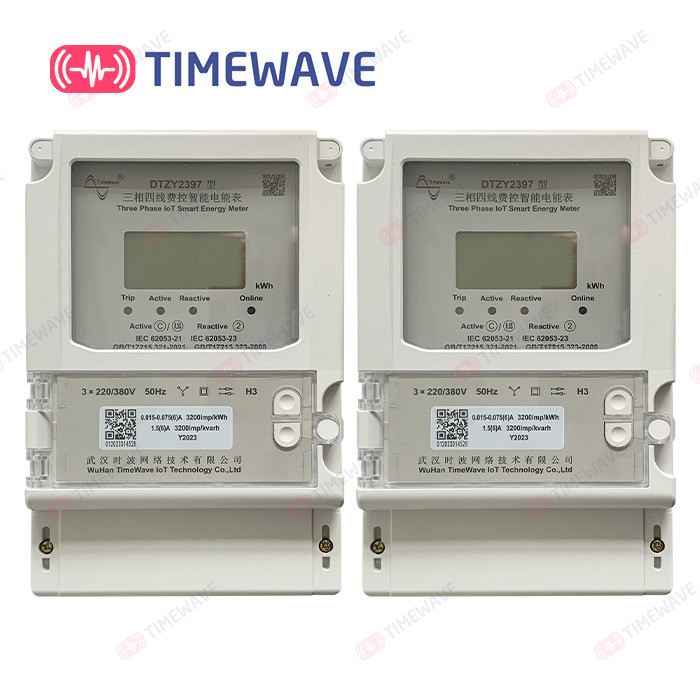

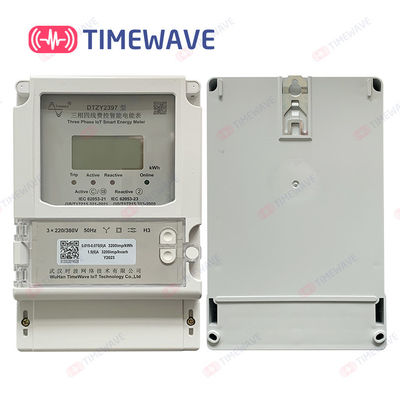

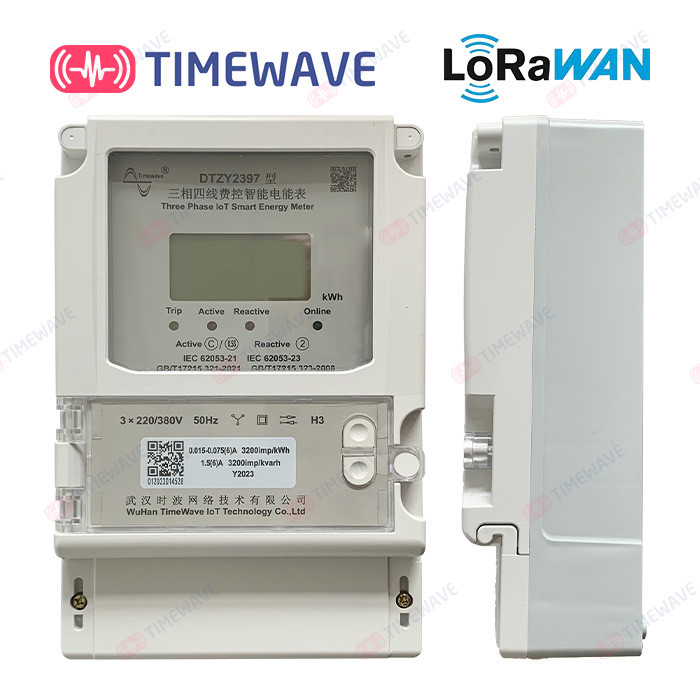

Lorawan Wireless Three Phase Smart Electric Energy Power Meter LCD Display IoT Insulation Corrosion Resistance
- Product Overview
DTZY2397 three-phase four wire charge control intelligent electric energy meter is a new generation of intelligent high-tech remote electric energy metering product. It is based on MCU+measurement chip technology. Large scale digital signal processing chip is adopted. It is designed and manufactured according to the relevant international (IEC) standards of electric energy meters and China's electric power standards. With LoRaWAN/CAT1/Bluetooth wireless communication modules, communication distance and networking problems are solved. It has the characteristics of high precision, low power consumption and good stability. An important part of the modernization of distribution management can be realized without complex cabling. It can be widely used in the measurement of three-phase AC power in cities, rural areas or factories and enterprises.
- Highlights:
1. Metering positive active, negative active and ABC split phase active electric energy function. It can measure, store and display the ABC voltage, current, total and three-phase active power, total and three phase power factor, frequency and other operating parameters and status of the current watt hour meter. It has overload protection function.
2. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
3. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours (settable).
- Specifications & technical parameters
|
Qualification |
Three-phase direct meter |
Three-phase CT meter |
|
Standards |
IEC62053-21, DL/T645-2007 |
|
|
Rated voltage |
3×220/380V |
3×220/380V |
|
Operating voltage range |
80%-115% |
80%-115% |
|
Rated flow limit Ib |
5A |
1.5A |
|
Maximum current: Imax |
100A |
6A |
|
Starting current |
0.4% Ib |
0.2% Ib |
|
Power consumption |
Non communication state≤1.5W , In communication state≤3W |
|
|
Power grid frequency |
50Hz |
50Hz |
|
Frequency range |
±2% |
±2% |
|
Active measurement accuracy |
Class 1/B |
Class 0.5, S/C |
|
Reactive measurement accuracy |
Class 2 |
Class 2 |
|
Active pulse constant |
400(imp/kWh) |
3200(imp/kWh) |
|
Reactive pulse constant |
400(imp/kWh) |
3200(imp/kWh) |
|
Clock precision |
±0.5S/d(23℃) |
±0.5S/d(23℃) |
|
Normal operating temperature range |
-40° C ～ +70° C |
-40° C ～ +70° C |
|
Extreme operating temperature range |
-40° C ～ +70° C |
-40° C ～ +70° C |
|
Transportation and storage temperature range |
-40° C ～ +70° C |
-40° C ～ +70° C |
|
Power dissipation |
<1.5W ,10VA |
<1.5W ,10VA |
|
The time that the blackout clock preserves |
>24h |
>24h |
|
The RS485 Interface |
The Default is 2400bps. 1200bps,2400bps,4800bps and 9600bps were available |
|
|
LoRaWAN frequency |
CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4, Custom Channels |
|
- Display items
|
No. |
LCD figure |
Meaning |
| 1. |
PREMON POS NEG ∑ T1 T2 T3 T4 |
Current and last month, forward and reverse, cumulative total electricity consumption and each rate |
| 2. | A B C | ABC three-phase state, electric energy, instantaneous amount indication |
| 3. | DEMAND | Maximum monthly demand |
| 4. | DEMAND | Overdraw and residual status indication |
| 5. |
|
Network status indicator (none) |
| 6. | 8888:8.8:8.8 cos Φ kvarh kW kWh V A | Data display and the corresponding unit symbol |
| 7. |
|
Represents periods sets 1 and 2 |
| 8. | |
Indicates current rate status (tip peak flat valley) |
| 9. |
|
Insufficient voltage indicator of Battery or supercapacitor |
| 10. |
|
Three-phase voltage or current out- of-phase indicator |
- Installation
Live installation of wiring is strictly prohibited!
The electricity meter shall be installed indoors as far as possible. Special instrument box protection shall be used for outdoor installation. The installation bottom plate shall be fixed on the wall with strong fire resistance and not easy to vibration. There must be no corrosive gases in the surrounding air where the meter is installed. Avoid dust, salt spray, etc.
When using the electricity meter, the wiring must be conducted strictly according to the wiring diagram in the tail cover of the meter. It is recommended to use copper wire for the lead connected to the terminal seat. The screws of the fixed lead in the terminal seat should be tightened to avoid burning the electricity meter due to bad contact and heating.
