LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter

Place of Origin Hubei ,China
Brand Name TimeWave
Certification ISO/IEC 20000-1, ISO/IEC 27001,I SO/IEC 9001
Model Number DDZY2397
Minimum Order Quantity Negotiable
Price EXW US$ 50-100/set
Packaging Details 20pcs/carton
Delivery Time 3-5 weeks after receive the payment
Payment Terms T/T, L/C
Supply Ability 2000 set/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details

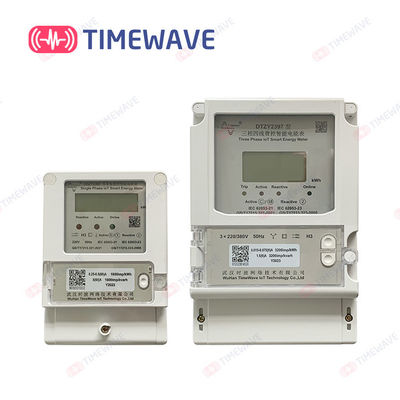

Product Single/Three Phases Smart Energy Meter Customization OEM/ODM
Phase Single Standards IEC62053-21, DL/T645-2007
Power Grid Frequency 50Hz Rated Voltage Un 220V/3*220v/380v
Operating Voltage 80% Un ~ 115% Un Rated Current Limit Ib 5A
Maximum Current Imax 80A/100A Starting Current 0.4% Ib
Connectivity Protocol NB-iot/LoraWan
Highlight

LoRaWAN Electric Kwh Meter 1 Phase

,

220V Electric Kwh Meter 1 Phase

,

LoRaWAN Digital Power Factor Meter

Leave a Message
Product Description
LoRaWAN 220V Energy Frequency Electric Smart Kwh Meter Digital Power Factor Meter



Single-phase IOT smart energy meter
Electricity meter operating instruction
LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 0

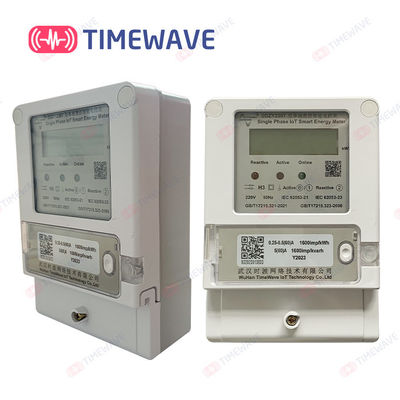

The intelligent electricity meter has the functions of electric energy measurement, power parameter measurement, time-sharing measurement, real-time freezing, on-off control, LoRaWAN and RS485 communication etc, which is suitable for single-phase power consumption occasions.
LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 1
2. THE MAJOR TECHNICAL INDEXES
QualificationSingle phase direct table
StandardsIEC62053-21, IEC62052-11, DL/T645-2007
Rated voltage un220V
Operating voltage range80% Un ~115% Un
Rated current limit ib5A
Maximum current: Imax80A
Starting current0.4% Ib
Power grid frequency50Hz
Frequency range±2%
Active measurement accuracyClass B / 1
Reactive measurement accuracyClass 2
Active pulse constant1600(imp/kWh)
Reactive pulse constant1600(imp/kvarh)
Clock precision±0.5S/d (23℃)
Normal operating temperature range-25℃~+55℃
Extreme operating temperature range-40℃~+70℃
Transportation and storage temperature range-40℃~+70℃
Power dissipation<1.5W ,10VA
The time that the blackout clock preserves>24h
The RS485 interfaceThe default 2400bps, 1200bps, 2400bps, 4800bps, and 9600bps are optional
LoraWan frequency864-865MHz

3. THE PRINCIPLE FUNCTIONS
3.1. It has measure forward and reverse active energy functions. Electrical energy should be accumulated and stored separately for electric energy and total electrical energy at each time period such as tips, peaks, flats, and valleys. And it can also store and display the power of the previous 12 months.
3.2. It can measure,store and display the voltage, current, power, power factor, frequency and other operating parameters and status of the current electricity meter. And it has overload protection function.
3.3. There are two sets of rates (sharp, peak, flat, valley) and periods that can be programmed arbitrarily, and another set of rates and periods can be start to used at the set time point. Each set of rate time periods can be set with at least 2 time zones for a year. At least 14 time periods can be set within 24 hours. The minimum time period interval is 15 minutes. The time period can be set across zero points.
3.4. It has freezing functions such as instantaneous freezing, regular freezing, daily freezing, agreed freezing and hour freezing.
3.5. It has the function of event recording such as zero clearing, programming, proofread, power down, pulling and closing the brake, etc.
3.6. Remote disconnection and power transmission function. Power off command is issued through communication interface such as RS485 to cut off the user's load loop; Or issue a power transmission instruction to turn on the user load loop.
3.7. Active upload / bidirectional transparent transmission function. Actively upload the data to the corresponding platform through the LoRaWAN wireless network, with a default interval of 4 hours (settable).
3.8. After the meter is powered on and the LoRaWAN module is connected to the network, the meter is automatically calibrated.
LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 2
LCD full-screen display schematic diagram (as shown above)

4.2. Electricity meter is displayed by LCD
The specific display items are listed as follows:
No.LCD figureexplain
1LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 3
Character that can indicate that:
Current, previous month, the previous twelve months cumulative total electricity consumption and electricity consumption at various rates.
2LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 4Data display and the corresponding unit symbol
3LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 5
1) In communication
2) Reverse power indication
3) ① ② represents periods sets 1 and 2
4) Undervoltage indication of the battery or supercapacitor voltage
5) Allow the programming status indication
6) Three times of password verification error indication
4T1 T2 T3 T4Indicates current rate status (peak valley)
5
----ON
----OFF
----ON is relay state on
----OFF is relay state off

4.3. Status indicator lamp
The electricity meter uses a bright, long-life LED as a pulse indicator light.
It has active power pulse indicator light: red, usually go out, flashing when measuring active power.
LoRaWAN/NB-I o T/C at.1 Module status indicator: green. Always on indicates online, and flashing indicates going online.
5. APPEARANCE DESCRIPTION AND INSTALLATION WIRING
5.1. Installation drawing (unit: mm)
LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 6
LoRaWAN Electric Kwh Meter 1 Phase 220V Smart Digital Power Factor Meter 7
Direct access
Of these, 5,6 are reactive pulse output. 7,8 are active pulse output. 9,10 are multifunctional clock output. And 11,12 are RS485 output.
Live installation of wiring is strictly prohibited!
The electricity meter shall be installed indoors as far as possible. Special instrument box protection shall be used for outdoor installation. The installation bottom plate shall be fixed on the wall with strong fire resistance and not easy to vibration. There must be no corrosive gases in the surrounding air where the meter is installed. Avoid dust, salt spray, etc.
When using the electricity meter, the wiring must be conducted strictly according to the wiring diagram in the tail cover of the meter. It is recommended to use copper wire for the lead connected to the terminal seat. The screws of the fixed lead in the terminal seat should be tightened to avoid burning the electricity meter due to bad contact and heating.
Ammeters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and shall be transported and stored according to GB / T 25480-2010 Basic Environmental Conditions for Instrument Transportation and Storage and Test Methods as stipulated in 2010. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.
7. WARRANTY PERIOD AND AFTER-SALES SERVICE
If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.
