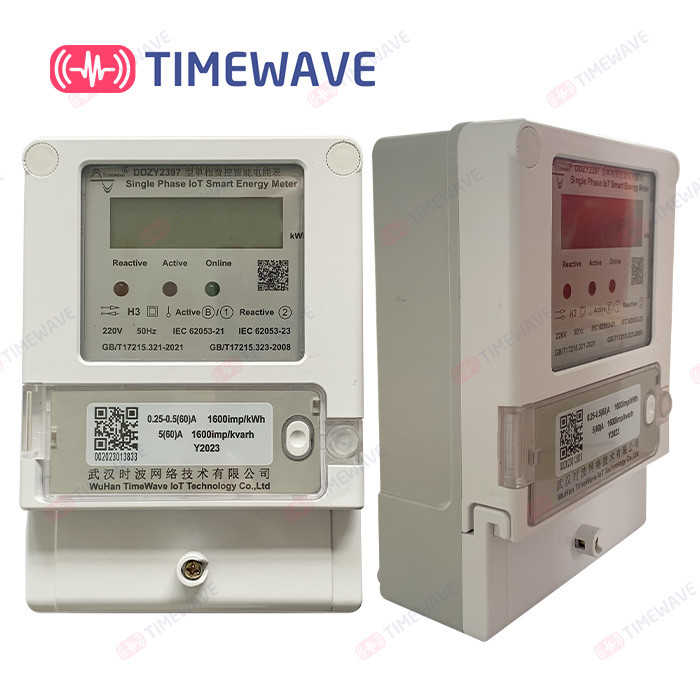

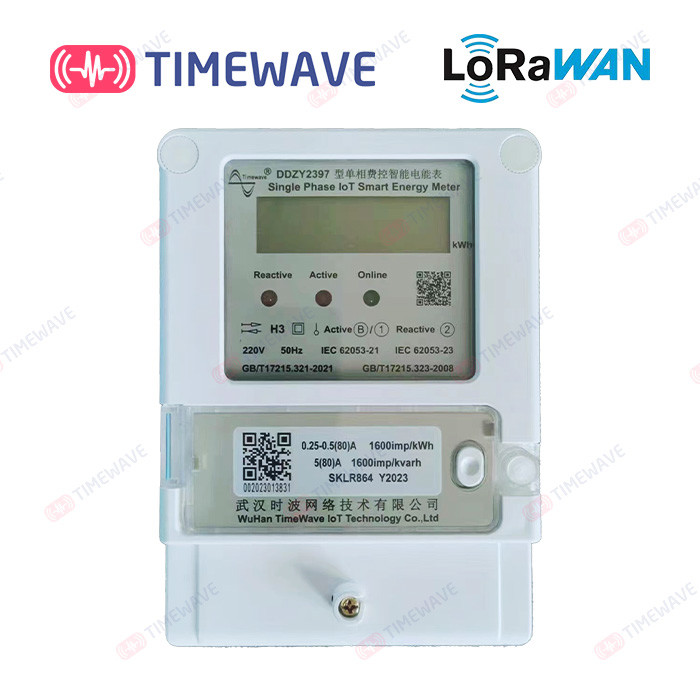

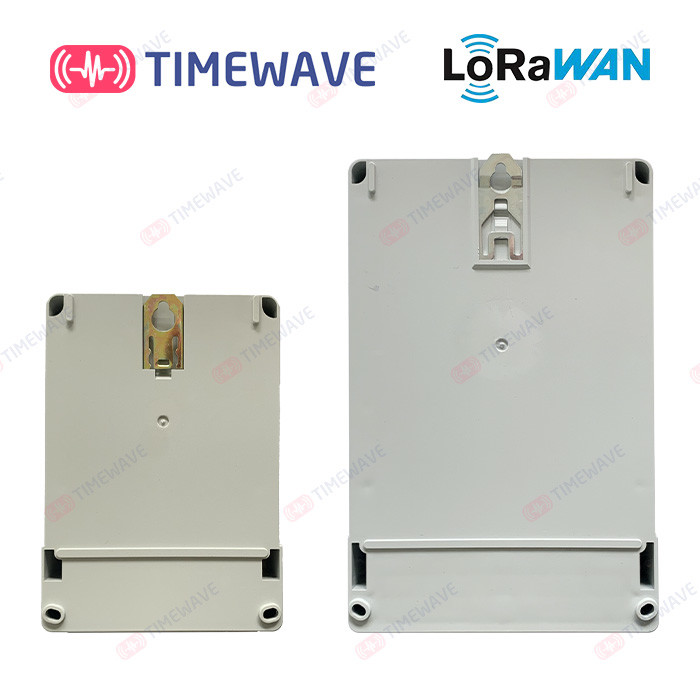

LCD screen Single Phase Electric Energy Meter LoRa 220V Power Consumption Meter

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type DDZY2397
Minimum Order Quantity Negotiable
Price EXW price US$ 40-60/ set
Packaging Details Each piece is packed in one carton, 20 sets per carton
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 2000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Single-phase Load Identification Electric Energy Meter Standards IEC62053-21, DL/T645-2007
Display LCD Screen Demension 158mm×112mm×58mm
Installation Direct Connected Weight 0.7kg
Working Life >10 Years Color Off-white
Product Single/Three Phases Smart Energy Meter Customization OEM/ODM
Rated Voltage Un 220V/3*220v/380v Power Grid Frequency 50Hz
Operating Voltage 80% Un ~ 115% Un Rated Current Limit Ib 5A
Maximum Current Imax 80A/100A Starting Current 0.4% Ib
Connectivity Protocol NB-iot/LoraWan
High Light

OEM Single Phase Electric Energy Meter


LoRa Single Phase Electric Energy Meter


LCD Screen 220V Power Consumption Meter

Leave a Message
Product Description

Single-phase load identification electric energy meter for control the power consumption of apartments

  • Product Overview

DDZY2397 single-phase charge control intelligent electric energy meter adopts dedicated large-scale integrated circuit. Apply digital sampling processing technology and SMT technology. It has the characteristics of less peripheral components, simple structure, high reliability, low power consumption, long service life, etc. In addition to the active power metering function, there are many other functions, such as online power display, one-in-two-out dual-control, one-in-two-out three-control and load identification, intelligent anti-theft, overload control, remote centralized meter reading through LoRaWAN/NB-IoT/Cat. 1/Bluetooth wireless network. It can be used to control the power consumption of students or staff apartments. Under the normal operation of air conditioning and other equipment, it can effectively reduce the hidden danger of electricity safety and reduce the waste of electricity.​


  • Functions and features
1. Double circuit independent measurement of positive and negative active electric energy. The total, main and secondary circuit active electric energy can be set. The electric energy shall be accumulated and stored separately for the electric energy and total electric energy at the tip, peak, flat, valley and other periods. It can store and display various electric quantities in the last 12 months.
2. It can measure, store and display the current voltage, current, power, power factor, frequency and other operating parameters and status of the electric energy meter.
3. Current and power limiting function by time: It has two sets of time limiting meters by time. It can automatically switch according to the switching time of two sets of time limit tables. Each set of timesharing time limit table supports up to 10 timesharing settings. When the current/power is in overrun use and exceeds the overrun use time, switch off and power off. It can be recovered automatically when the time after power failure reaches the power recovery time.
4. Fixed power time limit function: when the ammeter is within a certain power fluctuation range for a long time and exceeds the fixed power threshold, it will be switched off after reaching the fixed power and can be used for a long time. Switch on after reaching the set power supply recovery delay after switching on.
5. Sudden change power limit function: when the power increase value of the ammeter exceeds the power sudden change threshold value during the sudden change period, the switch will be opened. Switch on after reaching the set power supply recovery delay after switching on.
6. There are two sets of rates (Tip, peak, flat and valley) and time periods that can be programmed at will, and another set of rates and time periods can be used at the set time point. At least 2 time zones can be set for each set of rate periods throughout the year. At least 14 time periods can be set within 24 hours; The minimum interval between periods is 15 minutes. The time period can be set across zero points.
7. It has such freezing functions as instantaneous freezing, regular freezing, daily freezing, agreed freezing, and hourly freezing.
8. It has the functions of event recording such as zero clearing, programming, timing, power failure, switching on and switching off.
9. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
10. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours (settable).
11. Comply with the national standard GB/T17215.321-2008/2021. The communication protocol conforms to DL/T645-2007 .
  • Specifications & technical parameters
Packaging Caron
Rated voltage
Working voltage
80%~120% (rated voltage)
Calibration current

5(60)A/0.25 ~ 0.5(60)A

Rated operating frequency
Pulse constant
Overall power consumption
Starting current
Overall dimensions
Working life
>10 years
Class 2/Level A,Class 1/Level B
Data upload
By default, data is uploaded
every 4 hours (time can be set)
  • Display description
After power on, the LCD screen will display fully for 3 seconds. Then display the current active electric energy and current active power. Alternate display.
Full display                                                    Current active electric energy                          Current active power
LCD screen Single Phase Electric Energy Meter LoRa 220V Power Consumption Meter 0     LCD screen Single Phase Electric Energy Meter LoRa 220V Power Consumption Meter 1       LCD screen Single Phase Electric Energy Meter LoRa 220V Power Consumption Meter 2
LCD full display interface                                     0.9 kWh                                                                 1099.2W
Indicator display description
LCD screen Single Phase Electric Energy Meter LoRa 220V Power Consumption Meter 3
• Online: Constant light indicates that it has been connected to the network. Off or flashing indicates no network access.
• Power off: the normally lit relay is disconnected. The extinction relay is switched on.
• Pulse: flickers when measuring functional power. The power will be off when there is no measurement.


  • wiring diagram

LCD screen Single Phase Electric Energy Meter LoRa 220V Power Consumption Meter 4

The main terminal wiring is as shown in the fgure: 1 is Phase In. 2 is Phase Out. 3 is Zero In. 4 is Zero Out.
There are 4 auxiliary terminals above the main terminal of the electricity meter.
Among them, 9 and 10 are metering pulse output. 11 and 12 are 485 communication terminal blocks.
