Product Details
Name TimeWave 220V LoRaWAN Single-phase IoT Smart Wireless High Accuracy Energy Meter DDZY2397 Size 160mm × 112 Mm × 58 Mm
Work Life >10 Years Color Off-white
Voltage(V) 220 Pulse Constant(imp/kWh) 3200
Product Single/Three Phases Smart Energy Meter Customization OEM/ODM
Standards IEC62053-21, DL/T645-2007 Rated Voltage Un 220V/3*220v/380v
Power Grid Frequency 50Hz Operating Voltage 80% Un ~ 115% Un
Rated Current Limit Ib 5A Maximum Current Imax 80A/100A
Starting Current 0.4% Ib Connectivity Protocol NB-iot/LoraWan
High Light

1 Phase LoRaWAN Energy Meter

,

50Hz LoRaWAN Energy Meter

,

IoT High Accuracy Energy Meter

Leave a Message
Product Description

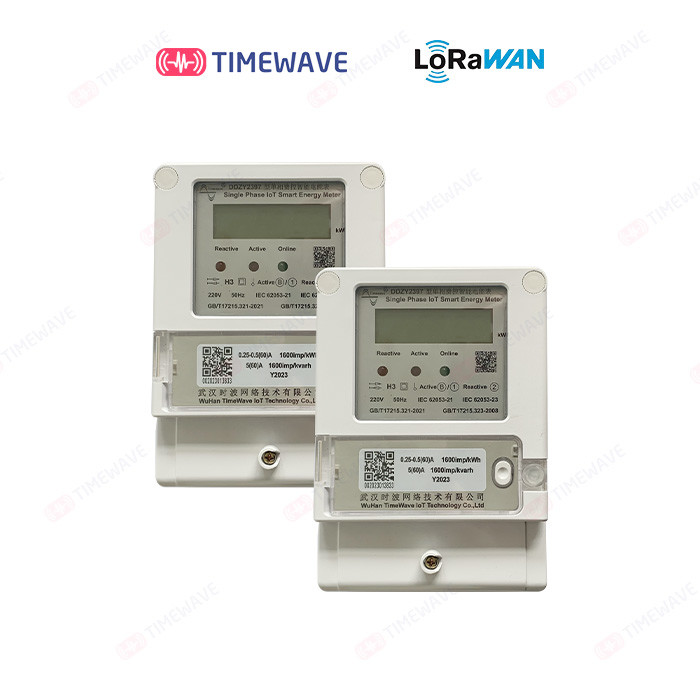

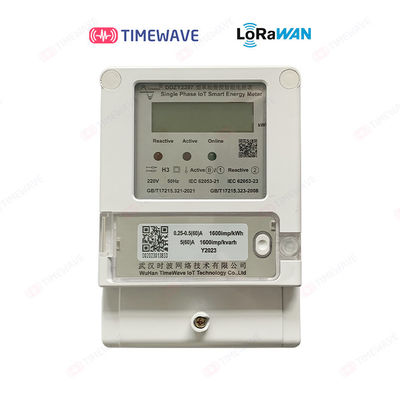

TimeWave 220V LoRaWAN Single-phase IoT smart wireless high accuracy energy meter DDZY2397



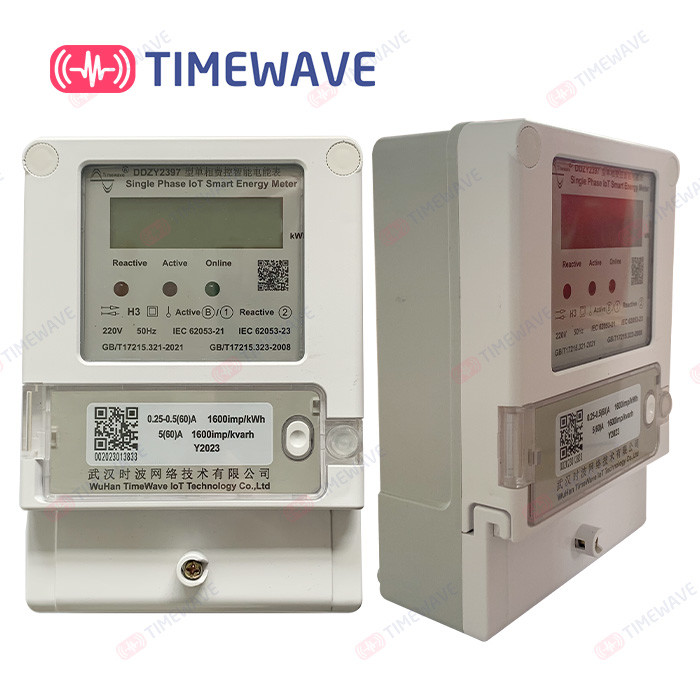

  • Product Overview
DDZY2397 single-phase IoT intelligent electric energy meter adopts digital signal processing chip, permanent storage of information, standard LoRaWAN communication interface, LCD and other technologies. The advanced SMT surface mounting process is adopted for the electric energy meter.
The shell is made of high-strength, flame retardant and environment-friendly materials, which is novel, beautiful and applicable. It has high insulation strength and corrosion resistance. The meter integrates many functions, including electric energy metering, information storage and processing, information interaction, etc.

  • Functions and features

1. Metering of positive and negative active electric energy. The electric energy shall be accumulated and stored separately for tip, peak, flat, valley and other periods and the total electric energy. It can store and display various electric quantities in the last 12 months.

2. It can measure, store and display the current voltage, current, power, power factor, frequency and other operating parameters and status of the electric energy meter. It has overload protection function.
3. There are two sets of rates (tip, peak, flat and valley) and time periods that can be programmed at will, and another set of rates and time periods can be used at the set time point. At least 2 time zones can be set for each set of rate periods throughout the year. At least 14 time periods can be set within 24 hours; The minimum interval between periods is 15 minutes. The time period can be set across zero points.
4. It has such freezing functions as instantaneous freezing, regular freezing, daily freezing, agreed freezing, and hourly freezing.
5. It has the functions of event recording such as zero clearing, programming, timing, power failure, switching on and switching off.
6. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
7. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWANwireless network. The default interval is 4 hours (settable).

  • Specifications & technical parameters
Specifications
Voltage(V) 220
Current(A) 5(60)A/0.25 ~ 0.5(60)A
Pulse constant(imp/kWh) 3200
Active measurement accuracy Class B/1
Reactive measurement accuracy Class 2
Frequency 50Hz
Power consumption 1.5W
Voltage range
Specified range 0.9Un ~ 1.1Un
Expansion range 0.8Un ~ 1.15Un
Limit range 0.6Un ~ 1.2Un
Clock accuracy
Specified temperature range ±1s/d
Reference temperature(23℃ ) ±0.5s/d
Starting current
Active power(Class 1) 0.004Ib
Reactive power(Class 2) 0.005Ib
Working

temperature

Specified working range -25℃~+ 60℃
Operating limit range -40℃ ~ + 70℃
Storage and transportation -40℃ ~ + 70℃
Operating
humidity
Annual average relative humidity < 75%RH
Natural distribution within 30 days of a year 95%RH
Occurs occasionally in other days 85%RH





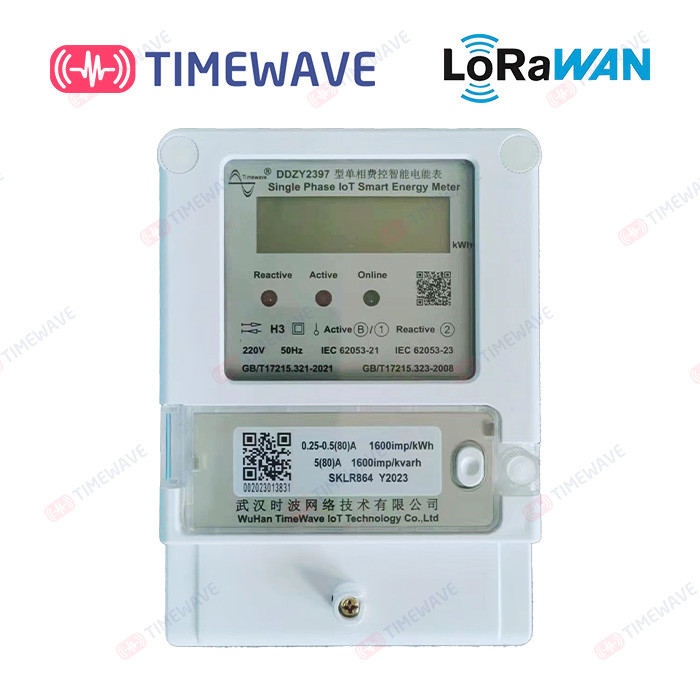

  • Display Description

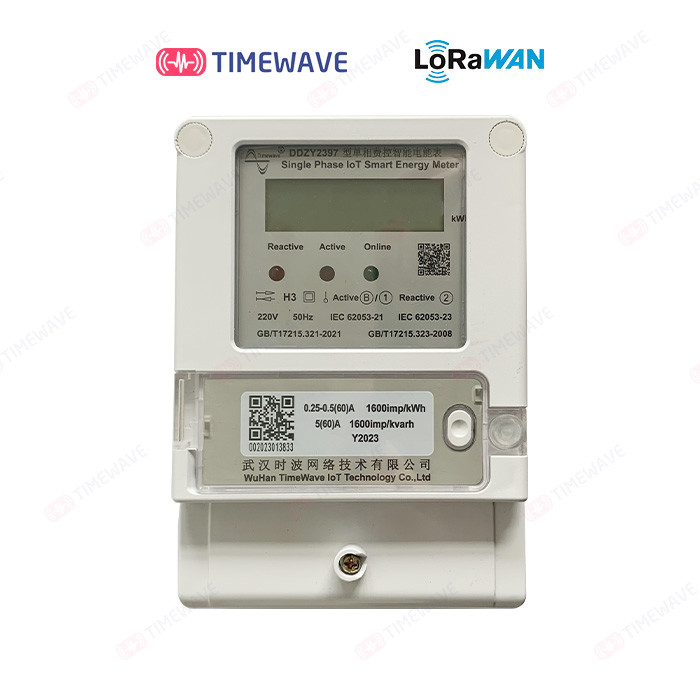

The electric energy meter adopts LCD display. It can indicate the cumulative total electricity consumption and electricity consumption at various rates of the current and last January to last December.

High Accuracy LoRaWAN Energy Meter IoT Wireless 50Hz 220V 1 Phase DDZY2397 0

Status indicator lamp:
The electricity meter uses a bright, long-life LED as a pulse indicator light.
It has active power pulse indicator light: red, usually go out, flashing when measuring active power.
LoRaWAN/Cat.1 Module status indicator: green. Always on indicates online, and flashing indicates going online.

  • Wiring diagram

High Accuracy LoRaWAN Energy Meter IoT Wireless 50Hz 220V 1 Phase DDZY2397 1

Among them, 5 and 6 are reactive pulse output (empty). 7 and 8 are active pulse output. 9 and 10 are clocks. 11 and 12 are RS485.
Live installation of wiring is strictly prohibited!
The electricity meter shall be installed indoors as far as possible. Special instrument box protection shall be used for outdoor installation. The installation bottom plate shall be fixed on the wall with strong fire resistance and not easy to vibration. There must be no corrosive gases in the surrounding air where the meter is installed. Avoid dust, salt spray, etc.
When using the electricity meter, the wiring must be conducted strictly according to the wiring diagram in the tail cover of the meter. It is recommended to use copper wire for the lead connected to the terminal seat. The screws of the fixed lead in the terminal seat should be tightened to avoid burning the electricity meter due to bad contact and heating.

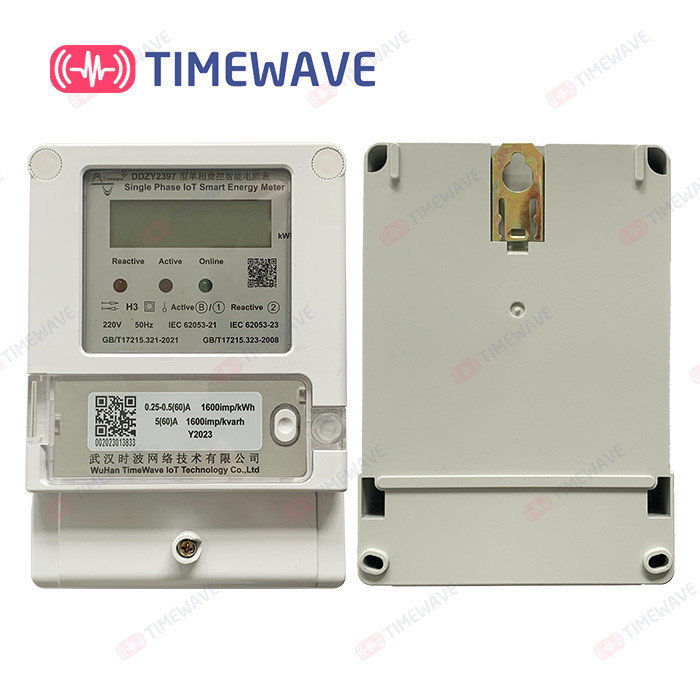

  • Overall dimension (unit: mm) L * W * H: 160mm × 112 mm × 58 mm

High Accuracy LoRaWAN Energy Meter IoT Wireless 50Hz 220V 1 Phase DDZY2397 2


  • TRANSPORTATION AND STORAGE

Ammeters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and shall be transported and stored according to GB / T 25480-2010 Basic Environmental Conditions for Instrument Transportation and Storage and Test Methods as stipulated in 2010. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.



  • WARRANTY PERIOD AND AFTER-SALES SERVICE

If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.
