LoRaWAN Wireless Transmission Iot Based Electricity Energy Meter 220V Smart Meter Solution

Place of Origin Hubei , China
Brand Name TimeWave
Certification ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001
Model Number Type DTZY2397
Minimum Order Quantity Negotiable
Price EXW price US$ 60-150/ set
Packaging Details Each piece is packed in cartons, with 10 sets in each box, and the gross weight of each box is about 12kg.
Delivery Time 3-5 weeks after receive the payment
Payment Terms L/C, T/T
Supply Ability 2000 sets per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standards IEC62053-21, DL/T645-2007 Qualification Three-phase Direct Table,Three-phase CT Table
Rated Voltage Un 3×220/380V Power Consumption Non Communication State≤1.5W , In Communication State≤3W
The RS485 Interface The Default Is 2400bps. 1200bps,2400bps,4800bps And 9600bps Were Available LoraWan Frequency CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,Custom Channels
Product Single/Three Phases Smart Energy Meter Customization OEM/ODM
Rated Voltage Un 220V/3*220v/380v Power Grid Frequency 50Hz
Operating Voltage 80% Un ~ 115% Un Rated Current Limit Ib 5A
Maximum Current Imax 80A/100A Starting Current 0.4% Ib
Connectivity Protocol NB-iot/LoraWan
High Light

220V Iot Based Electricity Energy Meter

,

220V Iot Based Electricity Energy Meter

,

Wireless Transmission Smart Meter Solution

Leave a Message
Product Description

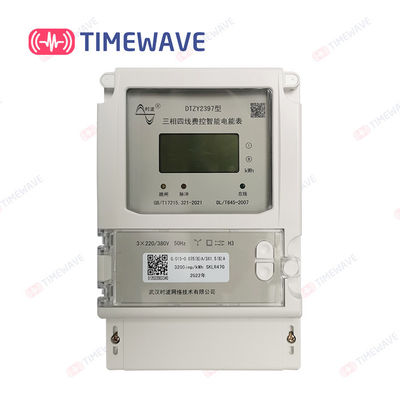

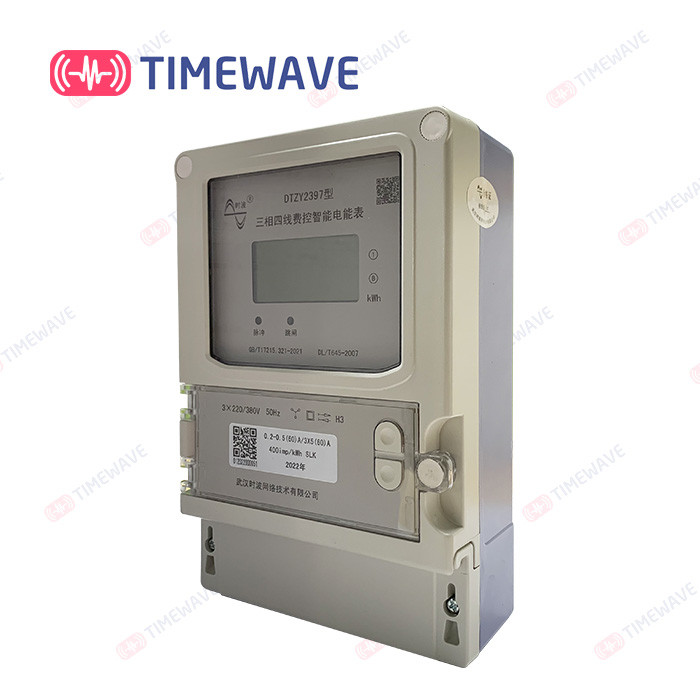

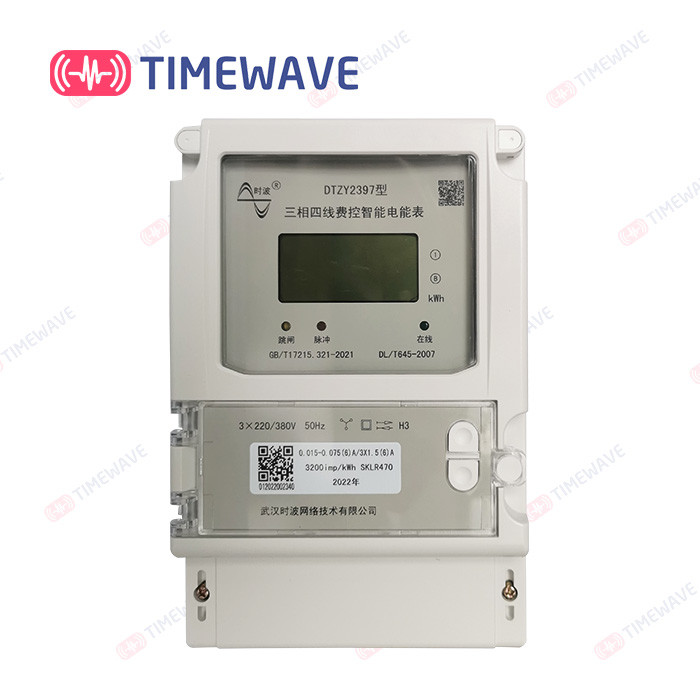

LoRaWAN Wireless Transmission Iot Based Electricity Energy Meter 220V Smart Meter Solution



  • Product Overview
DDZY2397 single-phase charge control intelligent electric energy meter is a fully digital intelligent electric energy meter developed by our company. Adopt SOC high integration chip. In addition to the active electric energy metering function, it also has a variety of functions such as online power display, intelligent power theft prevention, overload control, remote centralized meter reading, etc. The data is transmitted to thecorresponding platform through LoRaWAN/CAT1/Bluetooth wireless network. It has the characteristics of high precision, low power consumption and good stability,and can be widely used in the measurement of single-phase AC power in urban, rural or factory enterprises.

  • Highlights:
1. Metering of positive and negative active electric energy. The electric energy shall be accumulated and stored separately for tip,peak, flat, valley and other periods and the total electric energy. It can store and display various electric quantities in the last 12 months.
2. It can measure, store and display the current voltage, current, power, power factor, frequency and other operating parameters and status of the electric energy meter. It has overload protection function.
3. There are two sets of rates (tip, peak, flat and valley) and time periods that can be programmed at will, and another set of rates and time periods can be used at the set time point. At least 2 time zones can be set for each set of rate periods throughout the year.
At least 14 time periods can be set within 24 hours; The minimum interval between periods is 15 minutes. The time period can be set across zero points..
4. It has the functions of event recording such as zero clearing, programming, timing, power failure, switching on and switching off.
5. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.

  • Specifications & technical parameters
StandardsIEC62053-21, IEC62052-11, DL/T645-2007 220
Current(A)5(60)A/0.25~0.5(60)A
Pulse constant(imp/kWh)3200
Active measurement accuracyClass B/1
Reactive measurement accuracyClass 2
Frequency50Hz
Power consumption≤1.5W
Specified range0.9Un ~ 1.1Un
Expansion range0.8Un ~ 1.15Un
Limit range0.6Un ~ 1.2Un
Specified temperature range≤±1s/d
Reference temperature(23℃)≤±0.5s/d
Active power(Class 1)≤0.004lb
Reactive power(Class 2)≤0.005lb
Specified working range-25℃~+60℃
Operating limit range-40℃~+70℃
Storage and transportation-40℃~+70℃
Annual average relative humidity< 75%RH
Natural distribution within 30 days of a year95%RH
Occurs occasionally in other days85%RH
LoRaWAN frequencyCN470,RU864,IN865,EU868,US/AU915,KR920,AS923.1/2/3/4,
Custom Channels



  • Display items
No.LCD figureMeaning
1.LoRaWAN Wireless Transmission Iot Based Electricity Energy Meter 220V Smart Meter Solution 0

Character that can indicate that: Current,

previous month, the previous twelve months cumulative total electricity consumption and

electricity consumption at various rates.

2.LoRaWAN Wireless Transmission Iot Based Electricity Energy Meter 220V Smart Meter Solution 1Data display and the corresponding unit symbol
3.LoRaWAN Wireless Transmission Iot Based Electricity Energy Meter 220V Smart Meter Solution 21) In communication
2) Reverse power indication
3) ① ② represents periods sets 1 and 2
4) Undervoltage indication of the battery or supercapacitor voltage
5) Allow the programming status indication
6) Three times of password verification error indication
4.T1 T2 T3 T4Indicates current rate status (tip peak flat valley)
5.----ON
----OFF
----ON is relay state on
----OFF is relay state off




  • Installation
    Live installation of wiring is strictly prohibited!
    The electricity meter shall be installed indoors as far as possible. Special instrument box protection shall be used for outdoor installation. The installation bottom plate shall be fixed on the wall with strong fire resistance and not easy to vibration. There must be no corrosive gases in the surrounding air where the meter is installed. Avoid dust, salt spray, etc.
    When using the electricity meter, the wiring must be conducted strictly according to the wiring diagram in the tail cover of the meter. It is recommended to use copper wire for the lead connected to the terminal seat. The screws of the fixed lead in the terminal seat should be tightened to avoid burning the electricity meter due to bad contact and heating.



  • TRANSPORTATION AND STORAGE

Ammeters must be transported and stored under original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and are transported and stored in accordance with GB / T15464-1995 General Technical Conditions for Instrument Packaging. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.



  • WARRANTY PERIOD AND AFTER-SALES SERVICE

If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.

LoRaWAN Wireless Transmission Iot Based Electricity Energy Meter 220V Smart Meter Solution 3LoRaWAN Wireless Transmission Iot Based Electricity Energy Meter 220V Smart Meter Solution 4
