TimeWave 1 Phase Energy Meter Wireless IOT Energy Management System DDZY2397
| Place of Origin | China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type DDZY2397 |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 60-150/ set |
| Packaging Details | Each piece is packed in cartons, with 20 sets in each box |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Standards | IEC62053-21, DL/T645-2007 | Rated Voltage Un | 220V/3*220v/380v |
|---|---|---|---|
| Operating Voltage | 80% Un ～ 115% Un | Rated Current Limit Ib | 5A |
| The RS485 Interface | The Default 2400bps, 1200bps, 2 4 0 0 B P S , 4800bps , And 9600bps Are Optional | LoraWan Frequency | CN470,RU864,IN865,EU868,US/ AU915,KR920,AS923_1/2/3/4,Cu Stom Channels |
| Product | Single/Three Phases Smart Energy Meter | Customization | OEM/ODM |
| Power Grid Frequency | 50Hz | Maximum Current Imax | 80A/100A |
| Starting Current | 0.4% Ib | Connectivity Protocol | NB-iot/LoraWan |
| Highlight | IOT 1 Phase Energy Meter,ODM 1 Phase Energy Meter,Wireless IOT Energy Management System |
||
Product Description

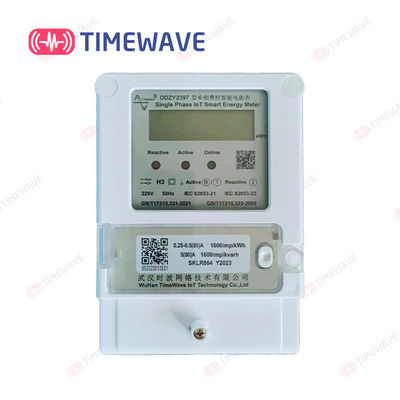

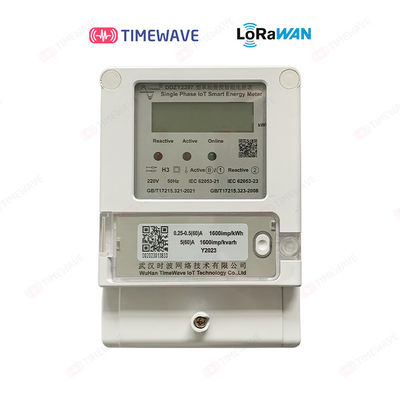

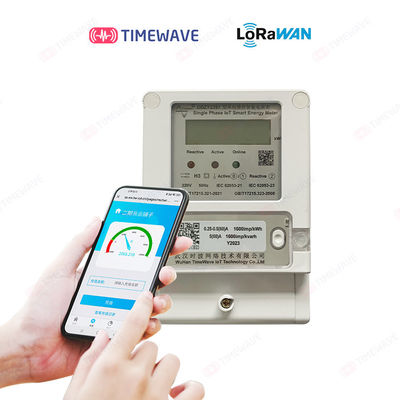

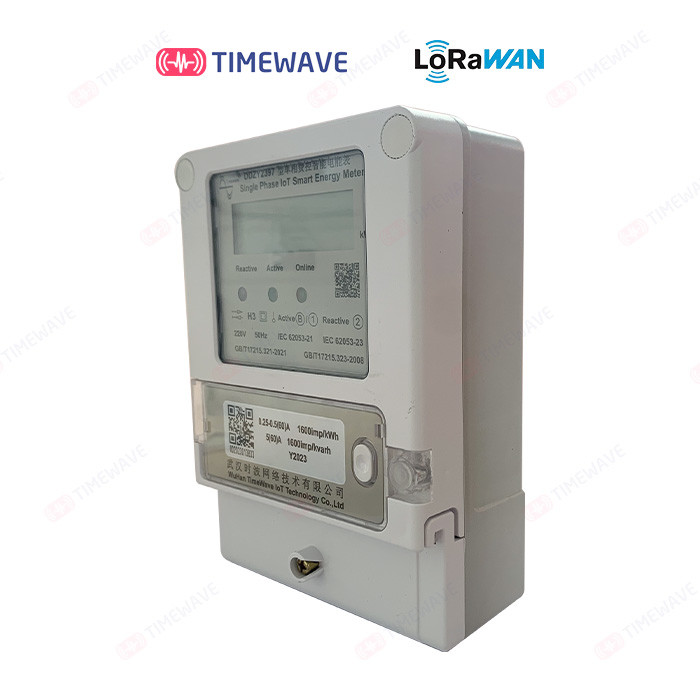

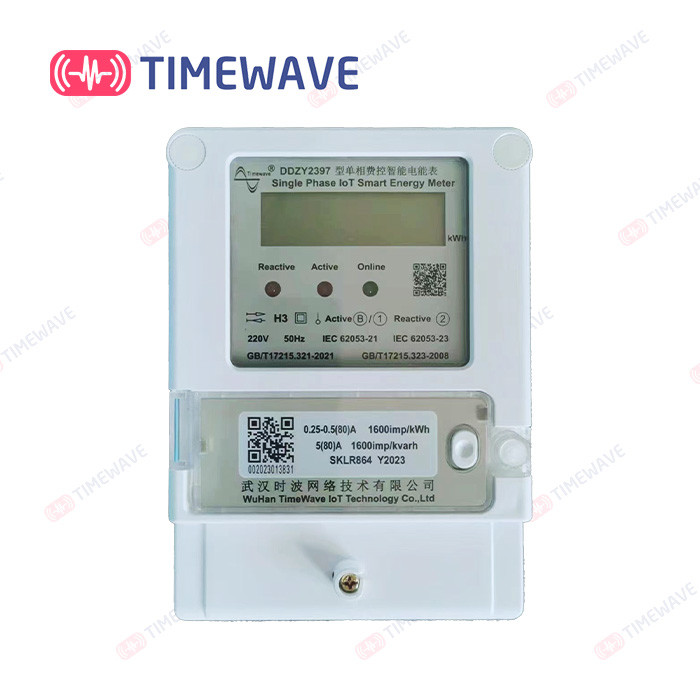

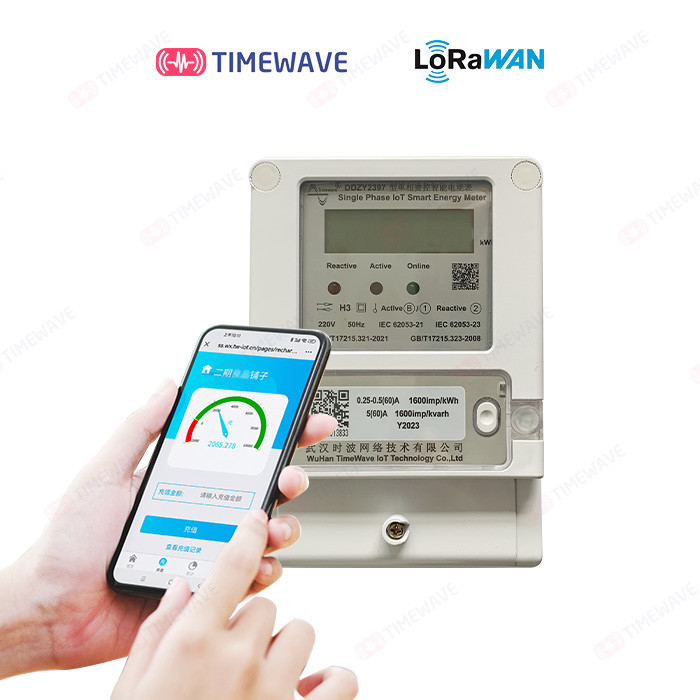

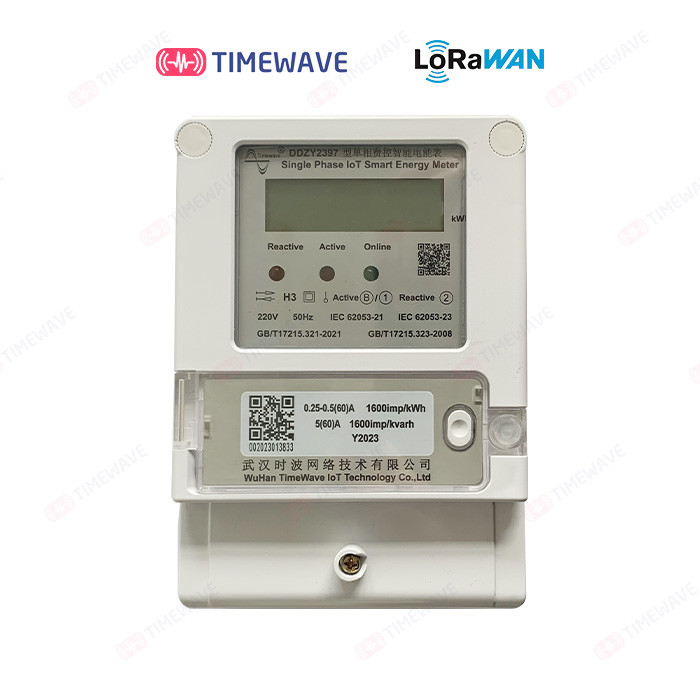

LoRaWAN Single Phase IoT Wireless Electricity Meter DDZY2397
- Product Overview
DDZY2397 single-phase charge control intelligent electric energy meter adopts dedicated large-scale integrated circuit. Apply digital sampling processing technology and SMT technology. It has the characteristics of less peripheral components, simple structure, high reliability, low power consumption, long service life, etc. In addition to the active power metering function, there are many other functions, such as online power display, one-in-two-out dual-control, one-in-two-out three-control and load identification, intelligent anti-theft, overload control, remote centralized meter reading through LoRaWAN/NB-IoT/Cat. 1/Bluetooth wireless network. It can be used to control the power consumption of students or staff apartments. Under the normal operation of air conditioning and other equipment, it can effectively reduce the hidden danger of electricity safety and reduce the waste of electricity.
- Functions and features
1. Double circuit independent measurement of positive and negative active electric energy. The total, main and secondary circuit active electric energy can be set. The electric energy shall be accumulated and stored separately for the electric energy and total electric energy at the tip, peak, flat, valley and other periods. It can store and display various electric quantities in the last 12 months.
2. It can measure, store and display the current voltage, current, power, power factor, frequency and other operating parameters and status of the electric energy meter.
3. Current and power limiting function by time: It has two sets of time limiting meters by time. It can automatically switch according to the switching time of two sets of time limit tables. Each set of timesharing time limit table supports up to 10 timesharing settings. When the current/power is in overrun use and exceeds the overrun use time, switch off and power off. It can be recovered automatically when the time after power failure reaches the power recovery time.
4. Fixed power time limit function: when the ammeter is within a certain power fluctuation range for a long time and exceeds the fixed power threshold, it will be switched off after reaching the fixed power and can be used for a long time. Switch on after reaching the set power supply recovery delay after switching on.
5. Sudden change power limit function: when the power increase value of the ammeter exceeds the power sudden change threshold value during the sudden change period, the switch will be opened. Switch on after reaching the set power supply recovery delay after switching on.
6. There are two sets of rates (Tip, peak, flat and valley) and time periods that can be programmed at will, and another set of rates and time periods can be used at the set time point. At least 2 time zones can be set for each set of rate periods throughout the year. At least 14 time periods can be set within 24 hours; The minimum interval between periods is 15 minutes. The time period can be set across zero points.
7. It has such freezing functions as instantaneous freezing, regular freezing, daily freezing, agreed freezing, and hourly freezing.
8. It has the functions of event recording such as zero clearing, programming, timing, power failure, switching on and switching off.
9. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
10. Active upload/two-way transparent transmission function: actively transmit data to the corresponding platform through LoRaWAN wireless network. The default interval is 4 hours (settable).
11. Comply with the national standard GB/T17215.321-2008/2021. The communication protocol conforms to DL/T645-2007 .
- Specifications & technical parameters
| Packaging | Caron |
| Rated voltage | 220V |
| Working voltage | 80%~120% (rated voltage) |
| Calibration current | 5(60)A/0.25 ～ 0.5(60)A |
| Rated operating frequency | 50Hz/60Hz |
| Pulse constant | 3200imp/kWh |
| Overall power consumption | <1.5W |
| Starting current | ≤0.004IB |
| Overall dimensions | 158mm*112mm*58mm |
| Weight | 0.7KG |
| Working life | >10 years |
| Accuracy | Class 2/Level A,Class 1/Level B |
| Data upload |
By default, data is uploaded
every 4 hours (time can be set)
|
- TRANSPORTATION AND STORAGE
Ammeters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and shall be transported and stored according to GB / T 25480-2010 Basic Environmental Conditions for Instrument Transportation and Storage and Test Methods as stipulated in 2010. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.
- WARRANTY PERIOD AND AFTER-SALES SERVICE
If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.
