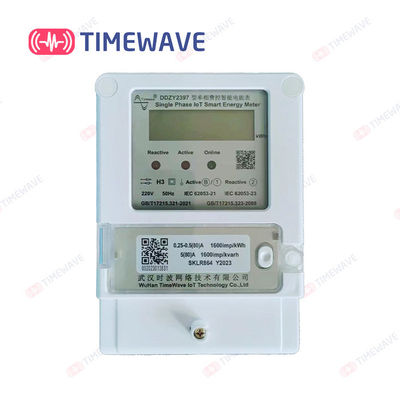

LoRaWAN Single Phase Prepaid Energy Meter 220V Smart Load Identification LCD Screen Real-time Monitor
| Place of Origin | Hubei , China |
|---|---|
| Brand Name | TimeWave |
| Certification | ISO/IEC 20000-1,ISO/IEC 27001,ISO/IEC 9001 |
| Model Number | Type DDZY2397 |
| Minimum Order Quantity | Negotiable |
| Price | EXW price US$ 60-150/ set |
| Packaging Details | Each piece is packed in cartons, with 20 sets in each box |
| Delivery Time | 3-5 weeks after receive the payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 2000 sets per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage Un | 220V | Working Voltage | 80%~120% (rated Voltage) |
|---|---|---|---|
| Calibration Current | 5(60)A/0.25 ～ 0.5(60)A | Accuracy | Class 2/Level A,Class 1/Level B |
| Data Upload | By Default, Data Is Uploaded Every 4 Hours (time Can Be Set) | ||
| High Light | Single Phase Prepaid Energy Meter,220V Prepaid Energy Meter |
||
Product Description
LoRaWAN Single-Phase Load Identification Smart Prepaid Energy Meter LCD Screen Real-time Monitor
- Product Overview
DDZY2397 single-phase charge control intelligent electric energy meter is a fully digital intelligent electric energy meter developed by our company. Adopt SOC high integration chip. In addition to the active electric energy metering function, it also has a variety of functions such as online power display, intelligent power theft prevention, overload control, remote centralized meter reading, etc. The data is transmitted to thecorresponding platform through LoRaWAN/CAT1/Bluetooth wireless network. It has the characteristics of high precision, low power consumption and good stability,and can be widely used in the measurement of single-phase AC power in urban, rural or factory enterprises.
- Highlights:
1. Metering of positive and negative active electric energy. The electric energy shall be accumulated and stored separately for tip,peak, flat, valley and other periods and the total electric energy. It can store and display various electric quantities in the last 12 months.
2. It can measure, store and display the current voltage, current, power, power factor, frequency and other operating parameters and status of the electric energy meter. It has overload protection function.
3. There are two sets of rates (tip, peak, flat and valley) and time periods that can be programmed at will, and another set of rates and time periods can be used at the set time point. At least 2 time zones can be set for each set of rate periods throughout the year.
At least 14 time periods can be set within 24 hours; The minimum interval between periods is 15 minutes. The time period can be set across zero points..
4. It has the functions of event recording such as zero clearing, programming, timing, power failure, switching on and switching off.
5. Remote power off and transmission function: send power off command through RS485 and other communication interfaces to cut off the user's load circuit. Or send the power transmission command to connect the user load circuit.
- Specifications & technical parameters
| Standards | IEC62053-21, IEC62052-11, DL/T645-2007 220 |
| Current(A) | 5(60)A/0.25～0.5(60)A |
| Pulse constant(imp/kWh) | 3200 |
| Active measurement accuracy | Class B/1 |
| Reactive measurement accuracy | Class 2 |
| Frequency | 50Hz |
| Power consumption | ≤1.5W |
| Specified range | 0.9Un ~ 1.1Un |
| Expansion range | 0.8Un ~ 1.15Un |
| Limit range | 0.6Un ~ 1.2Un |
| Specified temperature range | ≤±1s/d |
| Reference temperature(23℃) | ≤±0.5s/d |
| Active power(Class 1) | ≤0.004lb |
| Reactive power(Class 2) | ≤0.005lb |
| Specified working range | -25℃~+60℃ |
| Operating limit range | -40℃~+70℃ |
| Storage and transportation | -40℃~+70℃ |
| Annual average relative humidity | < 75%RH |
| Natural distribution within 30 days of a year | 95%RH |
| Occurs occasionally in other days | 85%RH |
| LoRaWAN frequency | CN470,RU864,IN865,EU868,US/AU915,KR920,AS923.1/2/3/4, Custom Channels |
- Display items
| No. | LCD figure | Meaning |
| 1. |  |
Character that can indicate that: Current, previous month, the previous twelve months cumulative total electricity consumption and electricity consumption at various rates. |
| 2. | |
Data display and the corresponding unit symbol |
| 3. | |
1) In communication 2) Reverse power indication 3) ① ② represents periods sets 1 and 2 4) Undervoltage indication of the battery or supercapacitor voltage 5) Allow the programming status indication 6) Three times of password verification error indication |
| 4. | T1 T2 T3 T4 | Indicates current rate status (tip peak flat valley) |
| 5. | ----ON ----OFF |
----ON is relay state on ----OFF is relay state off |
- TRANSPORTATION AND STORAGE
Ammeters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and shall be transported and stored according to GB / T 25480-2010 Basic Environmental Conditions for Instrument Transportation and Storage and Test Methods as stipulated in 2010. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.
- WARRANTY PERIOD AND AFTER-SALES SERVICE
If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.
