Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution

Place of Origin Hubei, China
Brand Name TimeWave
Certification ISO/IEC 20000-1, ISO/IEC 27001,I SO/IEC 9001
Model Number DDZY2397/DTZY2397
Minimum Order Quantity Negotiable
Price EXW US$ 13.4-80/set
Packaging Details 20pcs/carton
Delivery Time 3-5 weeks after receive the payment
Payment Terms T/T, L/C
Supply Ability 2000 set/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Communication Lorawan/Bluetooth/RS485/4G Installation Method Wall Hanging
Standard IEC62053-21, IEC62052-11, Dl/T645-2007 Phase Single Phase/Three Phase
Control Type Wireless Remote Control Application Civil, Industrial
Transport Packaging Carton
Leave a Message
Product Description

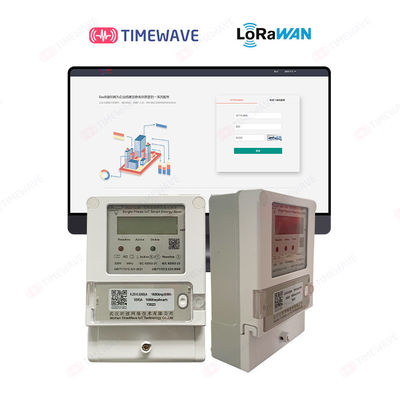

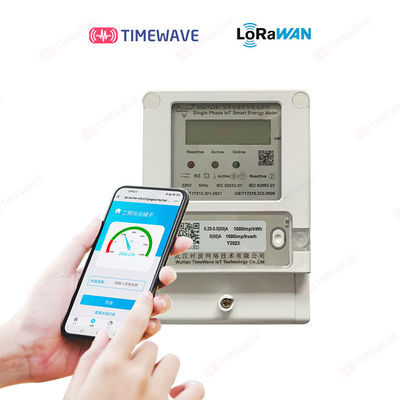

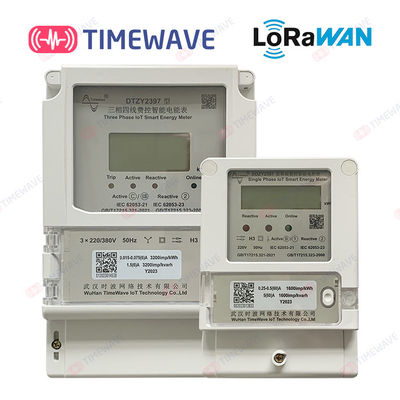

Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 0





Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution



The intelligent electricity meter has the functions of electric energy measurement, power parameter measurement, time-sharing measurement, real-time freezing, on-off control, LoRaWAN and RS485 communication etc. It has the advantages of long communication distance, large capacity, fast and convenient installation, and long service life.



Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 1Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 2Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 3






Our Advantages



1.Measure Forward and Reverse Active Energy: Electrical energy should be accumulated and stored separately for electric energy and total electrical energy at each time period such as tips, peaks, flats, and valleys. And it can also store and display the power of the previous 12 months.

2.It can measure,store and display the voltage, current, power, power factor, frequency and other operating parameters and status of the current electricity meter. And it has overload protection function.

3.There are two sets of rates (sharp, peak, flat, valley) and periods that can be programmed arbitrarily, and another set of rates and periods can be start to used at the set time point. Each set of rate time periods can be set with at least 2 time zones for a year. At least 14 time periods can be set within 24 hours. The minimum time period interval is 15 minutes. The time period can be set across zero points.

4.It has freezing functions such as instantaneous freezing, regular freezing, daily freezing, agreed freezing and hour freezing.

5.It has the function of event recording such as zero clearing, programming, proofread, power down, pulling and closing the brake, etc.

6.Remote disconnection and power transmission function. Power off command is issued through communication interface such as RS485 to cut off the user's load loop; Or issue a power transmission instruction to turn on the user load loop.

7.Active upload / bidirectional transparent transmission function. Actively upload the data to the corresponding platform through the LoRaWAN wireless network, with a default interval of 4 hours (settable).

8.After the meter is powered on and the LoRaWAN module is connected to the network, the meter is automatically calibrated.



And our LoRaWAN electricity can widely used in such scenarios:
a.Residential quarters: smart meter reading, energy-saving management, and prevention of energy waste.

b.Commercial places: saving costs, improving energy efficiency, real-time monitoring.

c.Industrial enterprises: precise measurement, remote monitoring, energy saving and emission reduction.

d.Government agencies: Unify management, reduce operating costs, and improve energy management levels.






Product Paremeters



Single Phase

Qualification Single Phase Direct Meter
Standards IEC62053-21, IEC62052-11, DL/T645-2007
Rated Voltage un 220V
Operating Voltage Range 80% Un ~115% Un
Rated Current Limit ib 5A
Maximum Current: Imax 80A
Starting Current 0.4% Ib
Power Grid Frequency 50Hz
Frequency Range ±2%
Active Measurement Accuracy Class B / 1
Reactive Measurement Accuracy Class 2
Active Pulse Constant 1600(imp/kWh)
Reactive Pulse Constant 1600(imp/kvarh)
Clock Precision ±0.5S/d (23ºC)
Normal Operating Temperature Range -25ºC~+55ºC
Extreme Operating Temperature Range -40ºC~+70ºC
Transportation and Storage Temperature Range -40ºC~+70ºC
Power Dissipation <1.5W ,10VA
The Time that the Blackout Clock Preserves >24h
The RS485 Interface The default 2400bps, 1200bps, 2400bps, 4800bps, and 9600bps are optional
LoraWan Frequency CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,Custom Channels

Three Phase



Qualification Three Phase Direct Table Three Phase CT Table
Standards IEC62053-21, IEC62052-11, DL/T645-2007
Rated Voltage un 3*220/380V 3*220/380V
Operating VoltageRange 80%-115% 80%-115%
Rated Current Limit ib 5A 1.5A
Maximum Current: Imax 100A 6A
Starting Current 0.4% Ib 0,2% Ib
Power Grid Frequency 50Hz 50Hz
Frequency Range ±2% ±2%
Active Measurement Accuracy Level 1 / B Grade 0.5, S / C
Reactive Measurement Accuracy Level 2 Level 2
Active Pulse Constant 400(imp/kWh) 3200(imp/kWh)
Reactive Pulse Constant 400(imp/kvarh) 3200(imp/kvarh)
Clock Precision ±0.5S/d (23ºC) ±0.5S/d (23ºC)
Normal Operating Temperature Range -40°C~+70°C -40°C~+70°C
Extreme Operating Temperature Range -40°C~+70°C -40°C~+70°C
Transportation and Storage Temperature Range -40°C~+70°C -40°C~+70°C
Power Dissipation <1.5W ,10VA >1.5W ,10VA
The time that the blackout clock preserves >24h >24h
The RS485 Interface The Default is 2,400 b p s.1200bps, 2400bps, 4800bps, and 9600bps were available
LoraWan Frequency LoRaWAN:CN470,RU864,IN865,EU868,US/AU915,KR920,AS923_1/2/3/4,Custom Channels



Display Description



Single Phase:

Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 12

LCD full-screen display schematic diagram (as shown above)





The specific display items are listed as follows:



Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 13





Status indicator lamp:
The electricity meter uses a bright, long-life LED as a pulse indicator light.
It has active power pulse indicator light: red, usually go out, flashing when measuring active power.
LoRaWAN/Bluetooth/RS485/Cat.1 Module status indicator: green. Always on indicates online, and flashing indicates going online.


Three Phase:
 Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 14
LCD full-screen display schematic diagram (as shown above)

Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 15

Status indicator lamp
The electricity meter uses a bright, long-life LED as a pulse indicator light.
It has active power pulse indicator light: red, usually go out, flashing when measuring active power.
It has reactive power pulse indicator light: red, usually go out, flashing when measuring active power
Trip indicator light: yellow
. Often out indicates the relay closed state.Often bright indicates the relay off state.
LoraWan/Bluetooth/RS485/Cat. 1 Module status indicator: green. Always on indicates online, and flashing indicates going online.




LoRaWAN Smart Electric Meter: The Future of Electric Management



LoRaWAN (Long Range Wide Area Network) Smart Electric Meters bring several key features to the table, largely due to the specific advantages of the LoRaWAN communication technology itself. Here are some key features:

Long-Range Communication: LoRaWAN has a range of up to 15 kilometers in rural areas, and up to 5 kilometers in urban areas. This makes it perfect for smart meters, especially in areas where meters are spread out over large distances.

Low Power Consumption: LoRaWAN devices consume very little power, which means the smart meters can operate for years without needing a battery replacement. This is crucial in remote areas where regular maintenance may be impractical.

High Capacity: A single LoRaWAN gateway can handle up to thousands of nodes, meaning that a single gateway can receive data from thousands of smart electric meters, making it a cost-effective solution for large scale deployments.

Security: LoRaWAN uses two layers of encryption (unique network, application, and device keys) to ensure that the data being transmitted is secure. This is important in smart meters where privacy and security are key concerns.

Adaptability: LoRaWAN's Adaptive Data Rate (ADR) feature optimizes data rate, airtime, and energy consumption, making it suitable for varying network conditions.

Bi-Directional Communication: Unlike some other technologies, LoRaWAN allows for both uplink (device to server) and downlink (server to device) communications. This enables not just data collection, but also remote control or firmware updates if necessary.

Geolocation: LoRaWAN enables geolocation without additional power consumption, which can be beneficial in certain metering or grid applications.

Interoperability: LoRaWAN is based on open standards, which allows devices from different manufacturers to work together seamlessly. This is crucial for utilities companies who might have meters from different vendors.






Note



INSTALLTION
Live installation of wiring is strictly prohibited!
The electricity meter shall be installed indoors as far as possible. Special instrument box protection shall be used for outdoor installation. The installation bottom plate shall be fixed on the wall with strong fire resistance and not easy to vibration. There must be no corrosive gases in the surrounding air where the meter is installed. Avoid dust, salt spray, etc.
When using the electricity meter, the wiring must be conducted strictly according to the wiring diagram in the tail cover of the meter. It is recommended to use copper wire for the lead connected to the terminal seat. The screws of the fixed lead in the terminal seat should be tightened to avoid burning the electricity meter due to bad contact and heating.


TRANSPORTATION AND STORAGE
Ammeters must be transported and stored under the original packaging conditions. Products shall not be severely impacted during transportation and unpacking, and shall be transported and stored according to GB / T 25480-2010 Basic Environmental Conditions for Instrument Transportation and Storage and Test Methods as stipulated in 2010. The products should be stored in the warehouse and placed on the platform frame. The stacking height shall not exceed five layers. No corrosive gases shall be present in the stored environment.


WARRANTY PERIOD AND AFTER-SALES SERVICE
If the user complies with the transportation, storage and installation operation specifications, and the lead seal of the manufacturer is still complete.If there is a quality problem, our company is responsible for free repair or replacement within 18 months from the date of delivery the electricity meter.
During the whole life cycle of the products, our company implements "three guarantees" for all electricity meter products, providing necessary maintenance and services. Providing equipment wiring diagram and necessary technical documents and drawings. According to the requirements of users, provide necessary training for maintenance personnel and operators. Providing training materials, and update the software regularly and provide free upgrade.
After receiving the service request of the product user, our company will respond within 12 hours.




Company Profile


Wuhan Timewave IoT Technology Co., Ltd. is a high tech enterprise specializing in the application of Low Power Wide Area Network (LPWAN) core technologies to establish an energy monitoring service platform. We provide a one-stop solution and service for our clients, offering metering and communication equipment, software system platforms, project construction, and daily operation and maintenance.

We independently develop and manufacture the "Timewave" brand LPWAN smart energy meters, smart water meters, smart gas meters, and alarm systems, among other communication terminal products. Coupled with the "Timewave Cloud" energy supervision platform, which encompasses metering, meter reading, billing, management, and control of water, electricity, gas, and heat, we can provide and implement automatic meter reading and billing, carbon emission monitoring, safe electricity use, energy consumption analysis, energy-saving analysis, transformer monitoring, data center environment monitoring, and intelligent operation and maintenance. We have a wealth of experience in the practical application of water and electricity meters using LoRaWAN technology.

The "Timewave Cloud" energy supervision platform is widely used in various settings, including campuses, supermarkets, apartments, hospitals, factories, parks, buildings, railways, airports, data centers, and more.We have connected over 200,000 IoT terminals, implemented over 200 projects, and expanded our reach to over 30 provinces and cities across the country. Moreover, we provide operation and maintenance support for ground projects in multiple countries and regions, including Indonesia, Turkmenistan, Laos, North Korea, and Mongolia.

Timewave IoT Technology is committed to solving issues related to difficult meter reading, billing, payment, energy-saving and efficiency improvement, and safe energy use. We aspire to become a leader in the field of energy IoT and energy supervision platforms.

Smart Electric Energy Meter: Single & Three Phase, Lorawan/RS485/4G with Prepaid Remote Control and Ami/AMR Solution 16
